Harsh environmental conditions are a key challenge faced by many electrical application systems during operation. To address this issue, waterproof electrical connectors are specifically designed to ensure the stability of current transmission and the performance of equipment, effectively blocking moisture intrusion. Even under extreme weather conditions such as heavy snow, heavy rainfall, and high humidity, they can still maintain reliable electrical connection performance.
This article will systematically elaborate on the structural composition, working mechanism, IP rating evaluation standards, selection principles, and typical application scenarios of waterproof electrical connectors, providing theoretical and practical references for relevant engineering applications.
I. Definition and Working Principle of Waterproof Electrical Connectors
A waterproof electrical connector is a type of electrical component with a highly sealed structural design. Its core function is to establish a stable electrical connection between devices and block external moisture from invading the connection interface through the synergistic effect of structure and materials, avoiding interference with the current transmission process.
From the perspective of structural design, industrial-grade waterproof electrical connectors generally integrate sealing components such as compression gaskets or rubber O-rings. These sealing components form an interference fit with the metal mounting panel or the mating part of the connector, constructing the primary sealing protection structure.
In terms of material selection, the sealing components are usually made of rubber or silicone. Such materials have both excellent electrical insulation performance and sealing characteristics. While achieving electrical isolation, they can provide reliable waterproof protection for the core conductive components inside the connector, preventing the intrusion of liquid water and moisture.
In application scenarios, high-performance outdoor waterproof electrical connectors are mainly suitable for electrical systems in fields such as marine engineering and transportation. The cables in these fields are often exposed to high humidity, high salt spray, or short-term immersion environments for a long time, which puts forward strict requirements on the waterproof performance of the connectors.
II. Technical Interpretation of IP Rating for Waterproof Electrical Connectors
IP (Ingress Protection) rating is a core technical indicator for the selection of waterproof connectors. Accurately determining the IP rating is of great significance for ensuring the stable operation of electrical systems and reducing equipment maintenance costs.
The evaluation of IP rating follows the IEC 60529 international standard. This standard uses a two-digit code to quantitatively evaluate the ability of the equipment enclosure to resist the intrusion of solid particles (such as dust) and liquid media (such as water).
The coding rules are clear: the first digit indicates the protection level of the enclosure against solid particles, covering the entry and accumulation of dust; the second digit indicates the protection level of the enclosure against liquid media, covering all working conditions such as water splashing, spraying, immersion, and high-pressure jetting.
For waterproof connectors, high-level protection certifications such as IP67, IP68, and IP69K are key technical guarantees for their adaptation to harsh environments:
- IP67: Achieves complete dustproof level, and can withstand continuous immersion in 1-meter water depth for 30 minutes without harmful intrusion;
- IP68: Its protective performance is superior to IP67, and it can withstand deeper water pressure and longer immersion time. Specific parameters shall be subject to the technical specifications provided by the manufacturer.
In the selection of connectors for harsh environments, the matching of IP rating is crucial. Insufficient protection level will directly lead to corrosion of internal components of the connector, interruption of signal transmission, and even functional failure of the entire electrical system.
(I) Key Technical Points for the Application of IP Rating
Important Technical Note
The effectiveness of the IP rating of waterproof electrical connectors is usually based on the fully mated working condition of the connector. Only when the male and female ends of the connector are accurately docked and locked can the marked dustproof and waterproof performance be fully exerted.
If the connector is in a disconnected or incompletely mated state, the sealing structure will lose its function, and the internal conductive contact interface will be directly exposed to the external environment, facing the risk of moisture and particle erosion.
To address this technical pain point, most manufacturers have developed supporting protective accessories such as sealing caps and dust caps. These accessories can seal the port of the unmated connector to ensure its protective performance in the idle state.

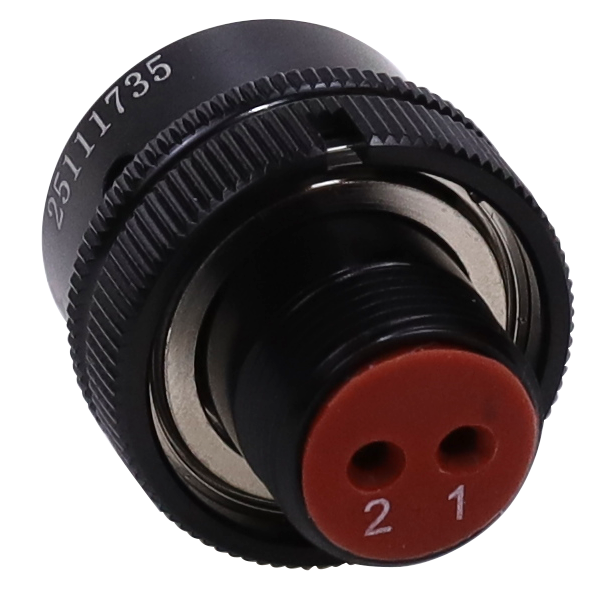

At present, some high-end circular connector series have achieved IP protection capability in both mated and unmated states through special structural design, but this feature has not yet become an industry universal standard. In engineering applications, it is necessary to strictly refer to the product technical manual provided by the manufacturer to confirm the protective performance parameters of the connector under different working conditions.
III. Core Selection Criteria for Waterproof Electrical Connectors
(I) Compatibility with Equipment and Application Scenarios
The selection of connectors must be highly matched with the electrical parameters of the target equipment and the environmental conditions of the application scenario. Different application fields have significant differences in the performance index requirements of connectors.
Taking typical application scenarios as examples: connectors for outdoor lighting and LED display systems need to have weather resistance and temperature alternation resistance; connectors for marine electronic systems need to additionally meet the technical requirements of seawater corrosion resistance.
In the selection process, “waterproof” should not be the only criterion. It is necessary to comprehensively consider the core electrical parameters of the connector such as rated voltage, rated current, and contact resistance, as well as environmental adaptability indicators such as impact resistance, vibration resistance, and chemical corrosion resistance. Mismatched connectors will not only lead to equipment operation failures but also may cause electrical safety hazards.
(II) Accurate Matching of IP Rating
As mentioned earlier, the IP rating directly determines the environmental adaptability of the connector. In application scenarios with high humidity, high dust, or immersion risks, ignoring the selection principle of IP rating will significantly increase the equipment failure rate and operation and maintenance costs.
Selection suggestions are as follows: Based on the actual environmental risks of the application scenario, clarify the contact form and intensity of the liquid medium, and then select the connector product with the corresponding protection level. At the same time, it is necessary to rely on the official technical parameters provided by the manufacturer to ensure that the product’s protective performance meets the requirements of engineering applications.
(III) Scientificity of Material and Structural Design
The material selection and structural design of modern waterproof electrical connectors need to take into account electrical performance, mechanical performance, and environmental adaptability:
- Plastic shell connectors: Made of high-strength engineering plastics, they have the advantages of light weight, controllable cost, and chemical corrosion resistance, and are suitable for mild environmental conditions; however, long-term exposure to ultraviolet radiation or extreme temperature environments may lead to material aging and decreased mechanical strength.

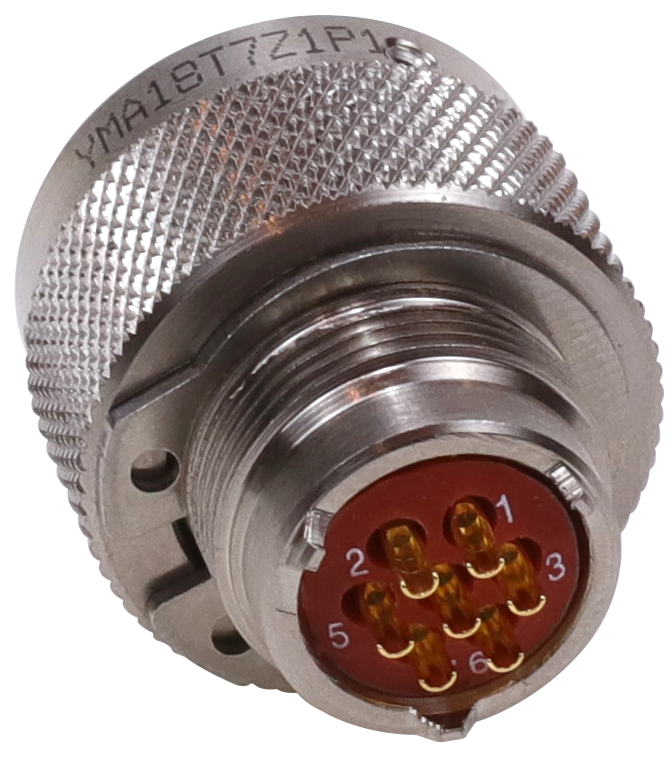

- Metal shell connectors: Made of metal materials such as stainless steel and aluminum alloy, supplemented by anti-corrosion coating treatment, they have the characteristics of high mechanical strength and strong corrosion resistance, and are suitable for high-load application scenarios such as marine engineering and heavy industry.
(IV) Compliance Verification of Industry Standards
Before selecting waterproof electrical connectors, it is necessary to clarify the industry standards and technical specifications of the application field and verify whether the product meets the relevant certification requirements. Authoritative certification systems such as UL certification, ISO certification, and CE certification indicate that the product has passed strict performance tests and safety evaluations and has reliable quality assurance.
IV. Core Technical Characteristics of Waterproof Electrical Connectors
(I) Excellent Electrical Performance
The design of waterproof electrical connectors needs to maintain stable electrical performance while ensuring high sealing. Its core technical goal is to achieve low contact resistance and efficient conductivity in harsh environments.
Gold-plated contacts are a mainstream technical configuration of waterproof connectors. The gold layer has excellent oxidation resistance and conductivity, which can effectively reduce contact resistance and improve the long-term reliability of electrical connections, especially suitable for low-current and high-precision signal transmission scenarios.
In addition, connectors generally integrate multiple safety locking mechanisms, including push-pull, bayonet, threaded, snap-on, twist-lock and other designs; at the same time, a keyed design is adopted to effectively prevent accidental disconnection and incorrect insertion of the connector, ensuring the accuracy and stability of the connection.
(II) Reliable Material System
The material selection of waterproof electrical connectors needs to meet technical requirements such as corrosion resistance, ultraviolet resistance, and extreme temperature resistance. Its core components are usually made of high-strength engineering plastics and metal materials with anti-corrosion coating on the surface. The shell of some connectors is made of high-performance materials such as high-strength engineering plastics, stainless steel, or thermoplastic elastomers, which can withstand the action of complex environmental stresses.
The application of the above material system can not only achieve reliable waterproof protection but also significantly extend the service life of the connector under harsh working conditions.
V. Typical Application Fields of Waterproof Electrical Connectors
(I) Industrial Automation Field
In industrial automation systems, the reliability of electrical connections directly determines the operating efficiency of the production line. Minor connection failures may cause data transmission interruptions in core equipment such as Programmable Logic Controllers (PLCs), robot systems, and Distributed Control Systems (DCSs), thereby leading to production line shutdowns.
Waterproof connectors can maintain stable signal transmission performance under working conditions with high dust, high humidity, and frequent flushing. They provide reliable electrical connection guarantees for key equipment such as conveyor systems and sensor networks, ensuring the accuracy of monitoring parameters such as temperature, pressure, and displacement, and realizing the continuous and stable operation of industrial automation systems.
(II) Medical Equipment Field
Medical devices such as medical displays, nursing trolleys, and rehabilitation therapy equipment generally have the characteristics of mobility, and their electrical connection parts are at risk of contact with liquid media such as disinfectants and normal saline.
Waterproof connectors can ensure the stable electrical performance of these medical devices even under working conditions of repeated disinfection and contact with liquid media. At the same time, such connectors adopt a compact structural design, which can be flexibly integrated into various medical devices without affecting the functionality and safety of the devices.
(III) Lighting and Electronic Equipment Field
Outdoor LED display systems are a typical application scenario of waterproof connectors. Such systems are exposed to the outdoor environment for a long time. Waterproof connectors can ensure the stable transmission of power supply lines and control signals in harsh weather such as rain and snow, ensuring the normal operation of the display system.
In addition, waterproof connectors are also widely used in lighting systems with strict protection requirements such as marine lighting systems, operating room-specific lighting equipment, and rail transit vehicle lighting systems.
VI. Conclusion
The selection of waterproof electrical connectors must return to the core needs of engineering applications: in harsh environments, can the reliability, safety, and operating performance of the electrical system be irreplaceable?
The value of waterproof electrical connectors is not only reflected in protecting the system from environmental threats such as moisture and dust but also in improving the operating efficiency of the electrical system and reducing long-term operation and maintenance costs through optimized structural design and material selection.
