socket
16、 18、20、22、24、27、30、33、36、39

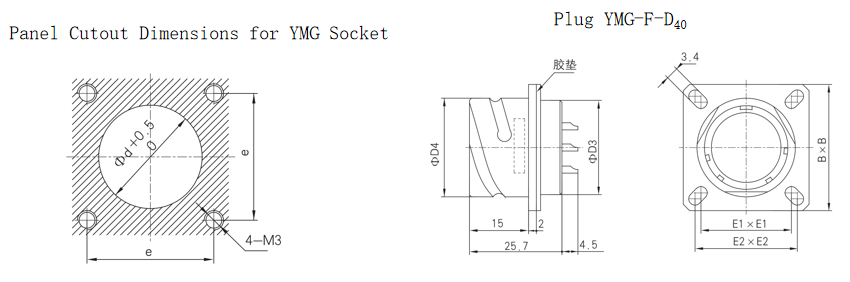

Overall Dimensions
| shell size | D1 | D2 | D3 | D4 | B | E1 | E2 | d | e |
| 16 | 24.0 | M16x1 | 16 | 17.2 | 25.0 | 16.0 | 19.0 | 16.5 | 16.0-18.0 |
| 18 | 26.0 | M18x1 | 18 | 19.2 | 27.0 | 18.0 | 21.5 | 19.5 | 18.0-21.5 |
| 20 | 28.0 | M20x1 | 20 | 21.2 | 28.0 | 20.0 | 22.5 | 20.5 | 20.0-22.5 |
| 22 | 30.0 | M22x1 | 22 | 23.2 | 30.0 | 21.0 | 24.0 | 22.5 | 21.0-24.0 |
| 24 | 32.0 | M24x1 | 24 | 25.2 | 32.0 | 23.0 | 26.0 | 24.5 | 23.0-26.0 |
| 27 | 35.0 | M27x1 | 27 | 28.2 | 34.5 | 25.0 | 28.0 | 27.5 | 25.0-28.0 |
| 30 | 38.0 | M30x1 | 30 | 31.2 | 36.0 | 27.0 | 30.5 | 30.5 | 27.0-30.5 |
| 33 | 41.0 | M33x1 | 33 | 34.2 | 39.0 | 29.0 | 32.0 | 33.5 | 29.0-32.0 |
| 36 | 44.0 | M36x1 | 36 | 37.2 | 42.0 | 32.0 | 35.0 | 36.5 | 32.0-35.0 |
| 39 | 47.0 | M38x1 | 39 | 40.2 | 45.0 | 35.0 | 38.0 | 39.5 | 35.0-38.0 |
