socket

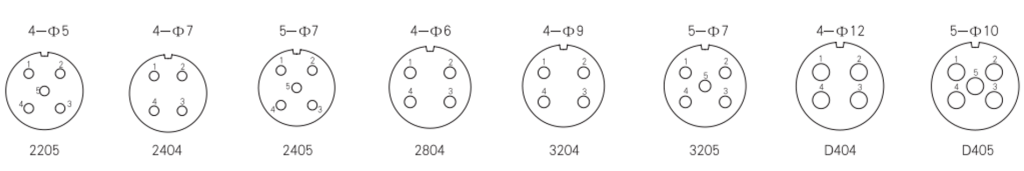

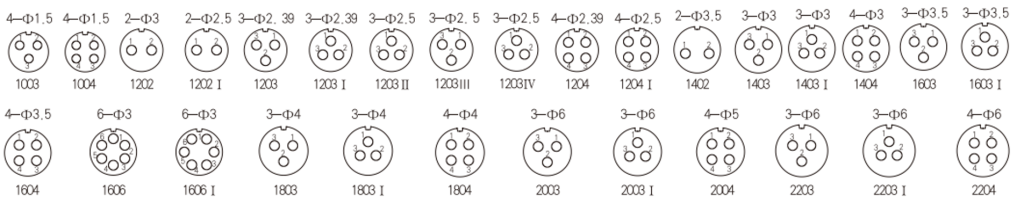

Contact Arrangement (Viewed from the Pin Side)

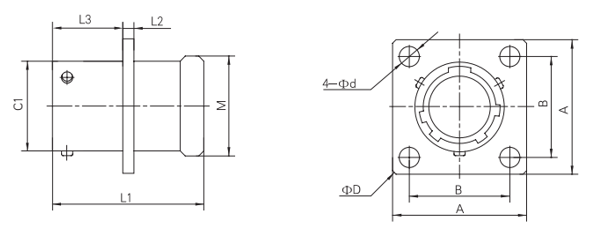

The overall dimensions, mounting dimensions, and cable outlet diameter corresponding to the Y50DX series are the same as those of the Y50X series.
| shell size | L1 | L2 | L3 | C1 | M | A | B | d | D |
| 28 | 33.2 | 2.5 | 12.5 | 45.3 | 46 | 50 | 41 | 5.2 | 67 |
| 32 | 28.5 | 2.5 | 12.5 | 50 | 50 | 57.5 | 47 | 5.2 | 76 |
| D4 | 70 | 6 | 30 | 70 | 70 | 80 | 60 | 6.5 | 110 |
Please contact us for more information about this product.
