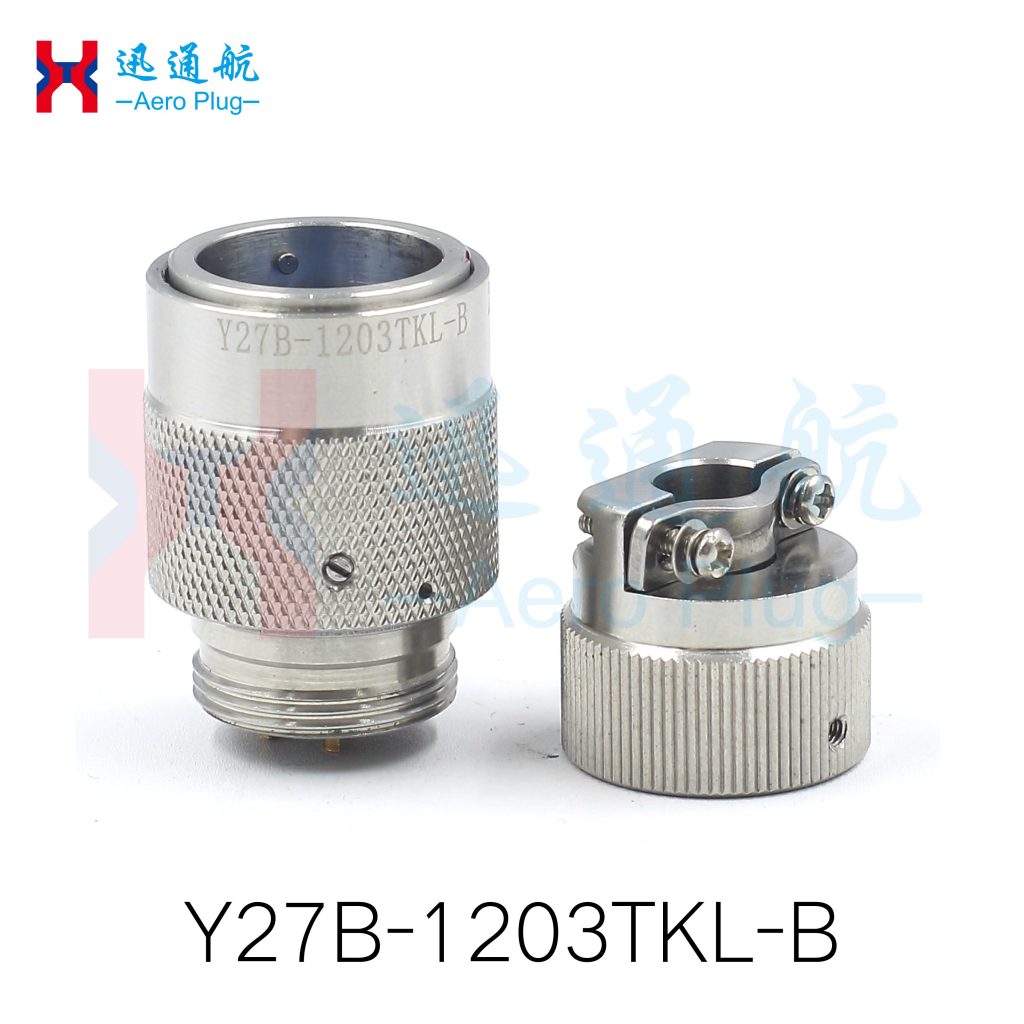

Type:Metric series：B
Shell number:08、 10、 12、 14、 16、 18、20、22、24、26、28、30

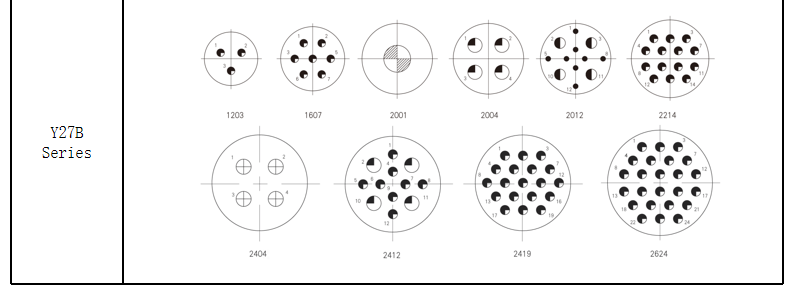

Contact Arrangement (Viewed from the Socket Face)
Overall and Mounting Dimensions of Square Flange-Mounted Rubber-Sealed Socket
Y27B Series (Mounting Type: B)
| shell size | D | S | ΦD1 | Φd | E | L | L1 | L2 | L3max |
| 12 | 24 | 18 | 18.5 | 3.6 | 3.6 | 27 | 16 | 5 | 2 |
| 16 | 27 | 21 | 22.5 | 3.6 | 3.6 | 27 | 16 | 5 | 2 |
| 20 | 32 | 26 | 27.5 | 3.6 | 3.6 | 27 | 16 | 5 | 7 |
| 22 | 35 | 27 | 30.2 | 3.6 | 3.6 | 27 | 16 | 5 | 2 |
| 24 | 42 | 33 | 33.5 | 5.5 | 2.2 | 27 | 16 | 6 | 5 |
| 26 | 42 | 32 | 36.5 | 3.6 | 2.2 | 27 | 16 | 6 | 2 |
