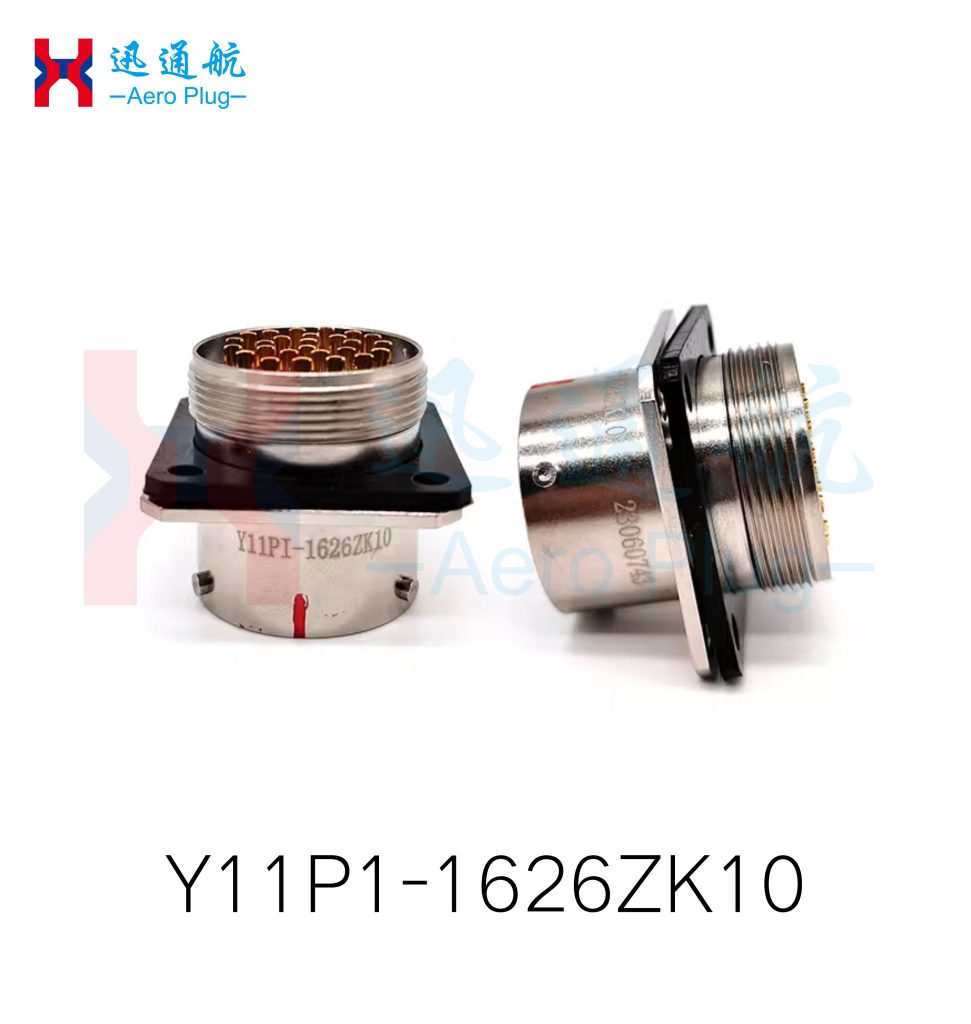

P1-Electroless Nickel Plated Shielded Potted Type
Square Flange Socket

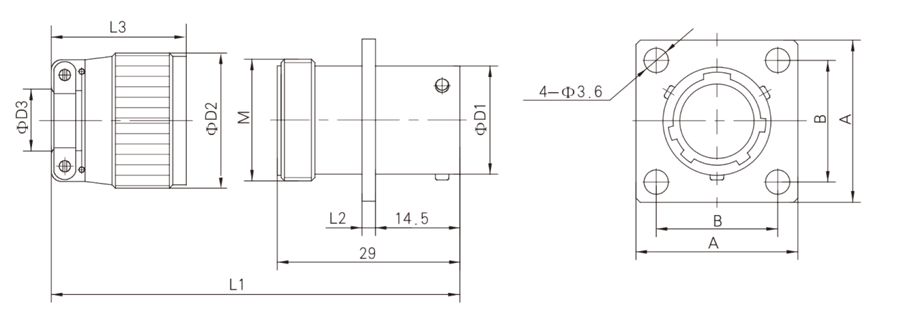

| shell size | A | B±0.15 | D1 | D2 | D3 | M | L1±2 | L2 | L3 |
| 08 | 21 | 15 | 13 | 17 | 6 | M14x1 | 41.5 | 1.5 | 20 |
| 10 | 24 | 18 | 16 | 20 | 8 | M18x1 | 41.5 | 1.5 | 20 |
| 12 | 27 | 21 | 20 | 22.5 | 10 | M20x1 | 43.5 | 1.5 | 22 |
| 14 | 30 | 23 | 23 | 26.5 | 12 | M24x1 | 49.5 | 1.5 | 28 |
| 16 | 33 | 25 | 26 | 29.5 | 14 | M27x1 | 49.5 | 1.5 | 28 |
| 18 | 36 | 27 | 29 | 32.5 | 17 | M30x1 | 49.5 | 1.5 | 28 |
| 20 | 39 | 29 | 32 | 35.5 | 20 | M33x1.5 | 51 | 2.2 | 30 |
| 22 | 42 | 32 | 35 | 38.5 | 24 | M36x1.5 | 51 | 2.2 | 30 |
| 24 | 45 | 35 | 38 | 41.5 | 27 | M39x1.5 | 55 | 2.2 | 35 |
Please contact us for more information about this product.
