12、 14、 18、22、24、27、30、33、36
XCF Socket

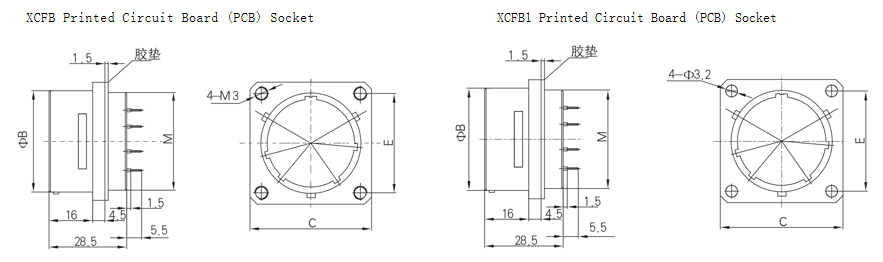

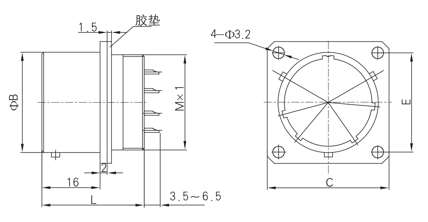

Recommended Cut-out Dimensions for the XCF Socket Panel
| shell size | A | B | C | D | E | M | L |
| 12 | 19.5 | 13.7 | 23.0 | 12.5 | 17.0 | 12 | 25.5 |
| 14 | 21.5 | 15.7 | 25.0 | 14.5 | 19.0 | 14 | |
| 18 | 25.5 | 19.7 | 27.5 | 18.5 | 21.5 | 18 | |
| 22 | 29.5 | 23.7 | 30.0 | 22.5 | 24.0 | 22 | |
| 24 | 31.5 | 25.7 | 32.0 | 24.5 | 26.0 | 24 | |
| 27 | 34.5 | 28.7 | 34.5 | 27.5 | 28.0 | 27 | 28.5 |
| 30 | 37.5 | 31.7 | 36.5 | 30.5 | 30.0 | 30 | |
| 33 | 40.5 | 34.7 | 39.5 | 33.5 | 32.5 | 33 | |
| 36 | 43.5 | 37.7 | 41.0 | 36.5 | 34.0 | 36 |
