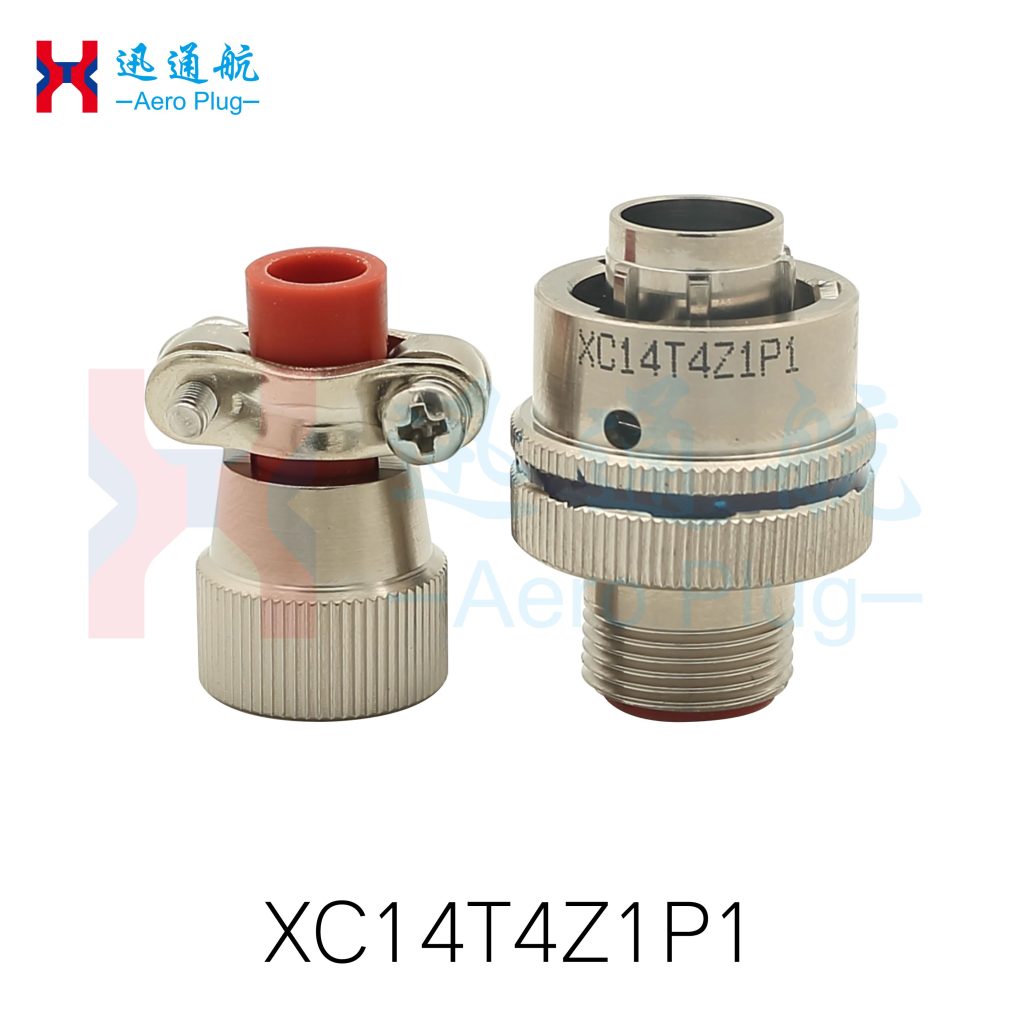

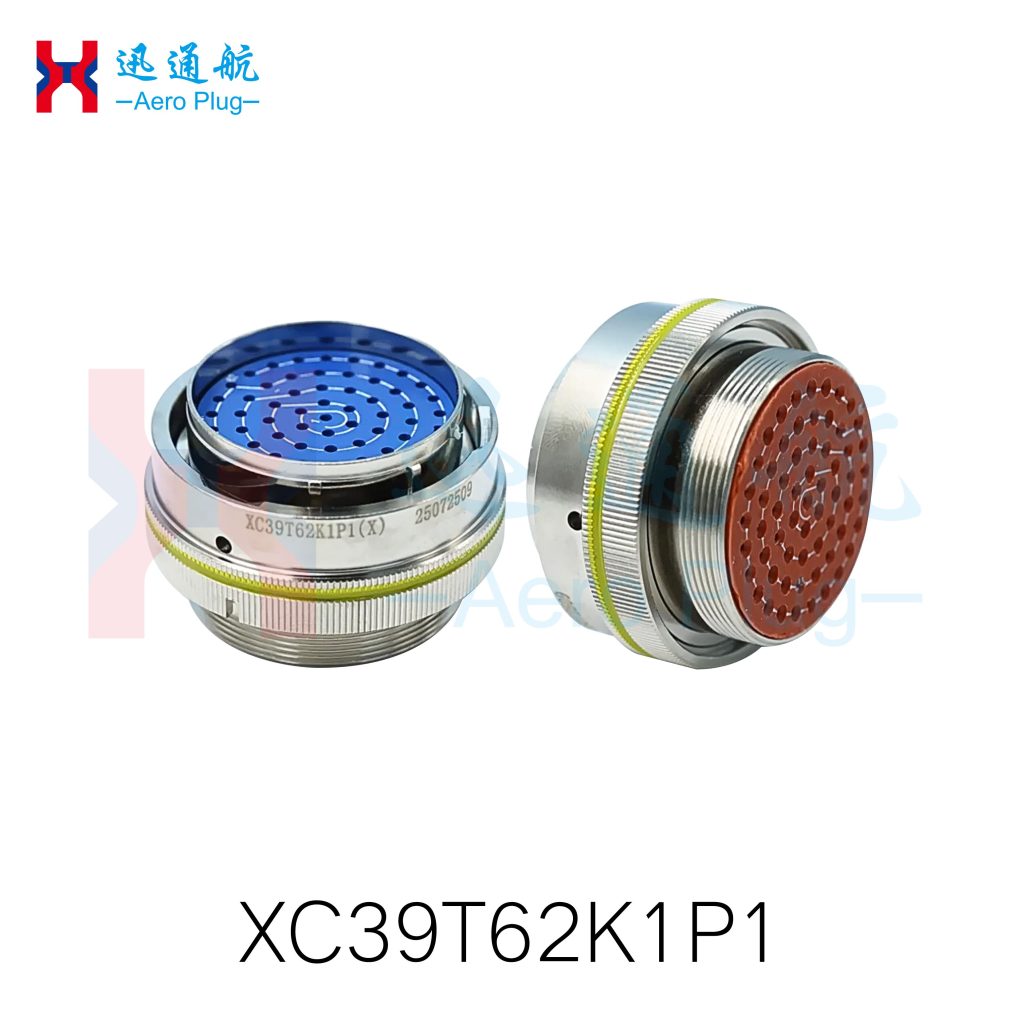

XC Series Circular Connectors

XC Series Circular Connectors

XC Series Circular Connectors

plug

Product Categories

Product Description

14、18、22、24、27、30 、33、36、39

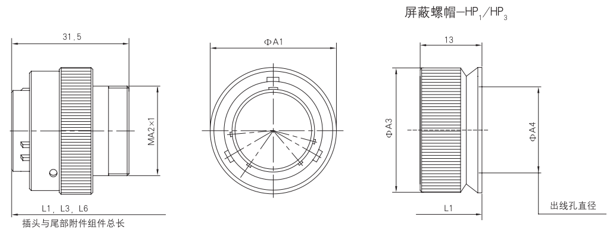

XC Series Plugs and Rear Accessories

shell size	14	18	22	24	27	30	33	36	39
A1	24	28	32	34	37	40	43	46	49
A2	14	18	22	24	27	30	33	36	39
A3	18	22	26	28	31	34	37	40	43
A4	10	14	18	20	23	26	29	32	35
L1	39.5	39.5	39.5	39.5	39.5	39.5	39.5	39.5	39.5
A5	16	20	24	26	29	33	36	39	42
A6min	5.5	8.5	8.5	10.5	10.5	15	15	21	21
A6max	8	13	13	18	18	23	23	28	28
F	22	27	27	32	32	37	37	42	42
L2	22	22	25	25	25	30	30	30	30
L3	48.5	48.5	51.5	51.5	51.5	56.5	56.5	56.5	56.5
A7	22	26	30	32	35	38	40	44	46
A8min	5	8	8	10	10	14	14	20	20
A8max	11	15	19	21	24	26	29	32	35
L4	37.5	39.5	41.5	45.5	45.5	53.5	53.5	55.5	55.5
L5	21	23	25	26	27.5	29.5	31	32.5	34
L6max	63.5	65.5	69.5	71.5	71.5	79.5	79.5	81.5	81.5
