OHS-4、7、10、19、32、50B(Socket)

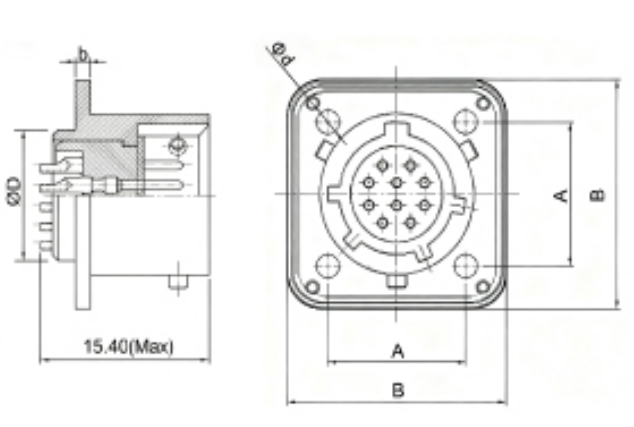

Shape and installation dimensions
| shell size | size mm | ||||
| D | d | A | B | b | |
| 10 | 10 | 2.2 | 11.8 | 20 | 1.4 |
| 12 | 12 | 2.2 | 13.2 | 21 | 1.4 |
| 14 | 14 | 2.2 | 15 | 24 | 1.4 |
| 18 | 18 | 2.2 | 18 | 27 | 1.4 |
| 22 | 22 | 2.7 | 21.5 | 31 | 1.4 |
| 27 | 27 | 3.2 | 26 | 36 | 1.4 |

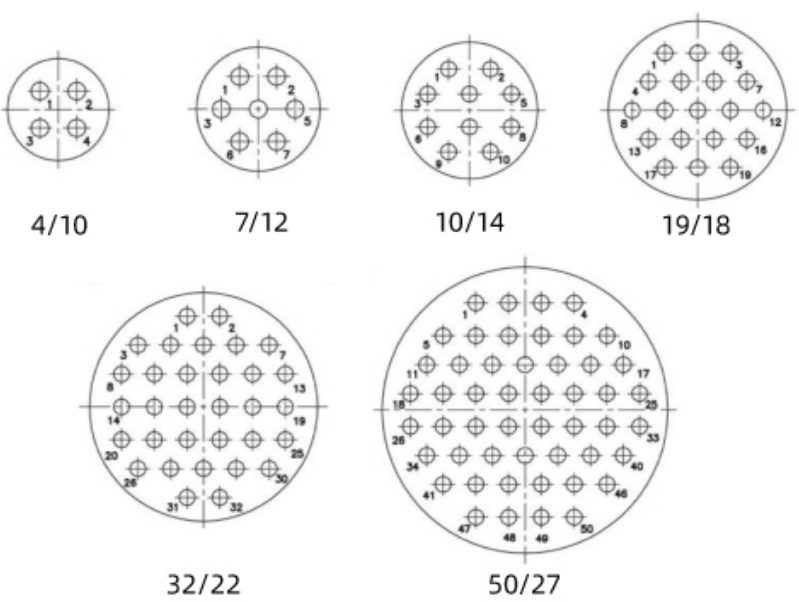

Hole arrangement and installation dimensions
Please contact us for more information about this product.
