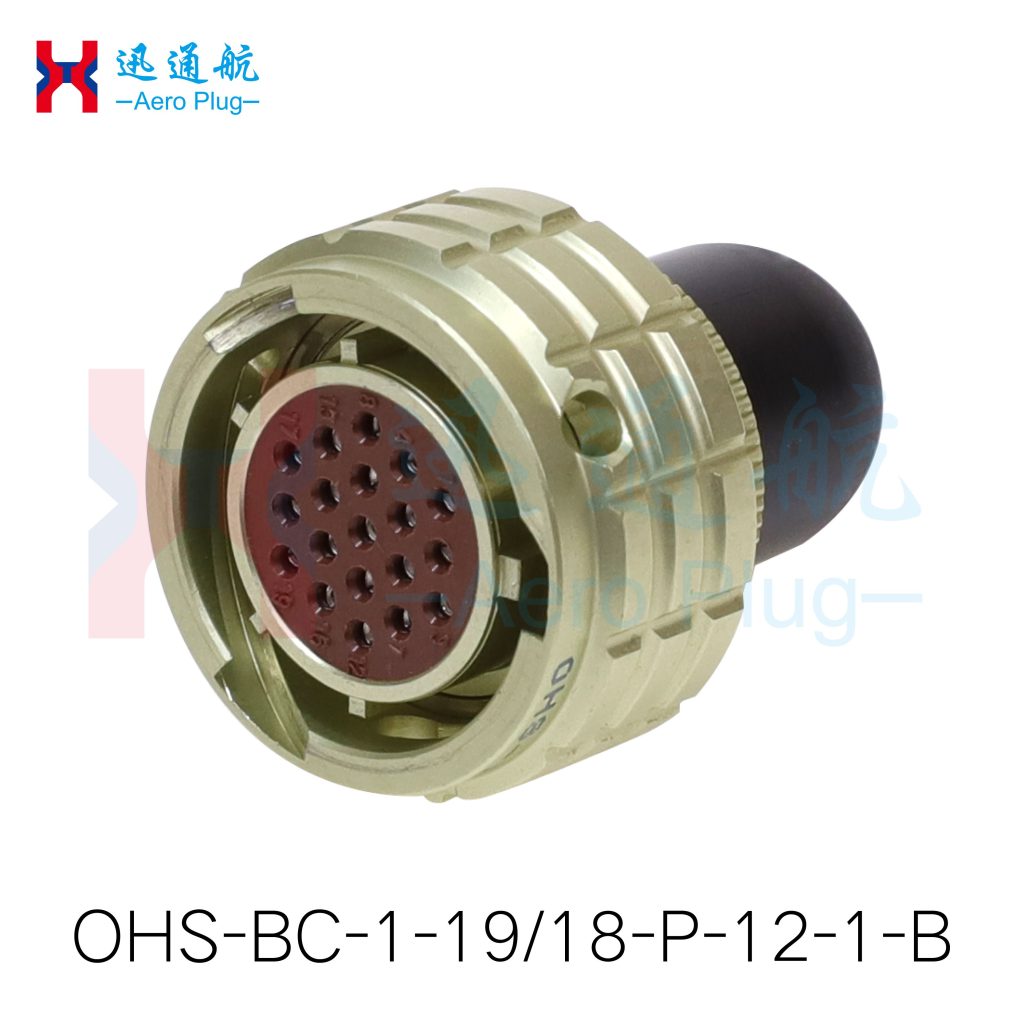

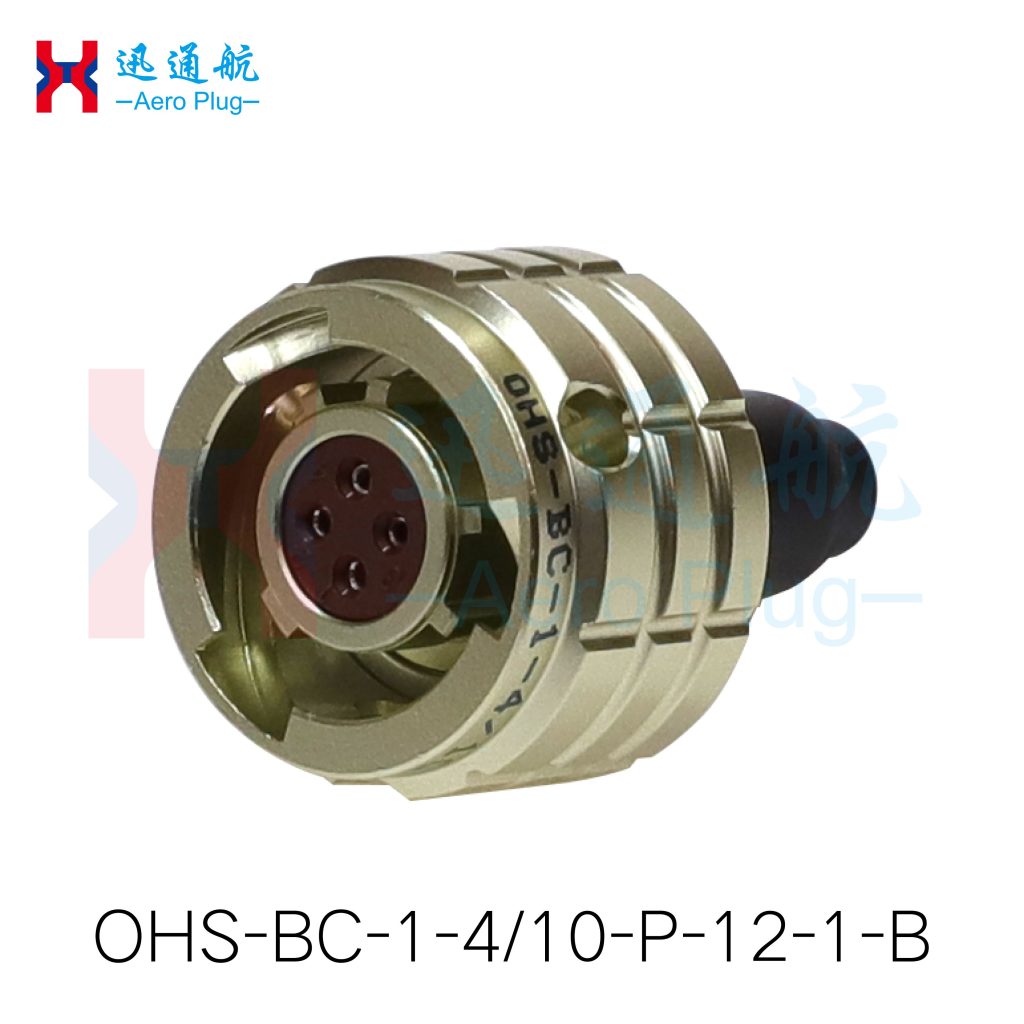

OHS-4、7、10、19、32、50P (Plug)

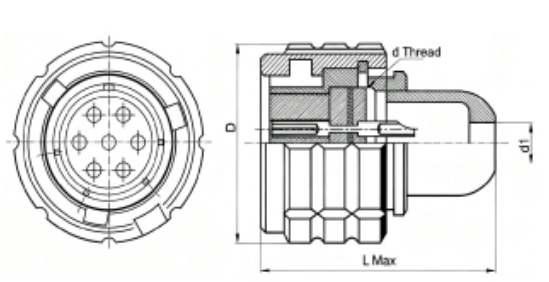

Shape and installation dimensions
| shell size | size mm | |||
| ФD | d | Фd1 | LmAX | |
| 10 | 20 | M10 X 0.75 | 4.5 | 30 |
| 12 | 21 | M12 X 0.75 | 6 | 31 |
| 14 | 24 | M14 X 0.75 | 7 | 32 |
| 18 | 27 | Ml8 X 0.75 | 9.2 | 33 |
| 22 | 31 | M22 X 0.75 | 11 | 34 |
| 27 | 36 | M27 X 0.75 | 13 | 36 |

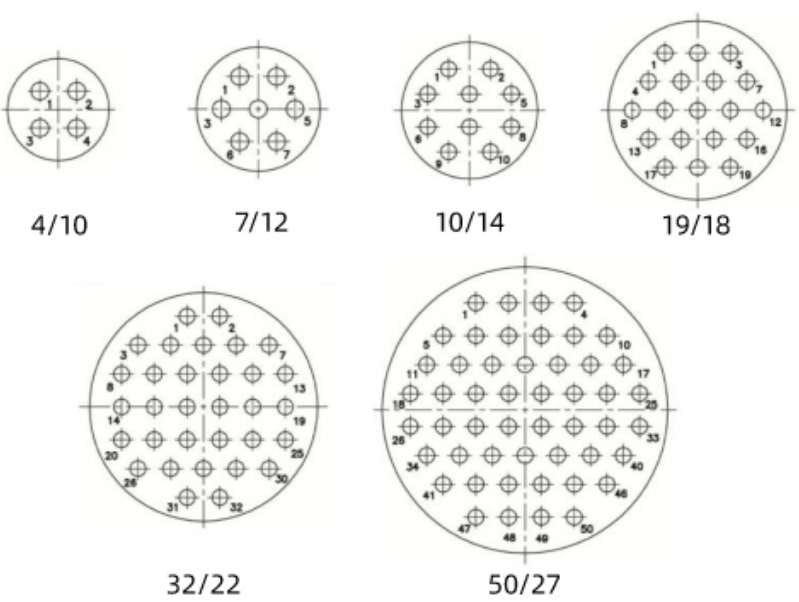

Hole arrangement and installation dimensions
