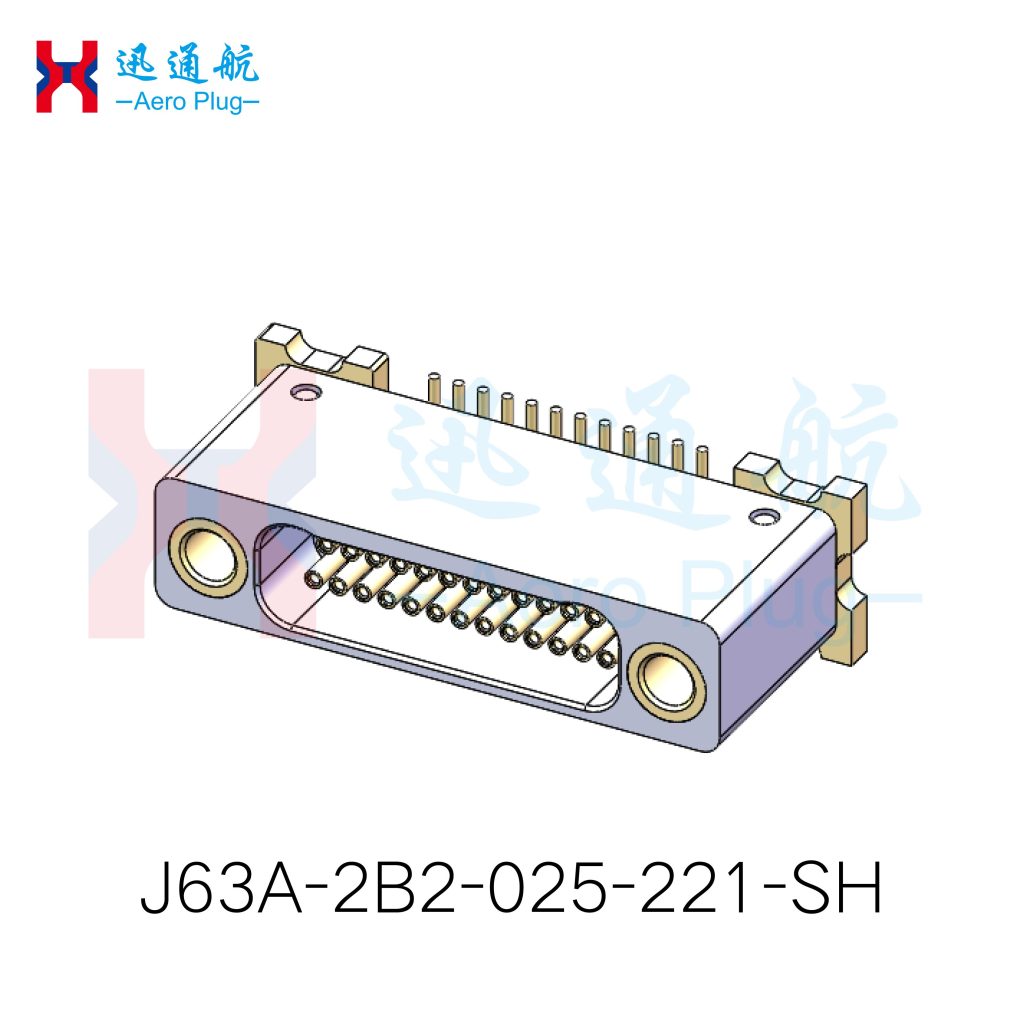

J63A-2B2-025-221-SH
Product features：
The product is suitable for use on printed circuit boards where installation holes cannot be made and is welded using SMT technology.
Connect J63A-2B2-025-221-SH to the plug with a guide column
The pins are soft and prone to deformation. They need to be protected when in use.

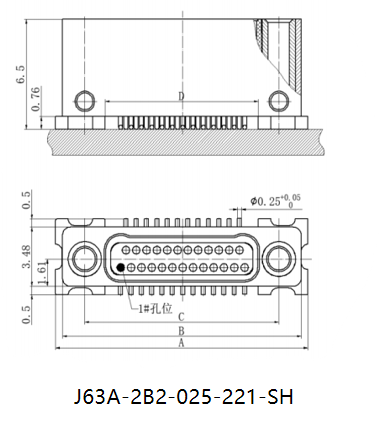

The overall dimensions of this series：
| Specification and model | Size | Specification and model | Size | ||||||
| A | B | C | D | A | B | C | D | ||

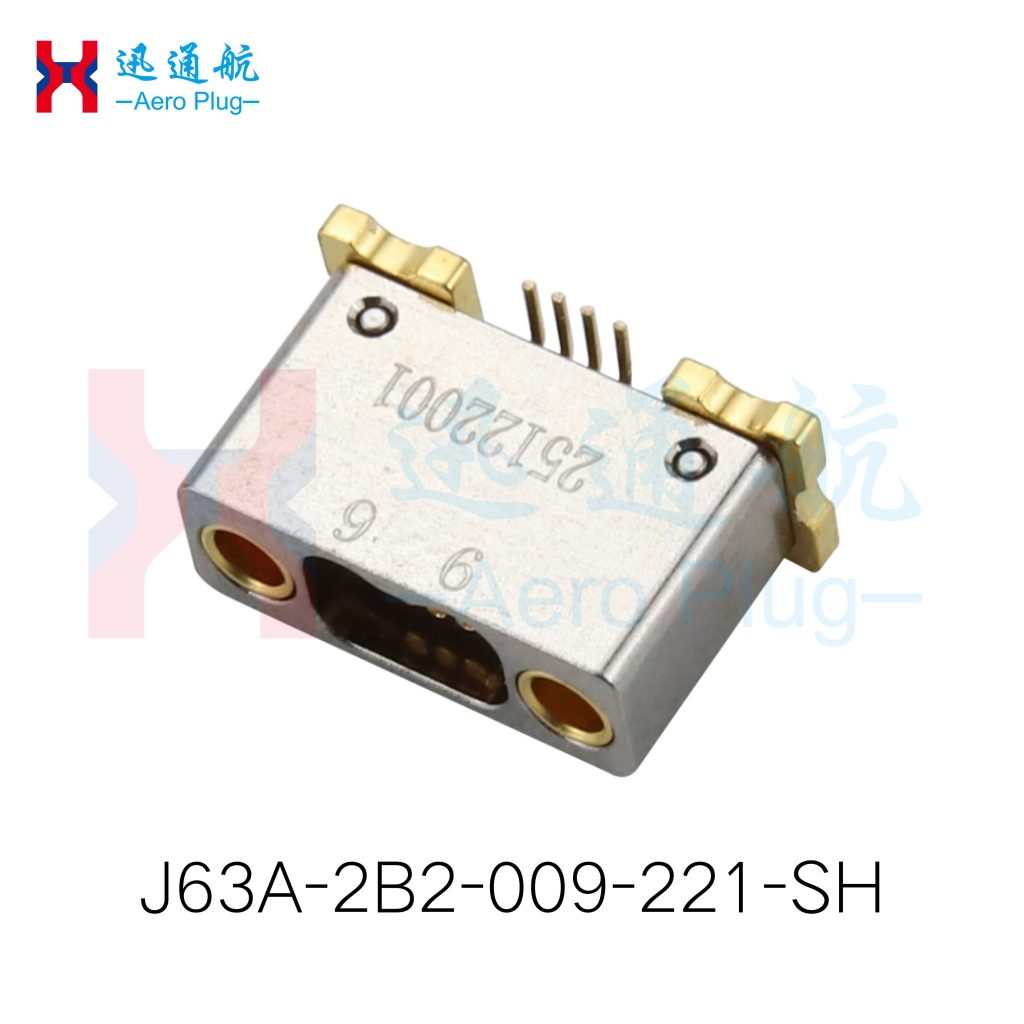

| J63A-2B2-009-221-TH1/SH | 10.46 | 9.63 | 6.86 | 4.46 | J63A-2B2-037-221-TH1/SH | 19.35 | 18.52 | 15.75 | 13.35 |
| J63A-2B2-015-221-TH1/SH | 12.36 | 11.53 | 8.76 | 6.36 | J63A-2B2-051-221-TH1/SH | 23.79 | 22.96 | 20.19 | 17.79 |
| J63A-2B2-021-221-TH1/SH | 14.27 | 13.44 | 10.67 | 8.27 | J63A-2B2-065-221-TH1/SH | 28.24 | 27.41 | 24.64 | 22.24 |
| J63A-2B2-025-221-TH1/SH | 15.54 | 14.71 | 11.94 | 9.54 | J63A-2B2-069-221-TH1/SH | 29.51 | 28.8 | 25.91 | 23.51 |
| J63A-2B2-031-221-TH1/SH | 17.44 | 16.61 | 13.84 | 11.94 | |||||
Please contact us for more information about this product.
