J63A-222-009-261-TH
Product features：
The connecting nut is of a through thread structure. The front thread is used for locking with the locking screw, and the rear thread is used for installation. Connect with the plug with a locking screw.

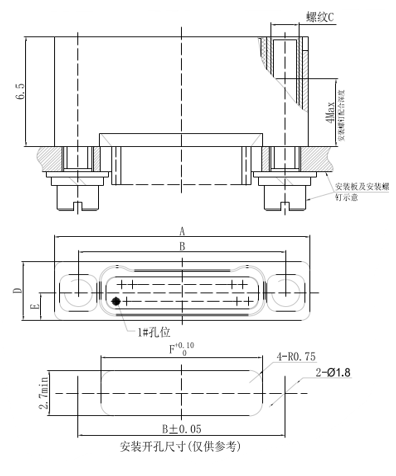

The overall dimensions of this series：
| Model Number | size | |
| A | B | |
| J63A-222-009-261-JC | 9.63 | 6.86 |
| J63A-222-015-261-JC | 11.53 | 8.76 |
| J63A-222-021-261-JC | 13.44 | 10.67 |
| J63A-222-025-261-JC | 14.71 | 11.94 |
| J63A-222-031-261-JC | 16.61 | 13.84 |
| J63A-222-037-261-JC | 18.52 | 15.75 |
| J63A-222-051-261-JC | 22.96 | 20.19 |
| J63A-222-065-261-JC | 27.41 | 24.64 |
| J63A-222-069-261-JC | 28.68 | 25.91 |
Please contact us for more information about this product.
