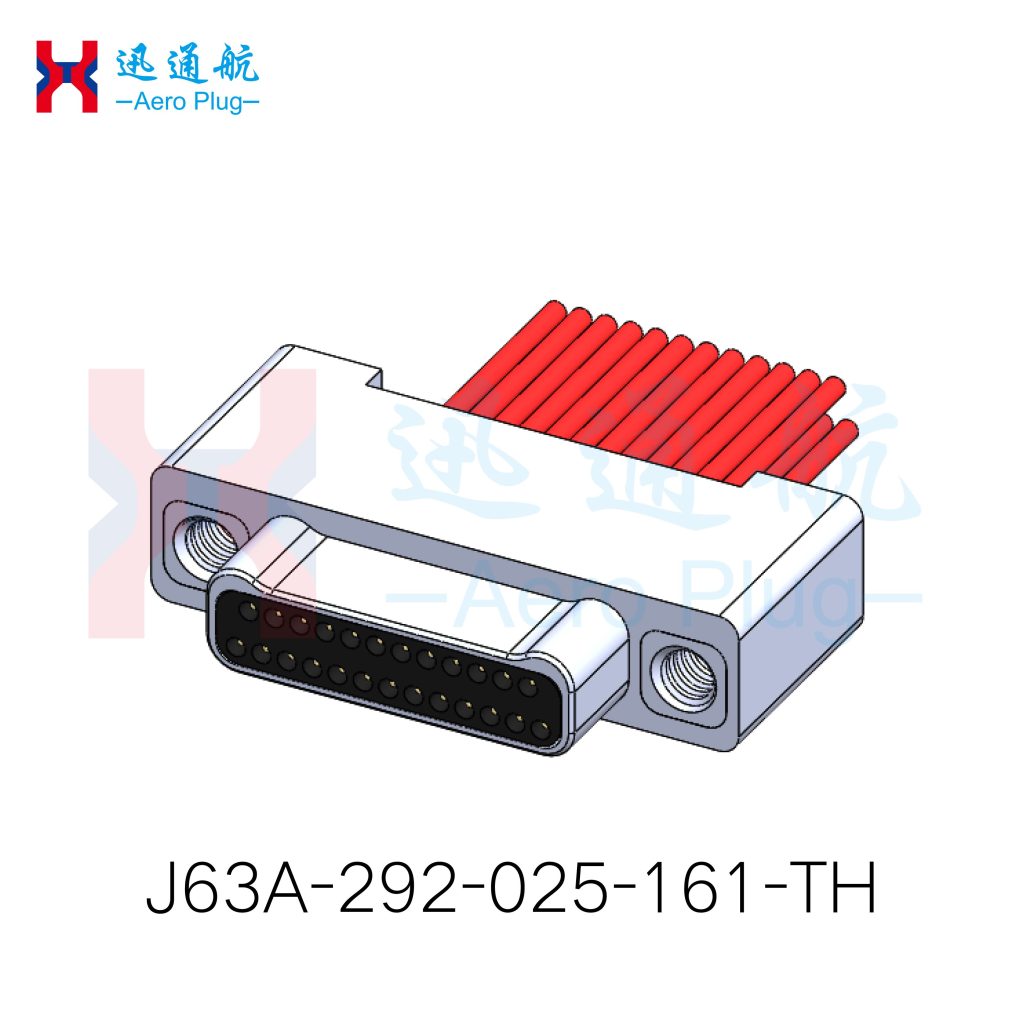

J63A-292-025-161-TH
Product features：
The connecting nut is of a through thread structure. The front thread is used for locking with the locking screw, and the rear thread is used for installation. This product is connected to a socket with a locking screw.
The overall dimensions of this series：
| Specification and model | Size | ||
| A | B | C | |
| J63A-292-009-161-TH | 9.63 | 6.86 | 4.2 |
| J63A-292-015-161-TH | 11.53 | 8.76 | 6.1 |
| J63A-292-021-161-TH | 13.44 | 10.67 | 8 |
| J63A-292-025-161-TH | 14.71 | 11.94 | 9.3 |
| J63A-292-031-161-TH | 16.61 | 13.84 | 11.2 |
| J63A-292-037-161-TH | 18.52 | 15.75 | 13.1 |
| J63A-292-051-161-TH | 22.96 | 20.19 | 17.55 |
| J63A-292-065-161-TH | 27.41 | 24.64 | 22 |
| J63A-292-069-161-TH | 28.68 | 25.91 | 23.25 |
Please contact us for more information about this product.
