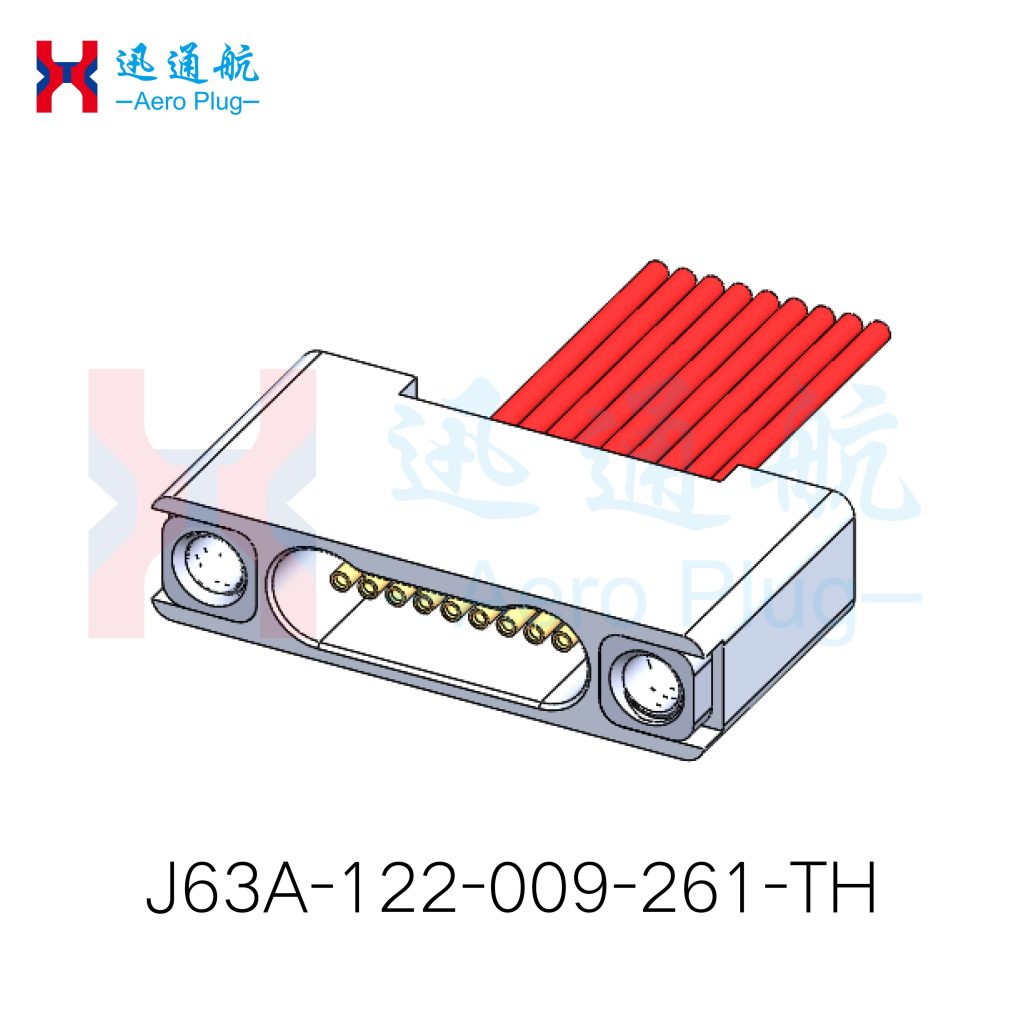

J63A-122-009-261-TH
Product features：
The coupling nut features a full-thread structure: the front section of the thread is used for locking with the locking screw, while the rear section is for installation; it mates with plugs equipped with locking screws.

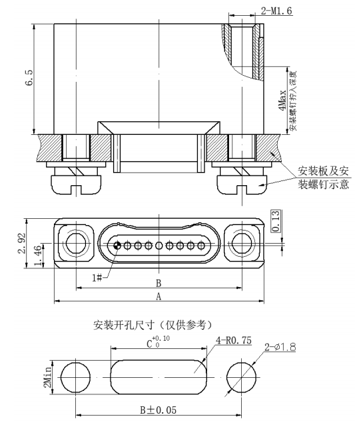

The overall dimensions of this series：
| Specification and model | size | ||
| A | B | C | |
| J63A-122-005-261-TH | 10.16 | 7.49 | 3.3 |
| J63A-122-009-261-TH | 12.7 | 10.03 | 5.8 |
| J63A-122-015-261-TH | 16.51 | 13.84 | 9.6 |
| J63A-122-021-261-TH | 20.32 | 17.65 | 13.4 |
| J63A-122-025-261-TH | 22.86 | 20.19 | 16 |
| J63A-122-031-261-TH | 26.67 | 24 | 19.8 |
| J63A-122-037-261-TH | 30.48 | 27.81 | 23.6 |
| J63A-122-051-261-TH | 39.37 | 36.7 | 32.5 |
