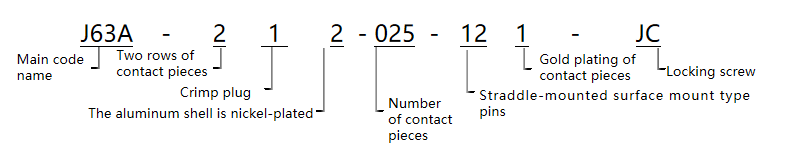

J63A-212-025-121-JC
Product features：
The free end of the product is not fixed and is usually connected to a socket with a connecting nut.
It is used for soldering flexible printed circuit boards at the pin ends, with a maximum thickness of 0.25.
A flat-groove locking screw (JC) is often selected and can be tightened with a small screwdriver。

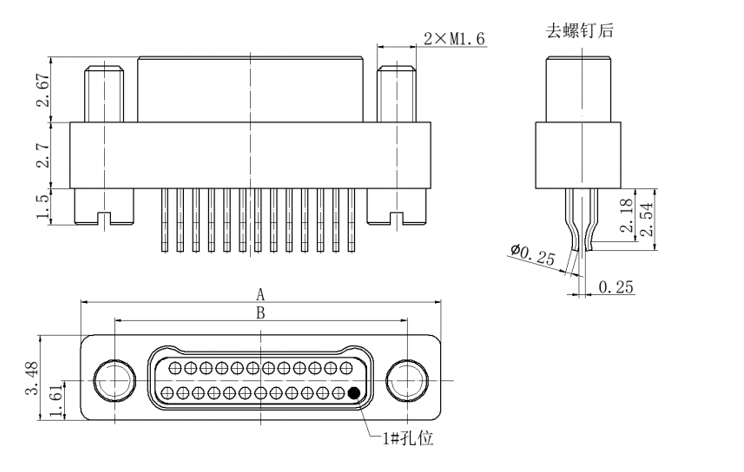

The overall dimensions of this series：
| Specification and model | size | |
| A | B | |
| J63A-212-009-121-JC | 9.63 | 6.86 |
| J63A-212-015-121-JC | 11.53 | 8.76 |

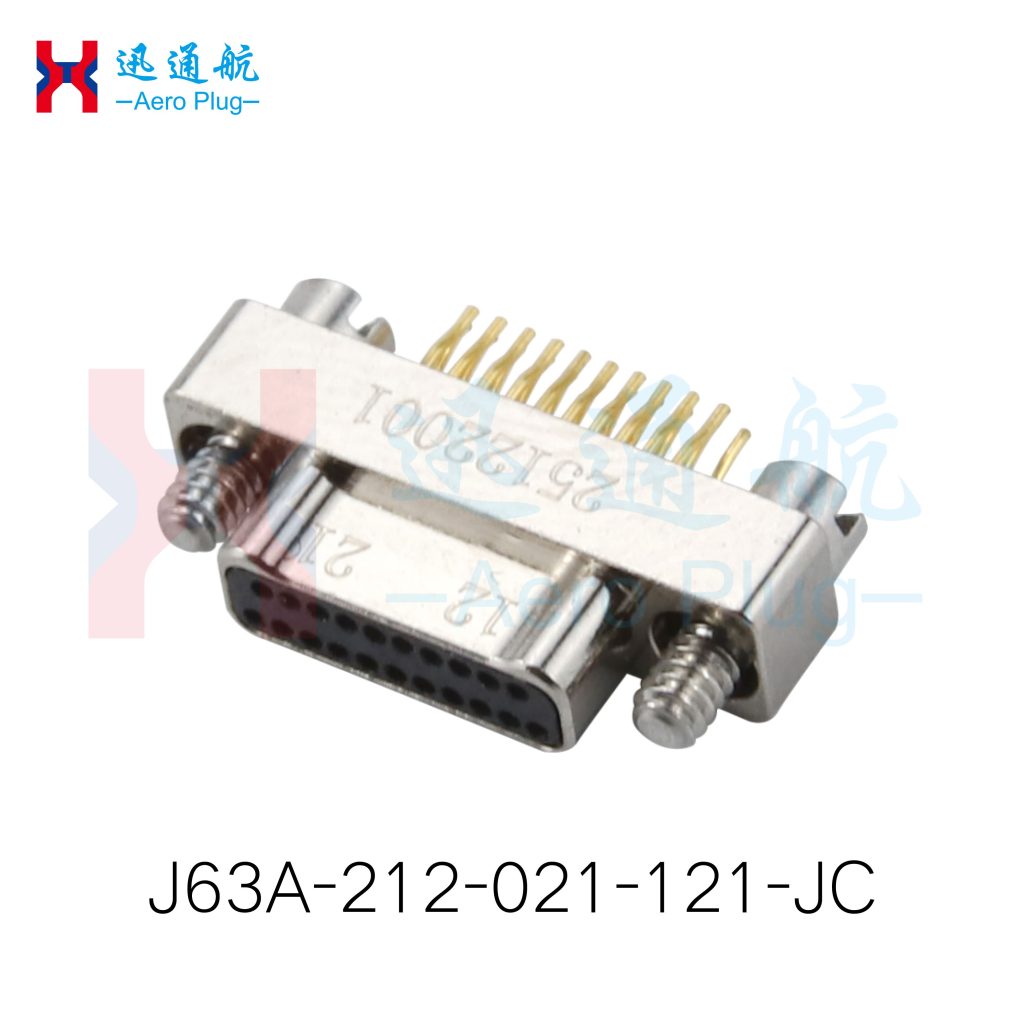

| J63A-212-021-121-JC | 13.44 | 10.67 |

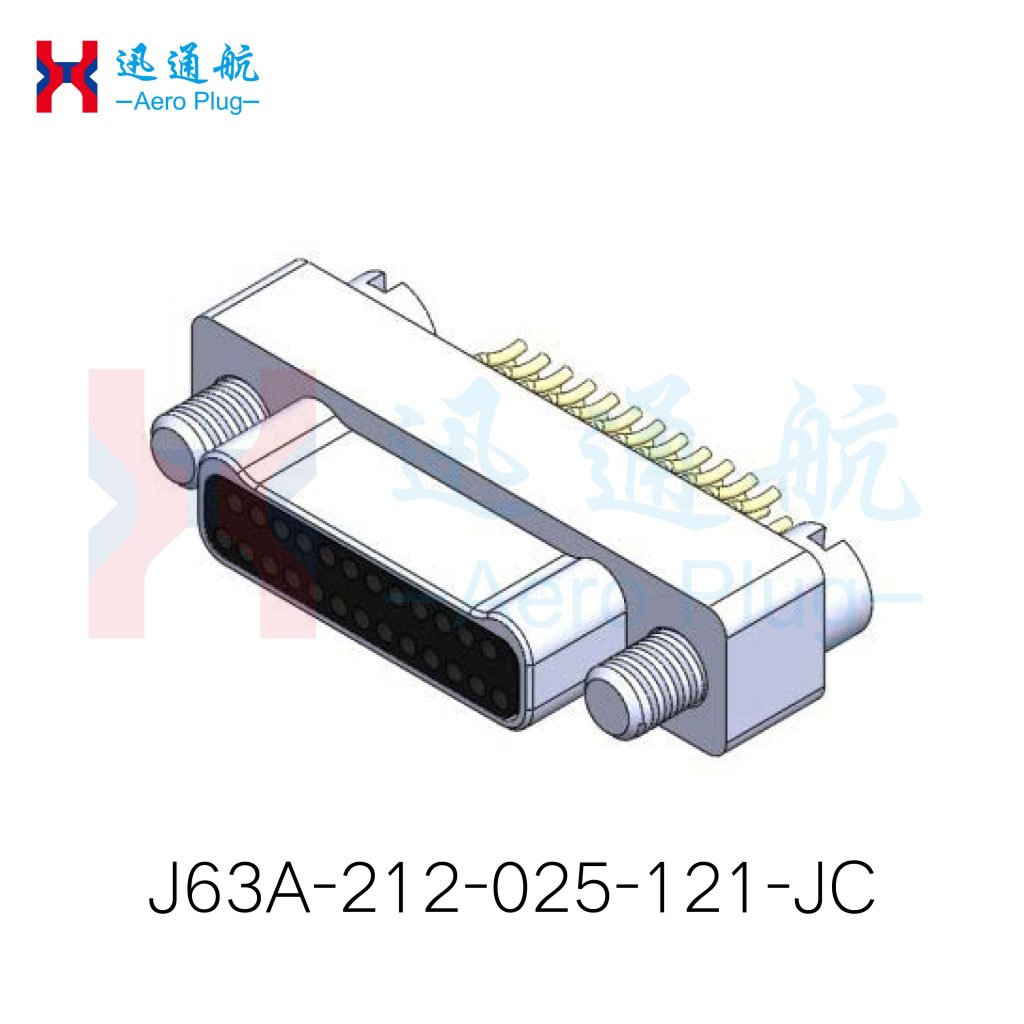

| J63A-212-025-121-JC | 14.71 | 11.94 |
| J63A-212-031-121-JC | 16.61 | 13.84 |
| J63A-212-037-121-JC | 18.52 | 15.75 |
| J63A-212-051-121-JC | 22.96 | 20.19 |
| J63A-212-065-121-JC | 27.41 | 24.64 |
| J63A-212-069-121-JC | 28.68 | 25.91 |
Please contact us for more information about this product.
