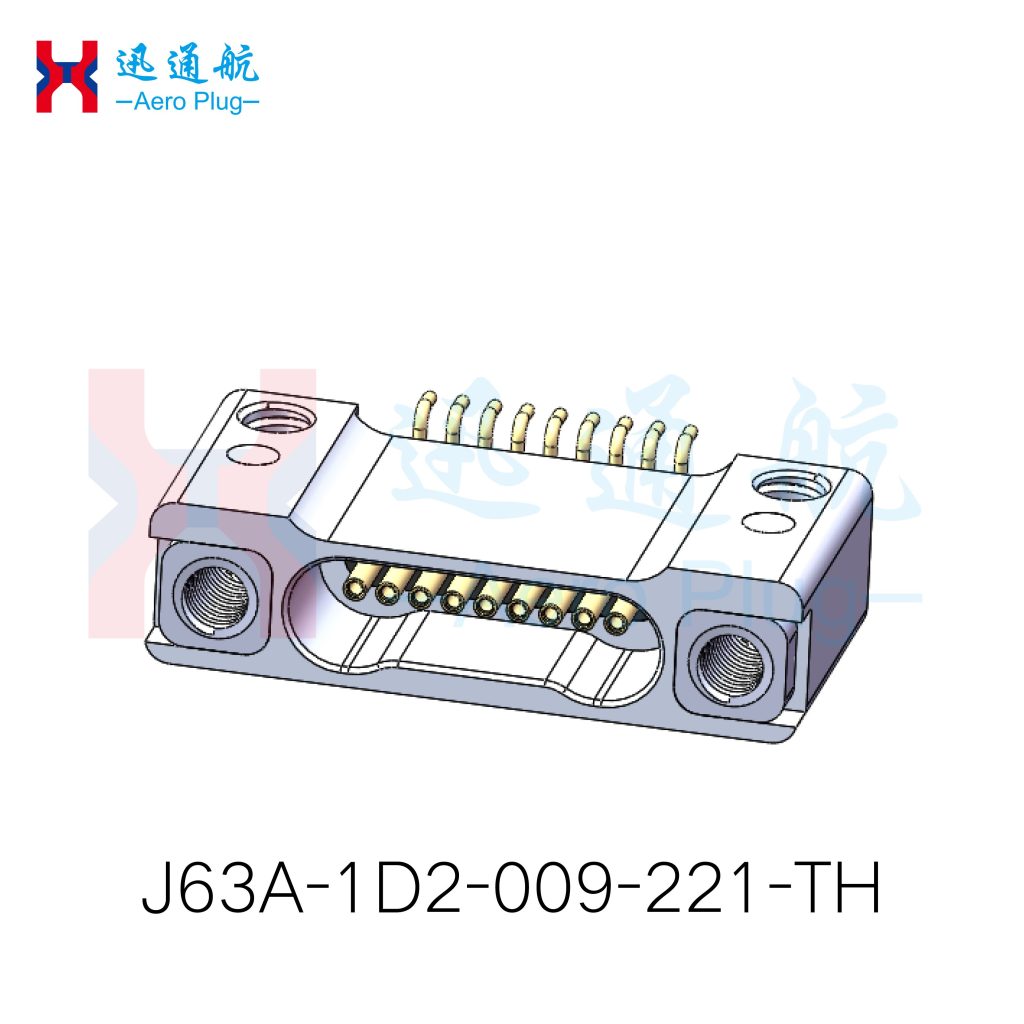

J63A-1D2-009-221-TH
Product features：
The product is welded and used using SMT technology.
Generally, plugs with locking screws are used for connection.
The pins are soft and prone to deformation. They need to be protected when in use.

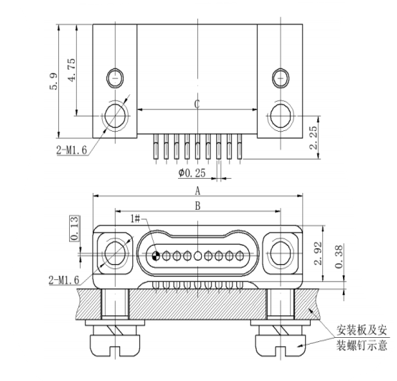

The overall dimensions of this series:
| Specification and model | size | ||
| A | B | C | |
| J63A-1D2-005-221-TH | 10.16 | 7.49 | 4.84 |
| J63A-1D2-009-221-TH | 12.7 | 10.03 | 7.38 |
| J63A-1D2-015-221-TH | 16.51 | 13.84 | 11.19 |
| J63A-1D2-021-221-TH | 20.32 | 17.65 | 15 |
| J63A-1D2-025-221-TH | 22.86 | 20.19 | 17.54 |
| J63A-1D2-031-221-TH | 26.67 | 24 | 21.35 |
| J63A-1D2-037-221-TH | 30.48 | 27.81 | 25.16 |
| J63A-1D2-051-221-TH | 39.37 | 36.7 | 34.05 |
Please contact us for more information about this product.
