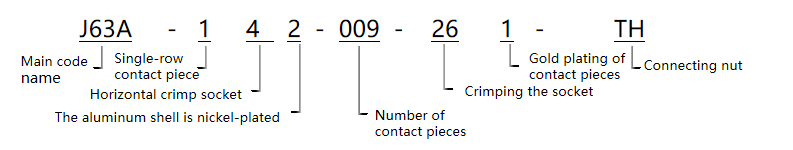

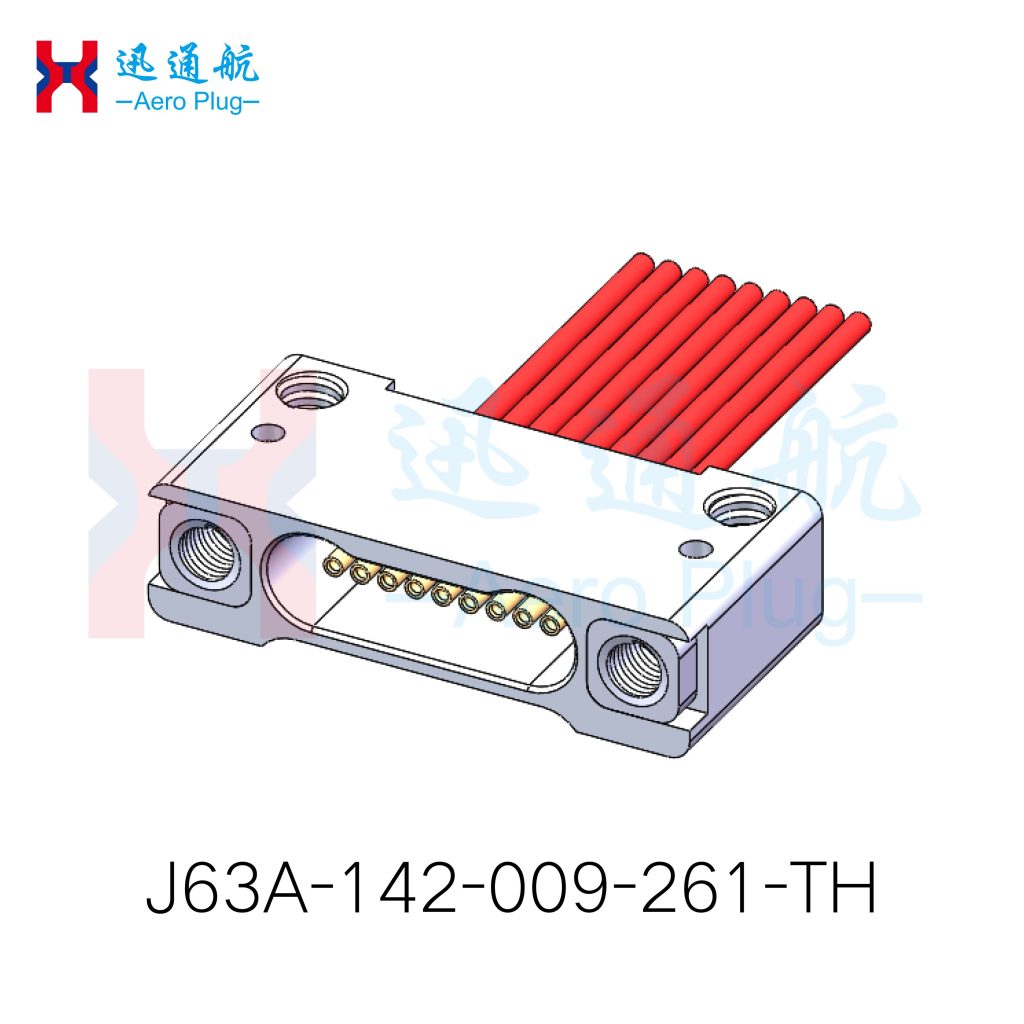

J63A-142-009-261-TH
Product features：
Horizontal installation: When installing, the long row end of the contact parts should be attached to the installation plate.
Connect with the plug with a locking screw.

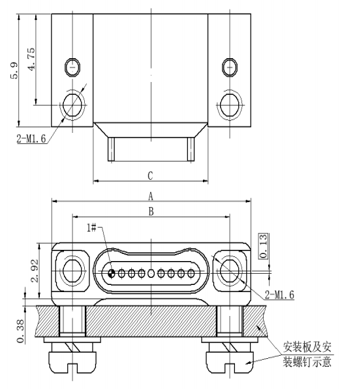

The overall dimensions of this series：
| Specification and model | size | ||
| A | B | C | |
| J63A-142-005-261-TH | 10.16 | 7.49 | 4.84 |
| J63A-142-009-261-TH | 12.7 | 10.03 | 7.38 |
| J63A-142-015-261-TH | 16.51 | 13.84 | 11.19 |
| J63A-142-021-261-TH | 20.32 | 17.65 | 15 |
| J63A-142-025-261-TH | 22.86 | 20.19 | 17.54 |
| J63A-142-031-261-TH | 26.67 | 24 | 21.35 |
| J63A-142-037-261-TH | 30.48 | 27.81 | 25.16 |
| J63A-142-051-261-TH | 39.37 | 36.7 | 34.05 |
Please contact us for more information about this product.
