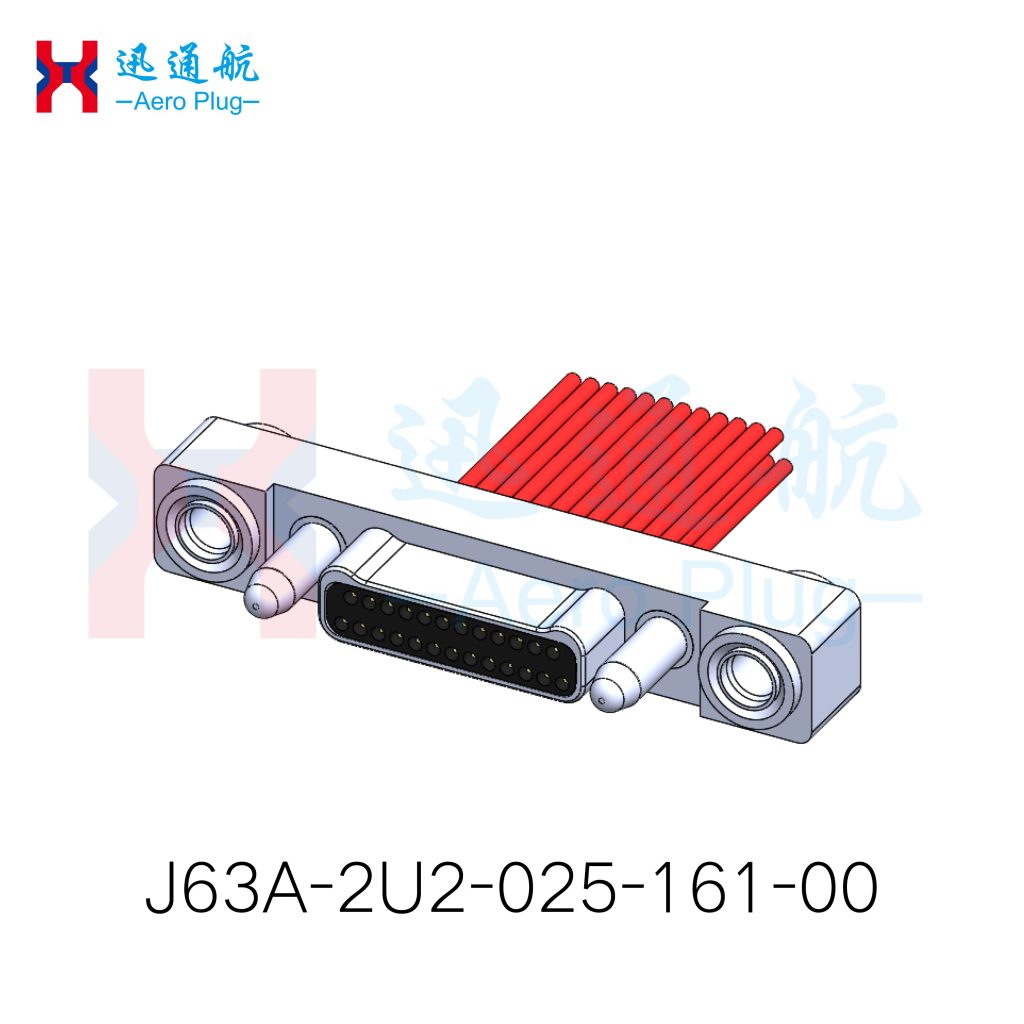

J63A-2U2-025-161-00
Product features：
This connector is equipped with a guide column and a floating rivet tube, and is used when blind fitting is required. It is generally connected to a socket with a guide hole。

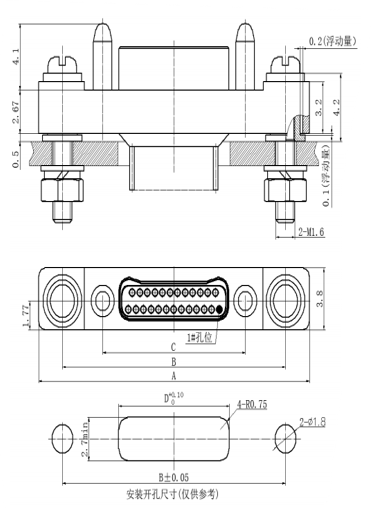

The overall dimensions of this series：
| Specification and model | Size | |||
| A | B | C | D | |
| J63A-2U2-009-261-00 | 17.6 | 13.6 | 6.86 | 4.2 |
| J63A-2U2-015-261-00 | 19.5 | 15.5 | 8.76 | 6.1 |
| J63A-2U2-021-261-00 | 21.4 | 17.4 | 10.67 | 8 |
| J63A-2U2-025-261-00 | 22.7 | 18.7 | 11.94 | 9.3 |
| J63A-2U2-031-261-00 | 24.6 | 20.6 | 13.84 | 11.2 |
| J63A-2U2-037-261-00 | 26.5 | 22.5 | 15.75 | 13.1 |
| J63A-2U2-051-261-00 | 30.9 | 26.9 | 20.19 | 17.55 |
| J63A-2U2-065-261-00 | 35.4 | 31.4 | 24.64 | 22 |
| J63A-2U2-069-261-00 | 36.7 | 32.7 | 25.91 | 23.25 |
Please contact us for more information about this product.
