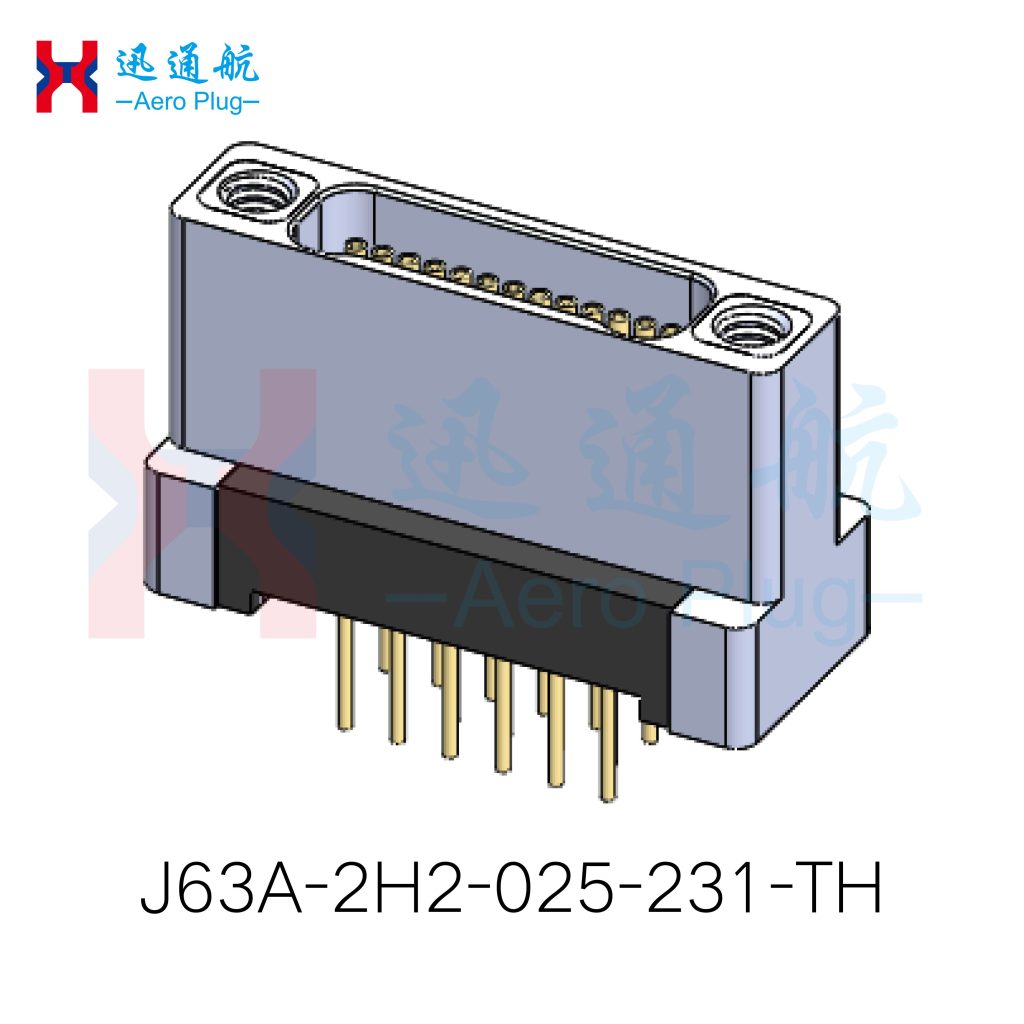

J63A-2H2-025-231-TH
Product features：
The connector offers three types of pin lengths. If other lengths are required, customization is necessary.
Connect J63A-2H2-025-231-TH to the plug with a locking screw,

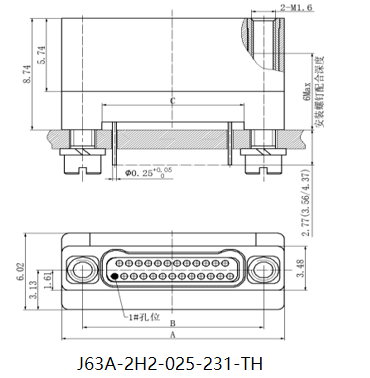

Series external dimensions：
| Specification and model | size | Specification and model | size | ||||
| A | B | C | A | B | C | ||
| J63A-2H2-009-231-TH/DZ | 9.63 | 6.86 | 4.31 | J63A-2H2-037-231-TH/DZ | 18.52 | 15.75 | 13.21 |
| J63A-2H2-015-231-TH/DZ | 11.53 | 8.76 | 6.22 | J63A-2H2-051-231-TH/DZ | 22.96 | 20.19 | 17.65 |
| J63A-2H2-021-231-TH/DZ | 13.44 | 10.67 | 8.13 | J63A-2H2-065-231-TH/DZ | 27.41 | 24.64 | 22.1 |
| J63A-2H2-025-231-TH/DZ | 14.71 | 11.94 | 9.4 | J63A-2H2-069-231-TH/DZ | 28.68 | 25.91 | 23.37 |
| J63A-2H2-031-231-TH/DZ | 16.61 | 13.84 | 11.3 | ||||
Please contact us for more information about this product.
