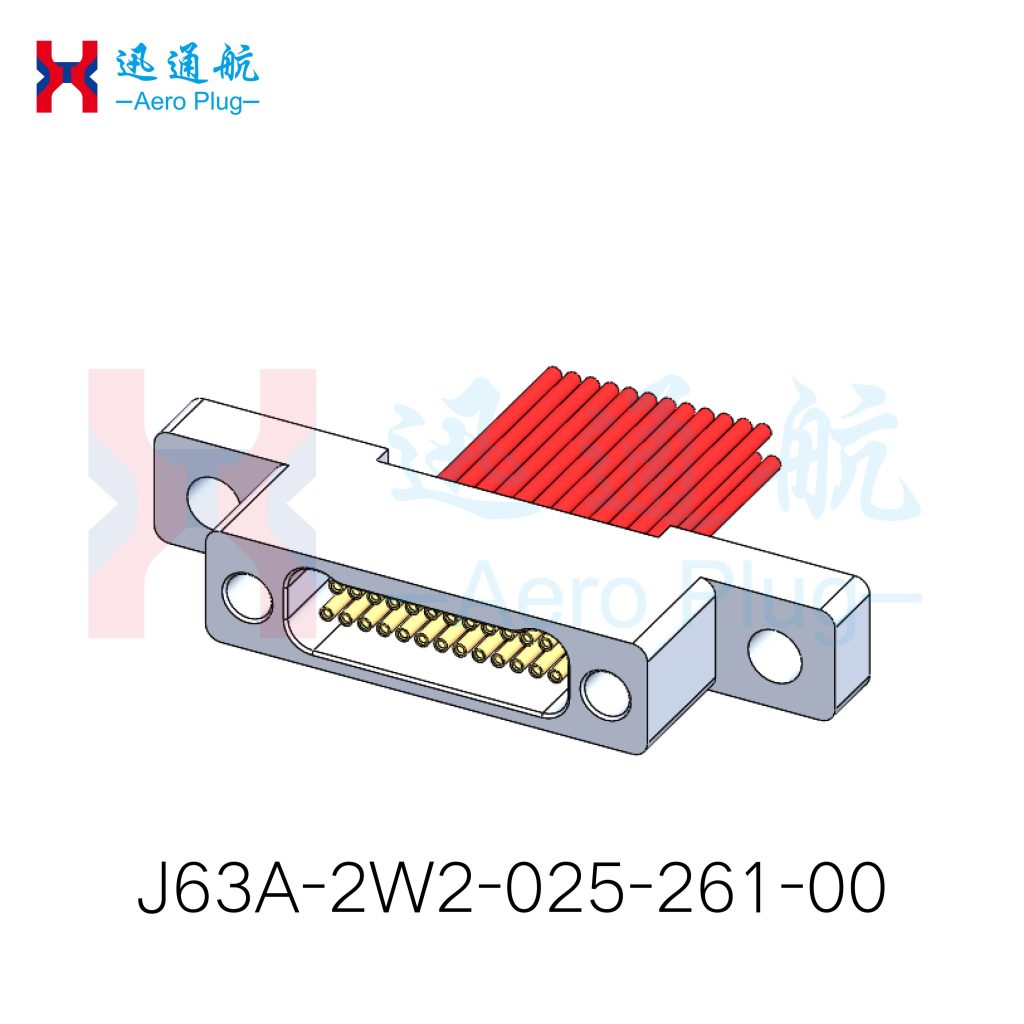

J63A-2W2-025-261-00
Product features
This connector is equipped with guide holes and is generally used in conjunction with plugs with guide posts.

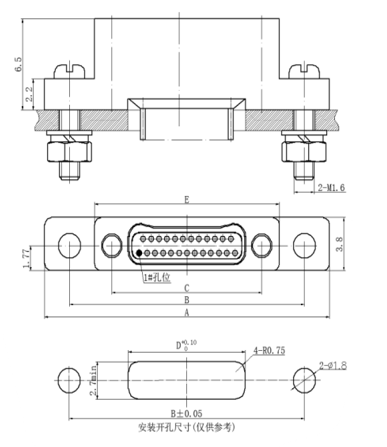

The overall dimensions of this series：
| Specification and size | Size | ||||
| A | B | C | D | E | |
| J63A-2W2-009-261-00 | 17.6 | 13.6 | 6.86 | 4.2 | 9.63 |
| J63A-2W2-015-261-00 | 19.5 | 15.5 | 8.76 | 6.1 | 11.53 |
| J63A-2W2-021-261-00 | 21.4 | 17.4 | 10.67 | 8 | 13.44 |
| J63A-2W2-025-261-00 | 22.7 | 18.7 | 11.94 | 9.3 | 14.71 |
| J63A-2W2-031-261-00 | 24.6 | 20.6 | 13.84 | 11.2 | 16.61 |
| J63A-2W2-037-261-00 | 26.5 | 22.5 | 15.75 | 13.1 | 18.52 |
| J63A-2W2-051-261-00 | 30.9 | 26.9 | 20.19 | 17.6 | 22.96 |
| J63A-2W2-065-261-00 | 35.4 | 31.4 | 24.64 | 22 | 27.41 |
| J63A-2W2-069-261-00 | 36.7 | 32.7 | 25.91 | 23.3 | 28.68 |
Please contact us for more information about this product.
