J63A Crimp-Integrated Type（for Professional Audio Mixer Signal Interface Connections）

Product features：
The locking parts of this logo series are matched as follows: plugs with locking screws, sockets with connecting nuts, and the form is unique. The connection point numbers correspond one-to-one. Other requirements should be ordered in accordance with “Other Order Marking Forms”.

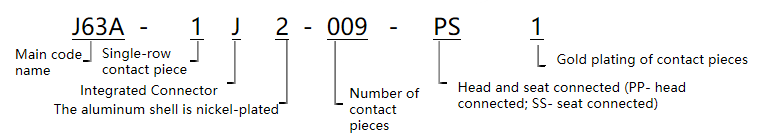

The models at both ends of the connector are marked according to the product name. If you order J63A-1J2-009-PS1, both the plug and socket models are marked as J63A-1J2-009-PS1.
Other forms of order marking: When ordering split-type cables, the specific product models of the split-type products can also be listed separately, and it is sufficient to indicate that they are made into split-type electric cables, without necessarily following the aforementioned “order marking”. For example, J63A-112-009-161-JC and J63A-122-009-261-TH are connected, and the dot numbers correspond one-to-one. It is recommended to place orders in this way, which can meet a variety of special requirements.

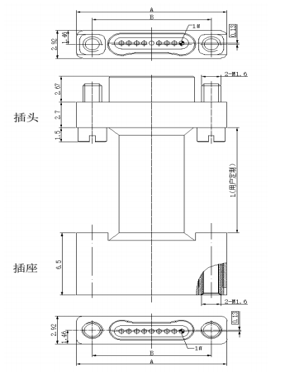

The overall dimensions of this series：
