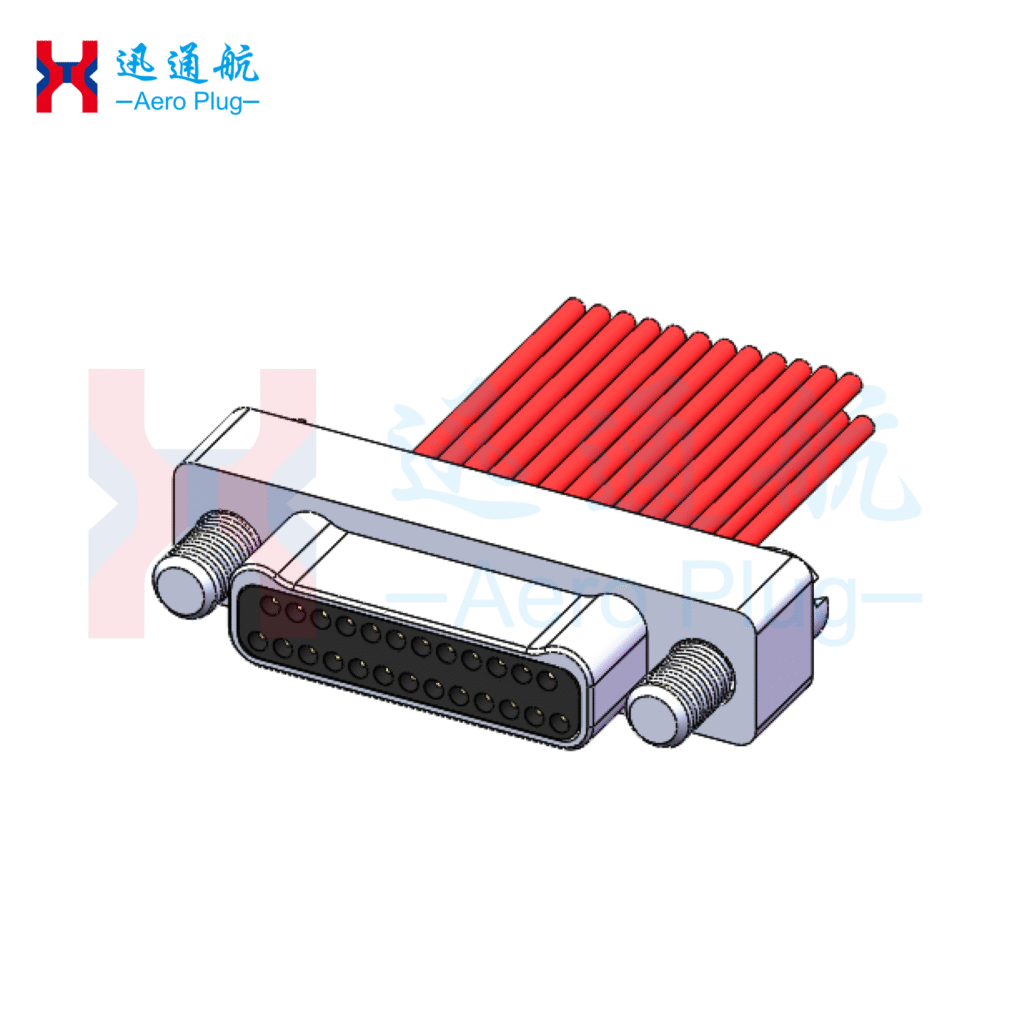

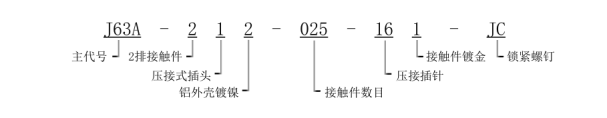

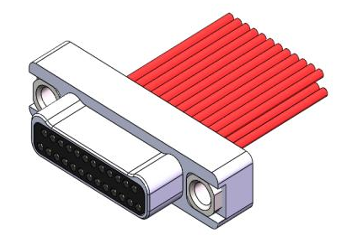

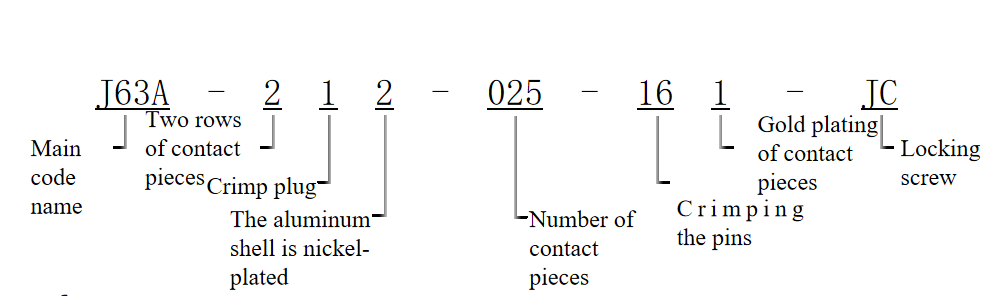

J63A-212-025-161-JC
Product features
The free end of the product is not fixed and is usually connected to a socket with a connecting nut；
The screws are fixed on the shell and cannot be disassembled；
A flat-groove locking screw (JC) is often selected and can be tightened with a small screwdriver.

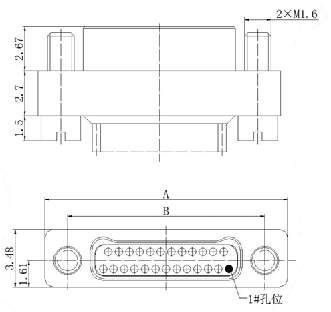

The overall dimensions of this series：
| Specification and model | Size | |
| A | B | |

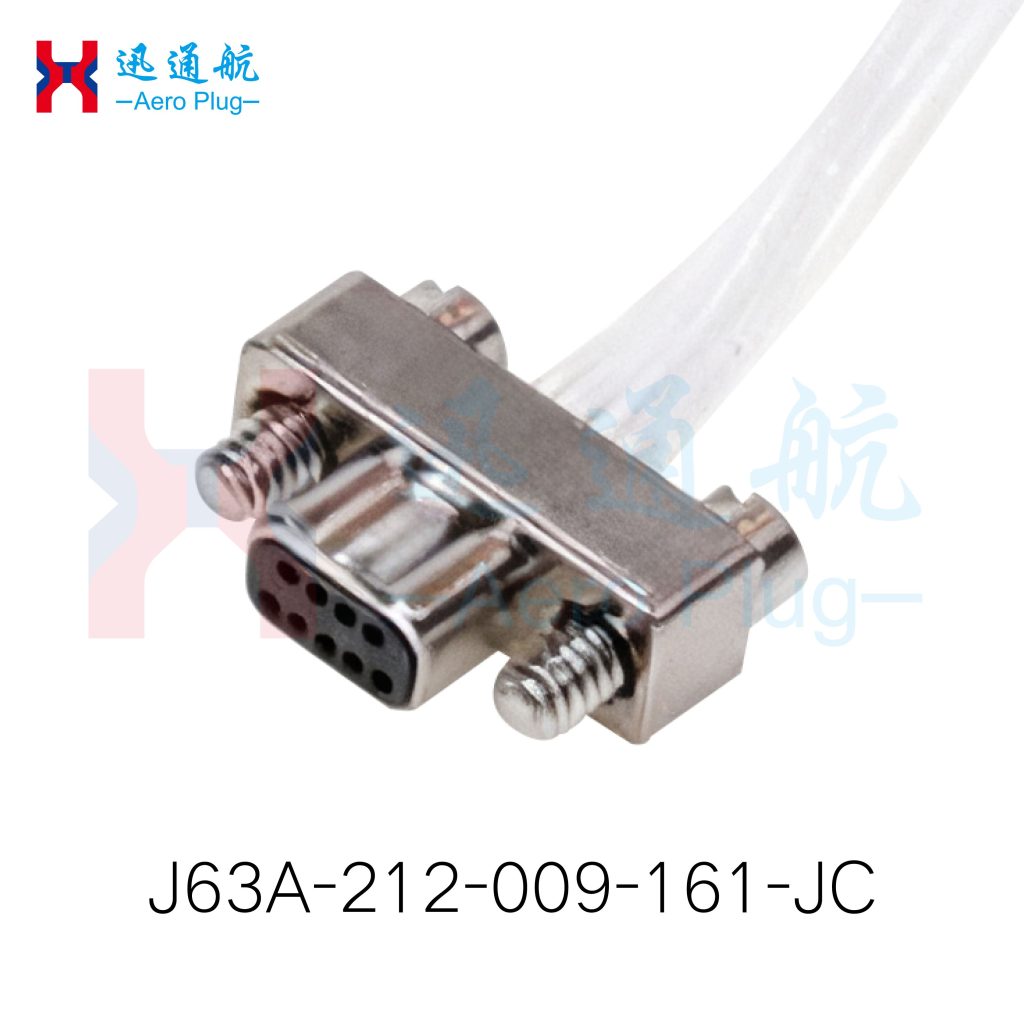

| J63A-212-009-161-JC | 9.63 | 6.86 |
| J63A-212-015-161-JC | 11.53 | 8.76 |
| J63A-212-021-161-JC | 13.44 | 10.67 |
| J63A-212-025-161-JC | 14.71 | 11.94 |
| J63A-212-031-161-JC | 16.61 | 13.84 |
| J63A-212-037-161-JC | 18.52 | 15.75 |
| J63A-212-051-161-JC | 22.96 | 20.19 |
| J63A-212-065-161-JC | 27.41 | 24.64 |
| J63A-212-069-161-JC | 28.68 | 25.91 |
Please contact us for more information about this product.
