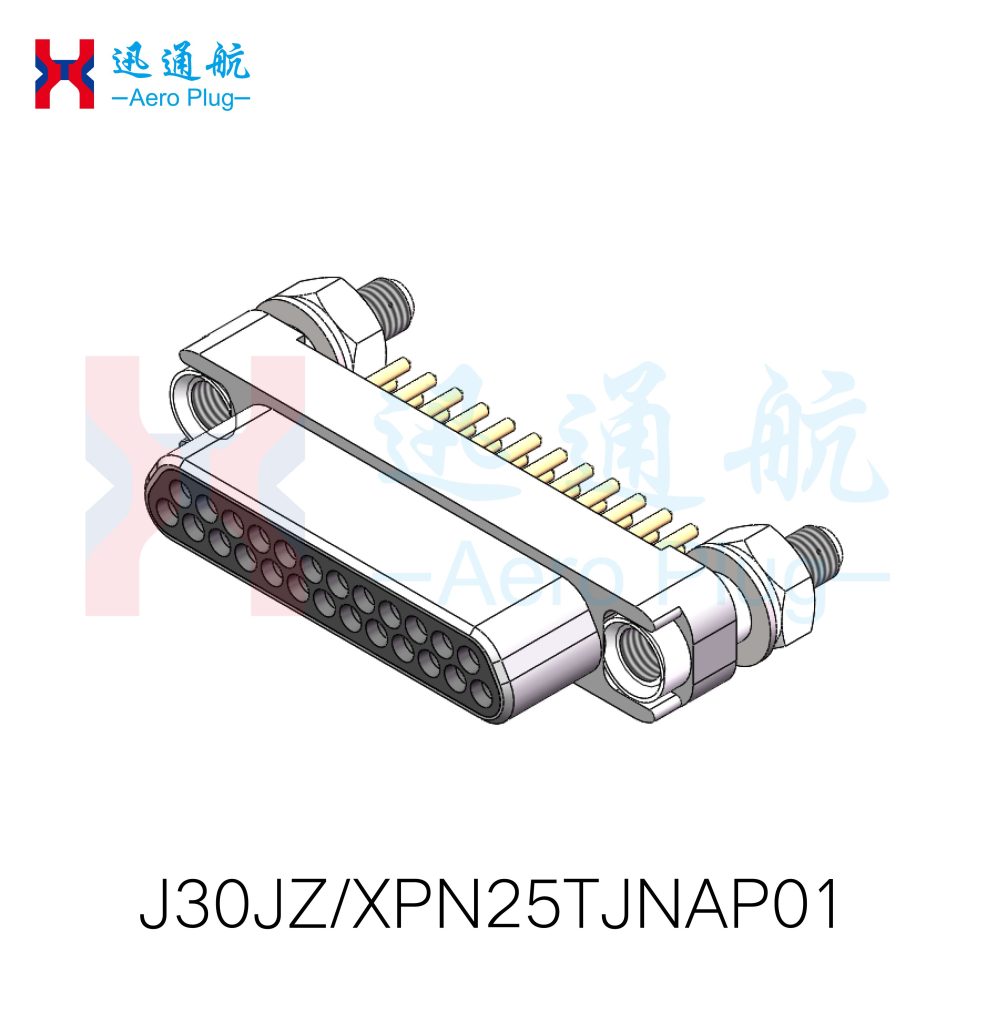

J30JZ/X Straight PCB Mount Type: J30JZ/XPN□TJNAP01
9、15、21、25、31、37、51、66、74、100(Plug)
Vertical Mount; Suitable for Printed Circuit Board (PCB) Thickness: 2.5 (max); Grid Pitch (Pitch × Row Spacing): 1.27×1.1

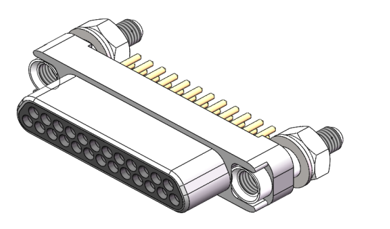

Product Stereogram

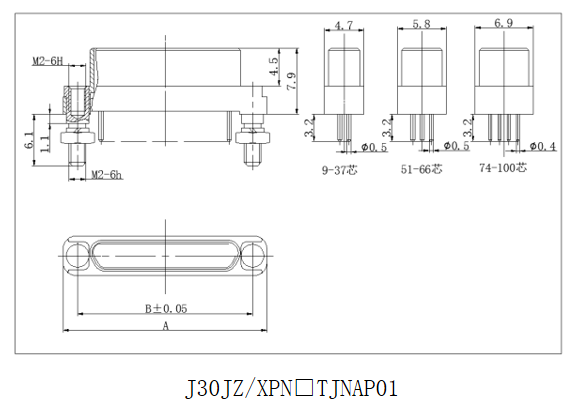

Product Outline Dimension Drawing
| Order Mark | A | B |
| J30JZ/XPN9TJNAP01 | 14 | 10.6 |
| J30JZ/XPN15TJNAP01 | 17.8 | 14.4 |
| J30JZ/XPN21TJNAP01 | 21.6 | 18.2 |
| J30JZ/XPN25TJNAP01 | 24.2 | 20.8 |
| J30JZ/XPN31TJNAP01 | 28 | 24.6 |
| J30JZ/XPN37TJNAP01 | 31.8 | 28.4 |
| J30JZ/XPN51TJNAP01 | 30.5 | 27.1 |
| J30JZ/XPN66TJNAP01 | 36.9 | 33.5 |
| J30JZ/XPN74TJNAP01 | 33.1 | 29.7 |
| J30JZ/XPN100TJNAP01 | 40.7 | 37.3 |
Please contact us for more information about this product.
