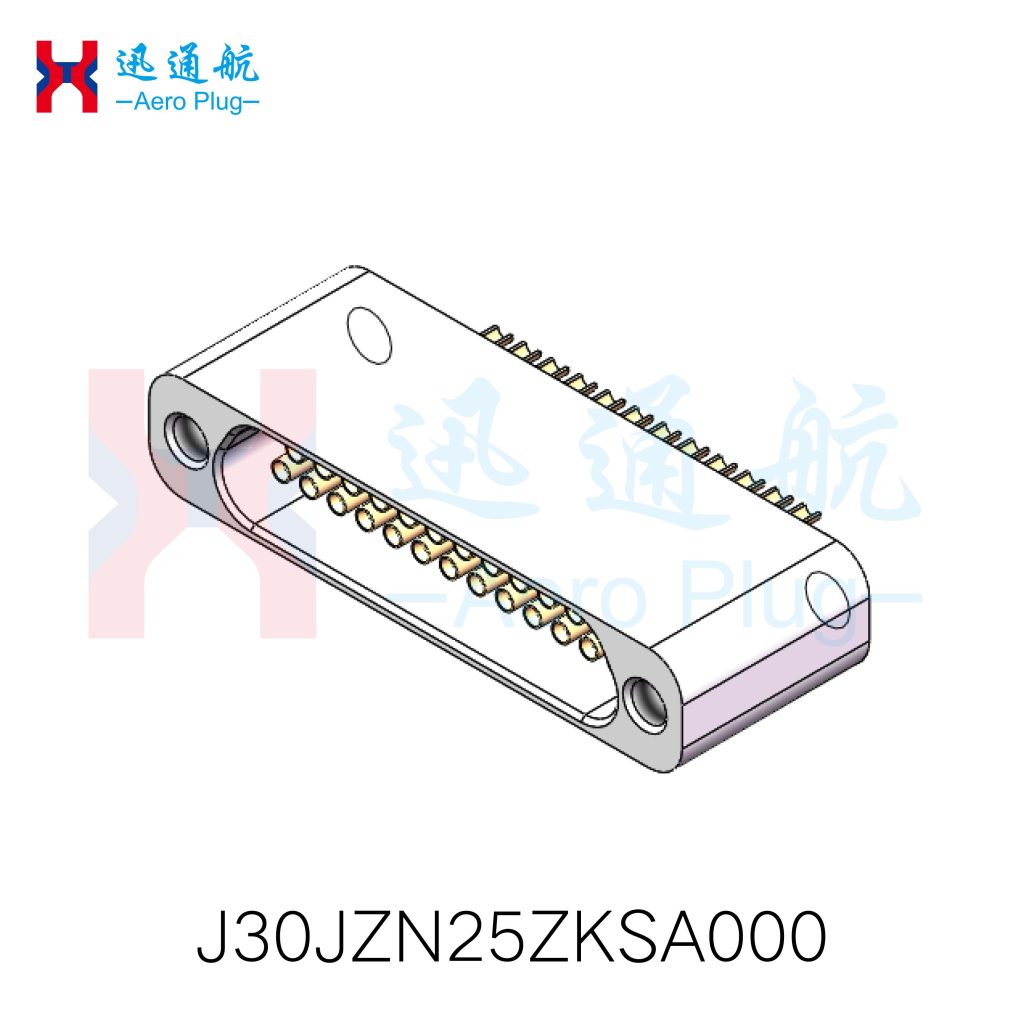

J30JZ Soldered Type: J30JZN□ZKSA000
9、15、21、25、31、37、51、66、74、100 (Socket)
Free-End Housing Structure (Vertically Mountable)

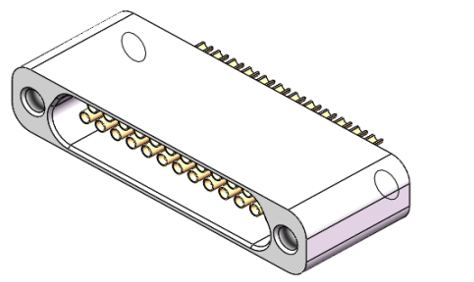

Product Stereogram

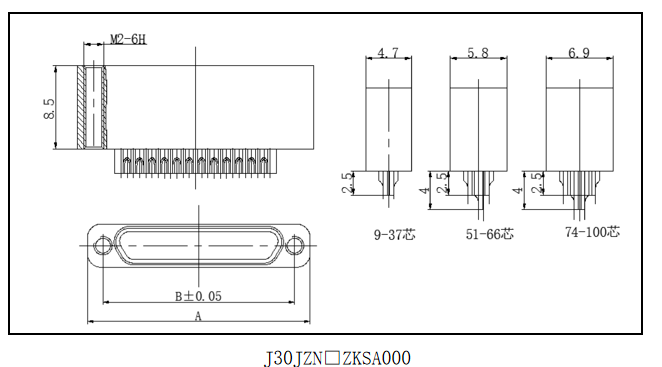

Product Outline Dimension Drawing
| Order Mark | A | B |
| J30JZN9ZKSA000 | 14 | 10.6 |
| J30JZN15ZKSA000 | 17.8 | 14.4 |
| J30JZN21ZKSA000 | 21.6 | 18.2 |
| J30JZN25ZKSA000 | 24.2 | 20.8 |
| J30JZN31ZKSA000 | 28 | 24.6 |
| J30JZN37ZKSA000 | 31.8 | 28.4 |
| J30JZN51ZKSA000 | 30.5 | 27.1 |
| J30JZN66ZKSA000 | 36.9 | 33.5 |
| J30JZN74ZKSA000 | 33.1 | 29.7 |
| J30JZN100ZKSA000 | 40.7 | 37.3 |
