J30JZ Crimp Basic Type: J30JZLN□ZKCA000
9、15、21、25、31、37、51、66、74、100 (Plug)
Horizontal Mount Structure

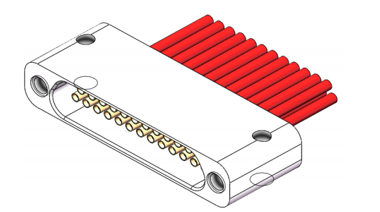

Product Stereogram(25-core)

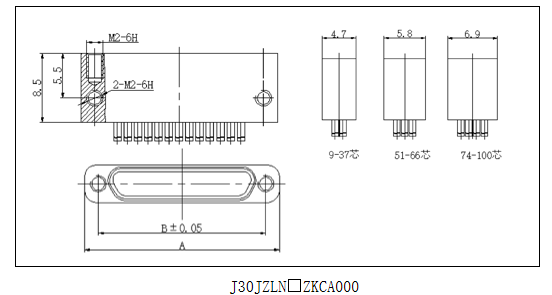

Product Outline Dimension Drawing
| Order Mark | A | B |
| J30JZLN9ZKCA000 | 14 | 10.6 |

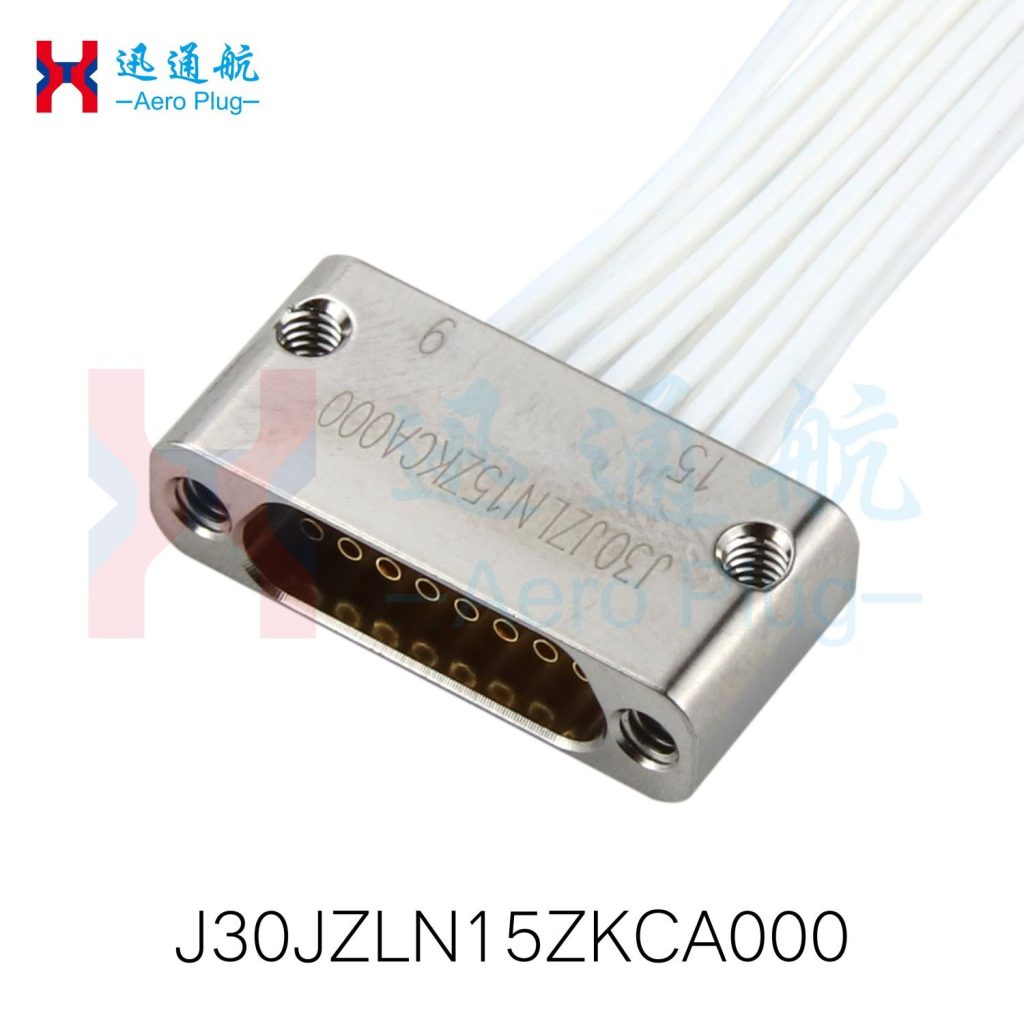

| J30JZLN15ZKCA000 | 17.8 | 14.4 |
| J30JZLN21ZKCA000 | 21.6 | 18.2 |

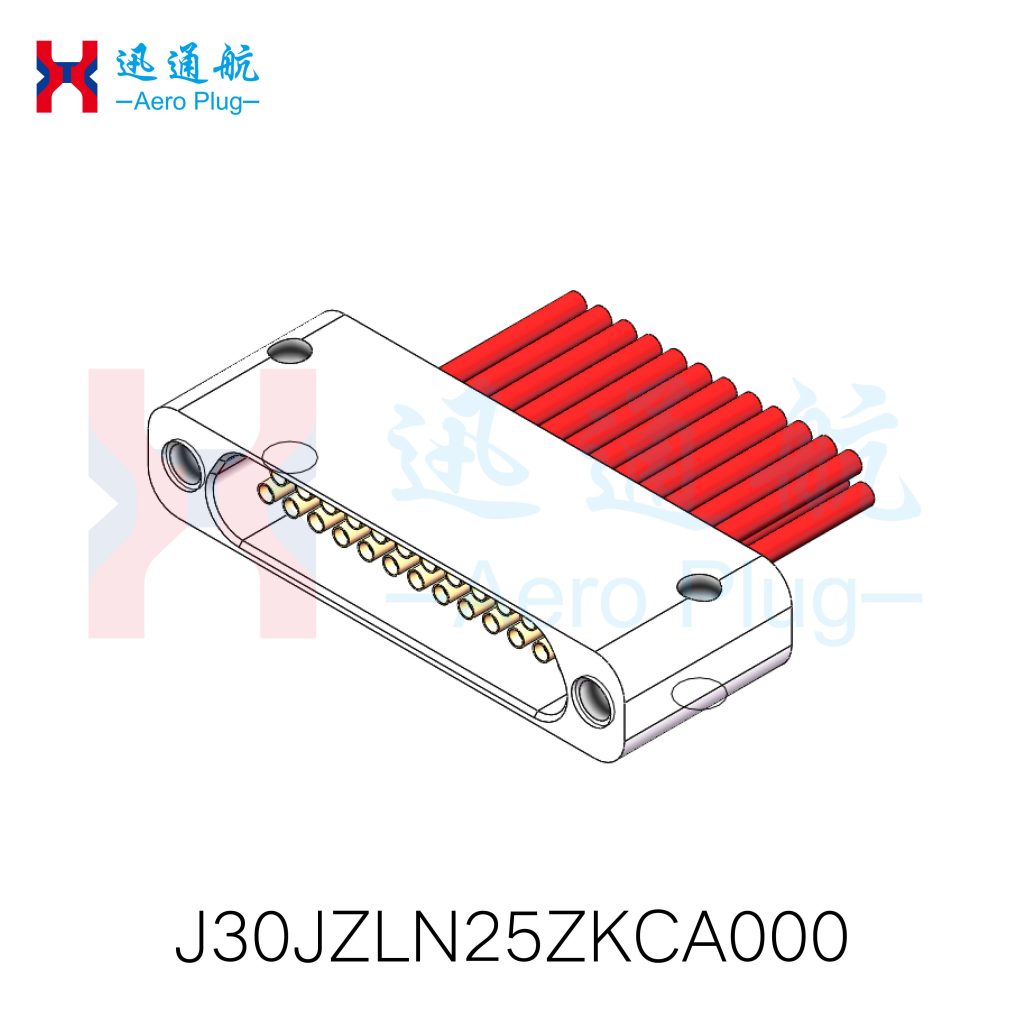

| J30JZLN25ZKCA000 | 24.2 | 20.8 |
| J30JZLN31ZKCA000 | 28 | 24.6 |
| J30JZLN37ZKCA000 | 31.8 | 28.4 |
| J30JZLN51ZKCA000 | 30.5 | 27.1 |
| J30JZLN66ZKCA000 | 36.9 | 33.5 |
| J30JZLN74ZKCA000 | 33.1 | 29.7 |
| J30JZLN100ZKCA000 | 40.7 | 37.3 |
Please contact us for more information about this product.
