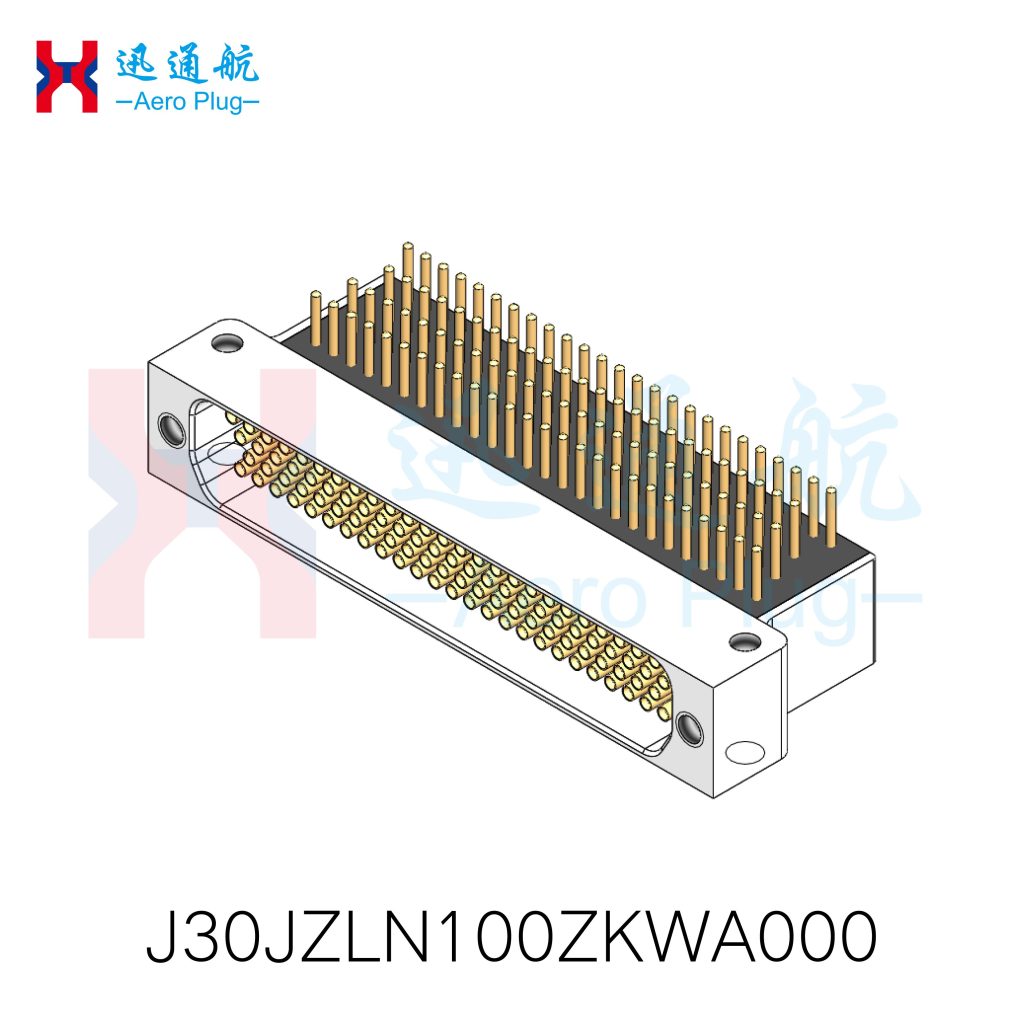

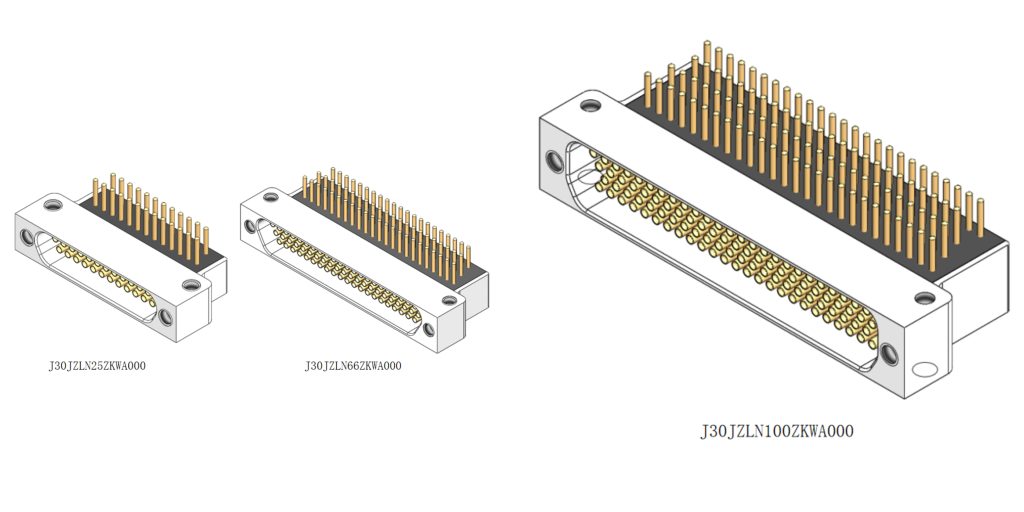

J30JZ Straight PCB Mount Type: J30JZLN□ZKWA000
9、15、21、25、31、37、51、66、74、100 (Socket)
Suitable for Printed Circuit Board (PCB) Thickness: 2mm (max); Grid Pitch (Pitch × Row Spacing): 1.27×2
Product Outline Drawing

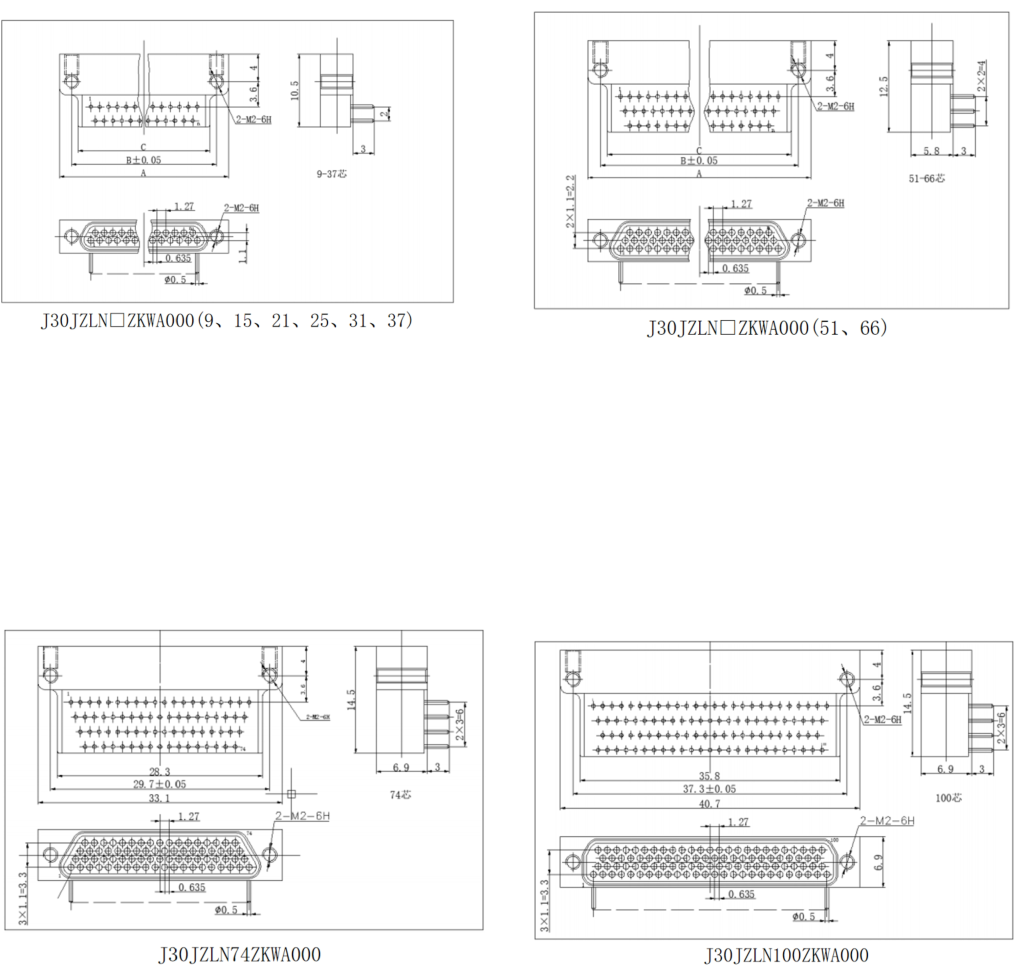

Product Outline Dimension Drawing
| Order Mark | A | B |
| J30JZLN9ZKWA000 | 14 | 10.6 |

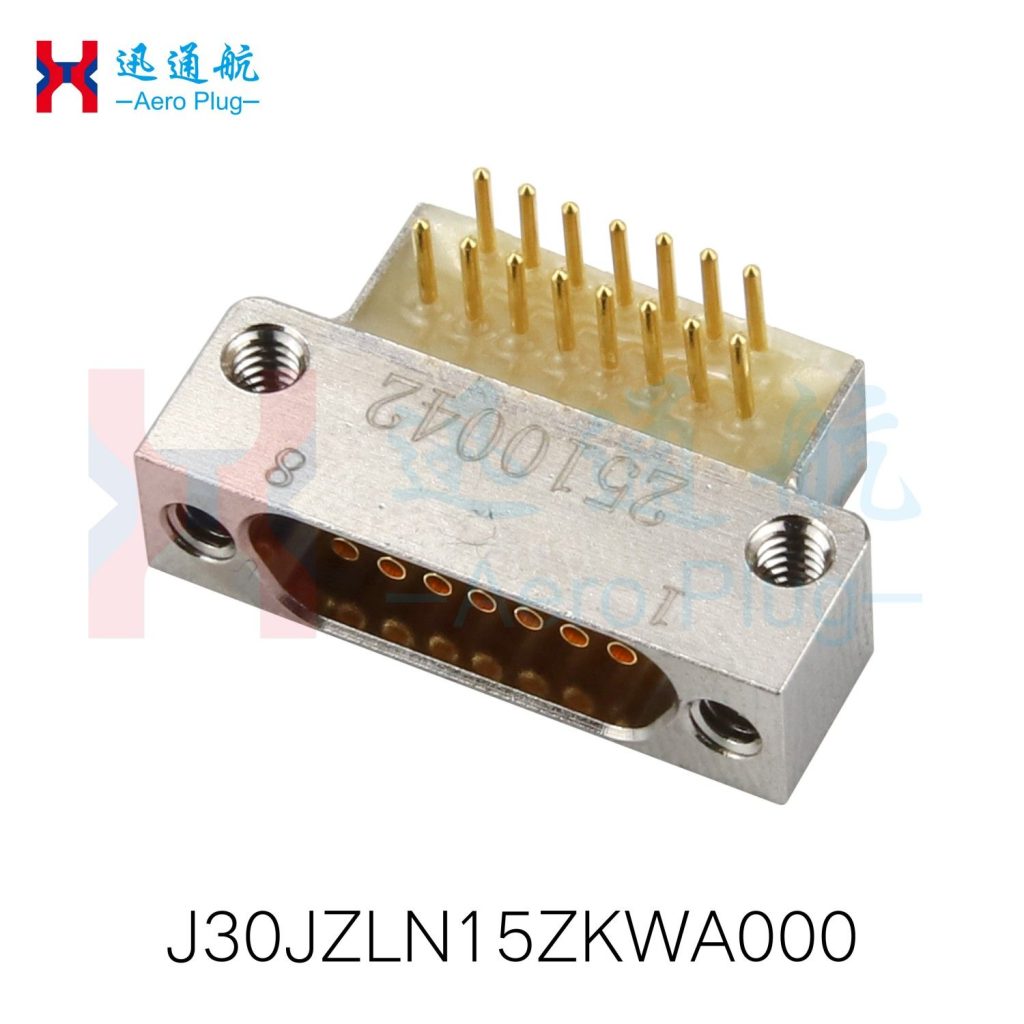

| J30JZLN15ZKWA000 | 17.8 | 14.4 |
| J30JZLN21ZKWA000 | 21.6 | 18.2 |

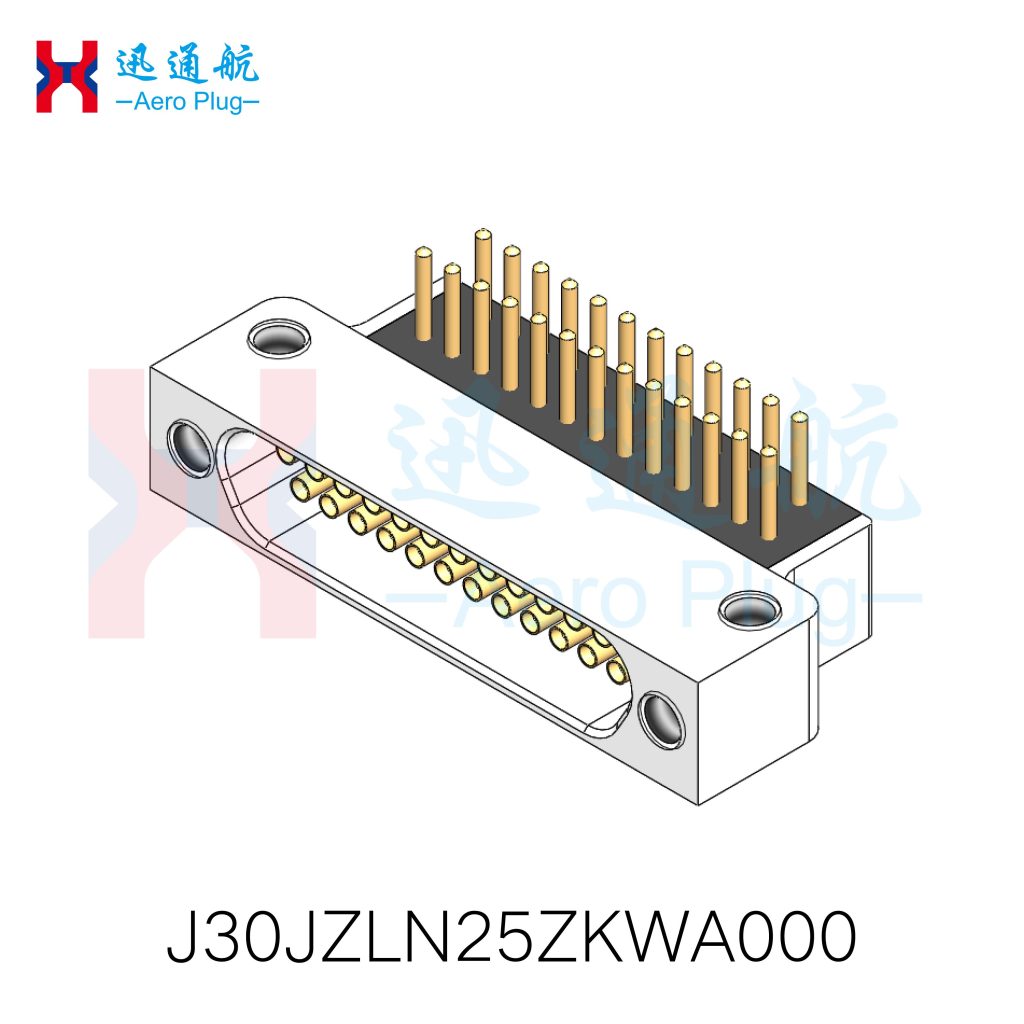

| J30JZLN25ZKWA000 | 24.2 | 20.8 |
J30JZLN31ZKWA000 | 28 | 24.6 |
| J30JZLN37ZKWA000 | 31.8 | 28.4 |
| J30JZLN51ZKWA000 | 30.5 | 27.1 |

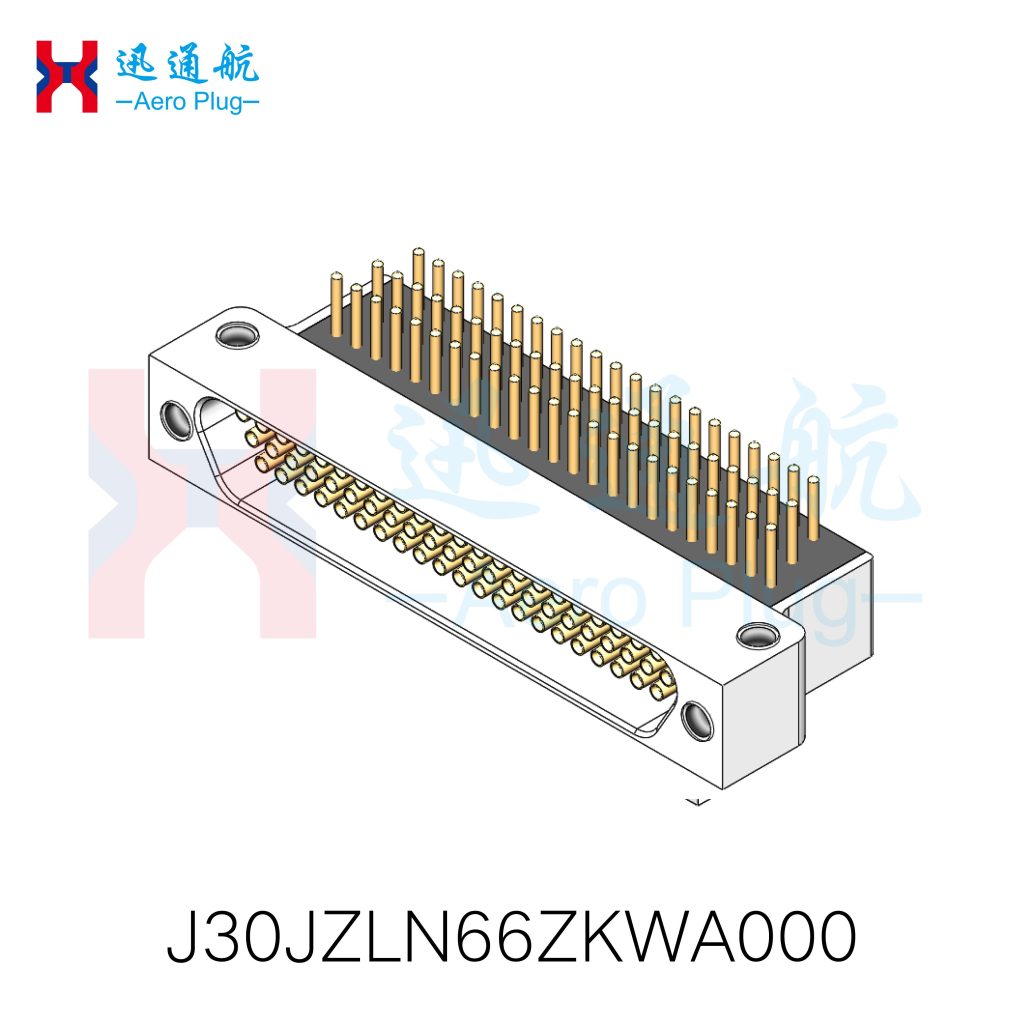

| J30JZLN66ZKWA000 | 36.9 | 33.5 |
Please contact us for more information about this product.
