J30JZ/X Right-Angle PCB Mount Type: J30JZ/XLN□TJWA000
9、15、21、25、31、37、51、66、74、100(Plug)
Vertical Mount; Suitable for Printed Circuit Board (PCB) Thickness: 2.5 (max); Grid Pitch (Pitch × Row Spacing): 1.27×1.1

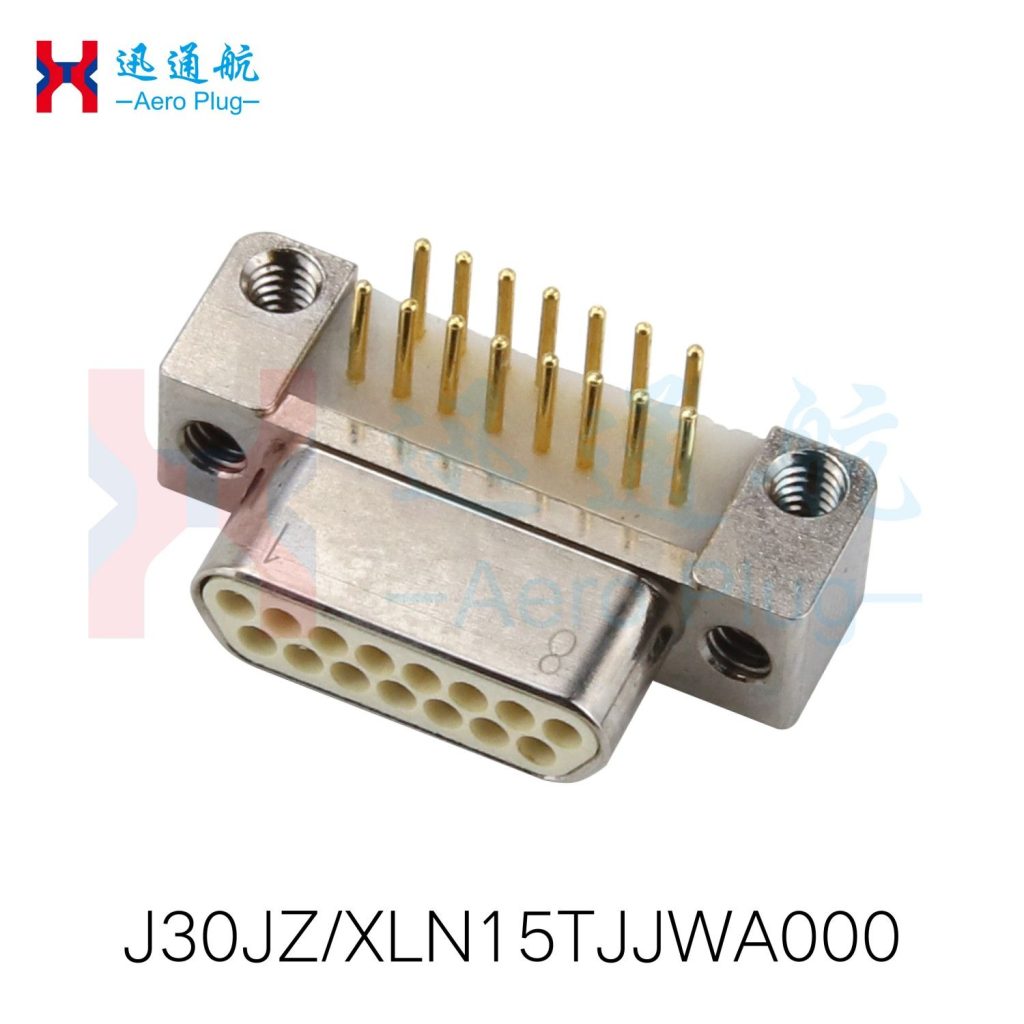

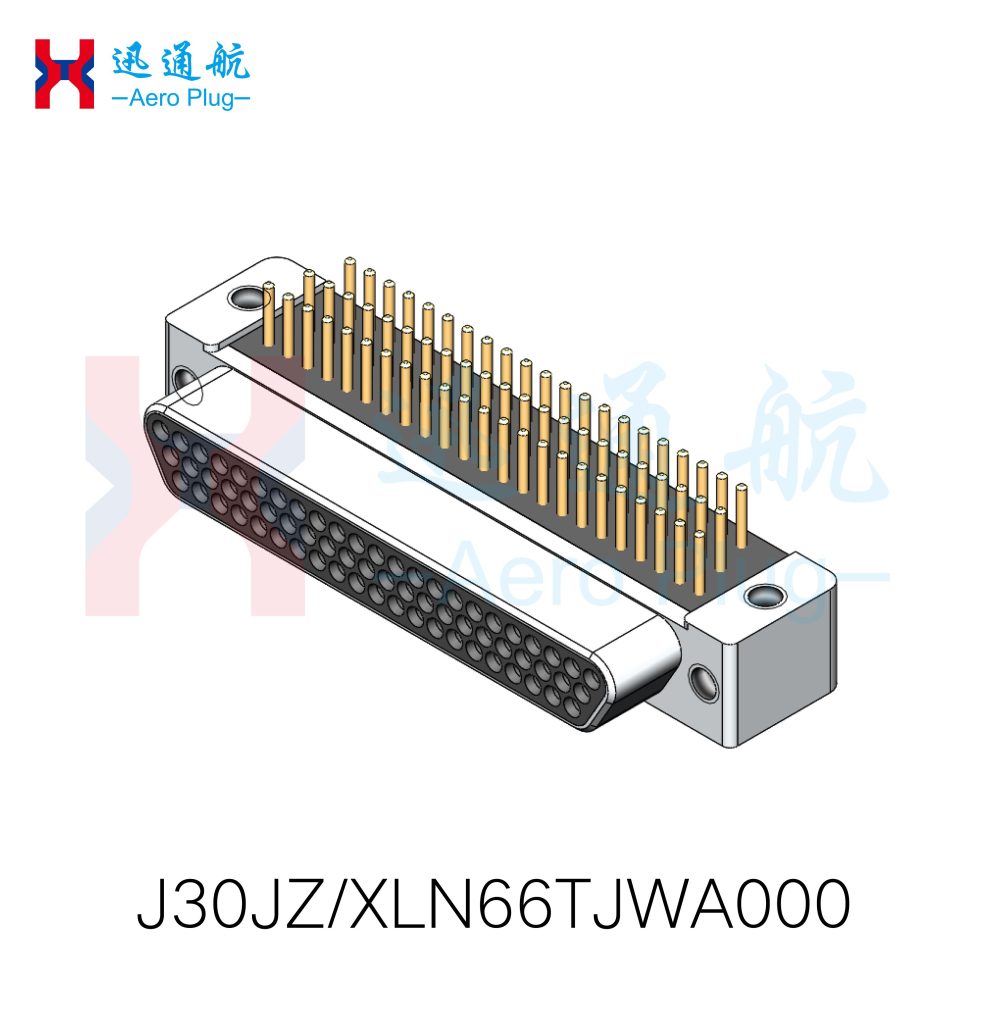

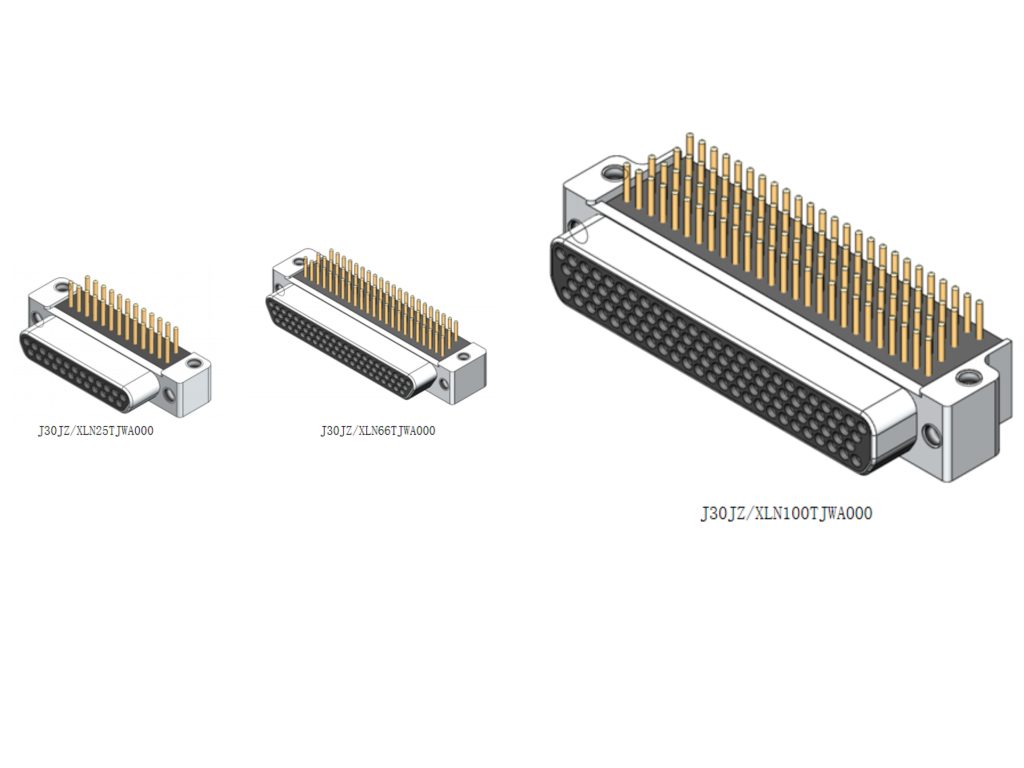

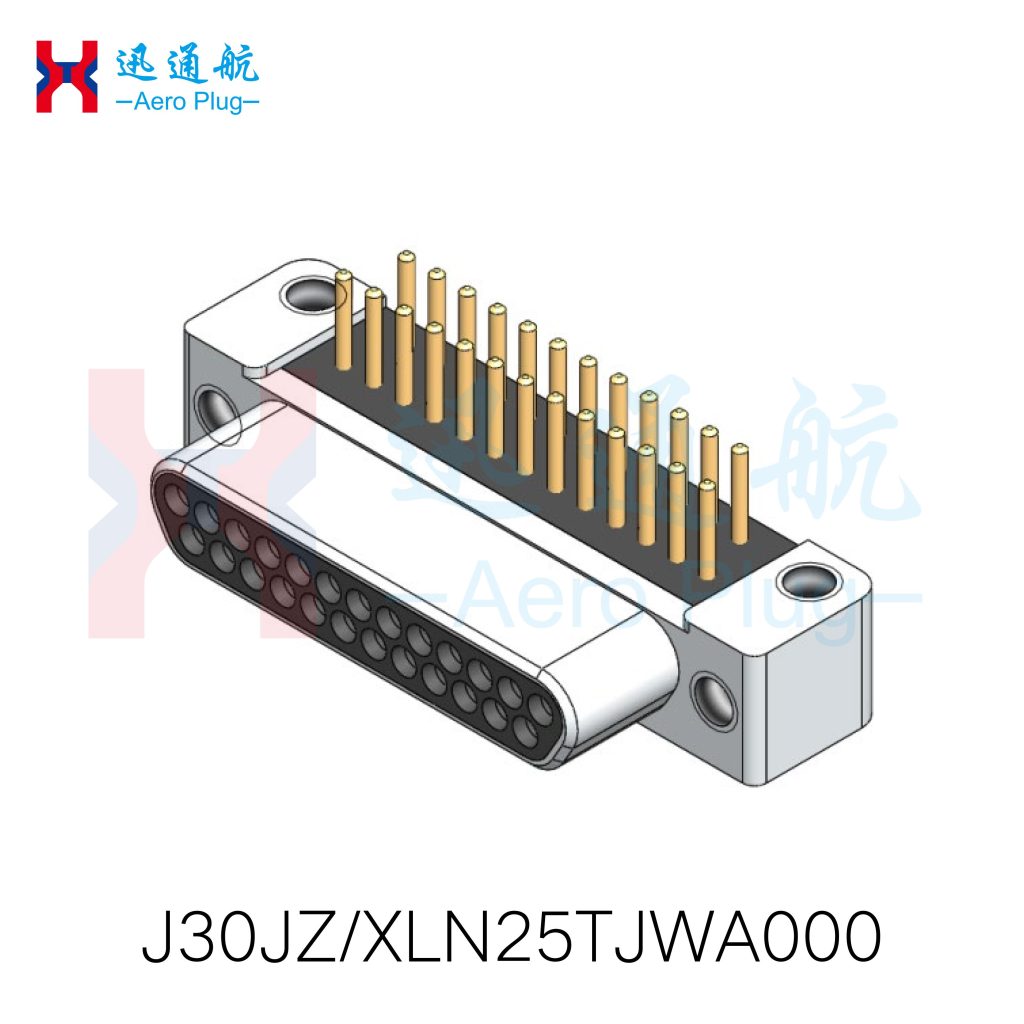

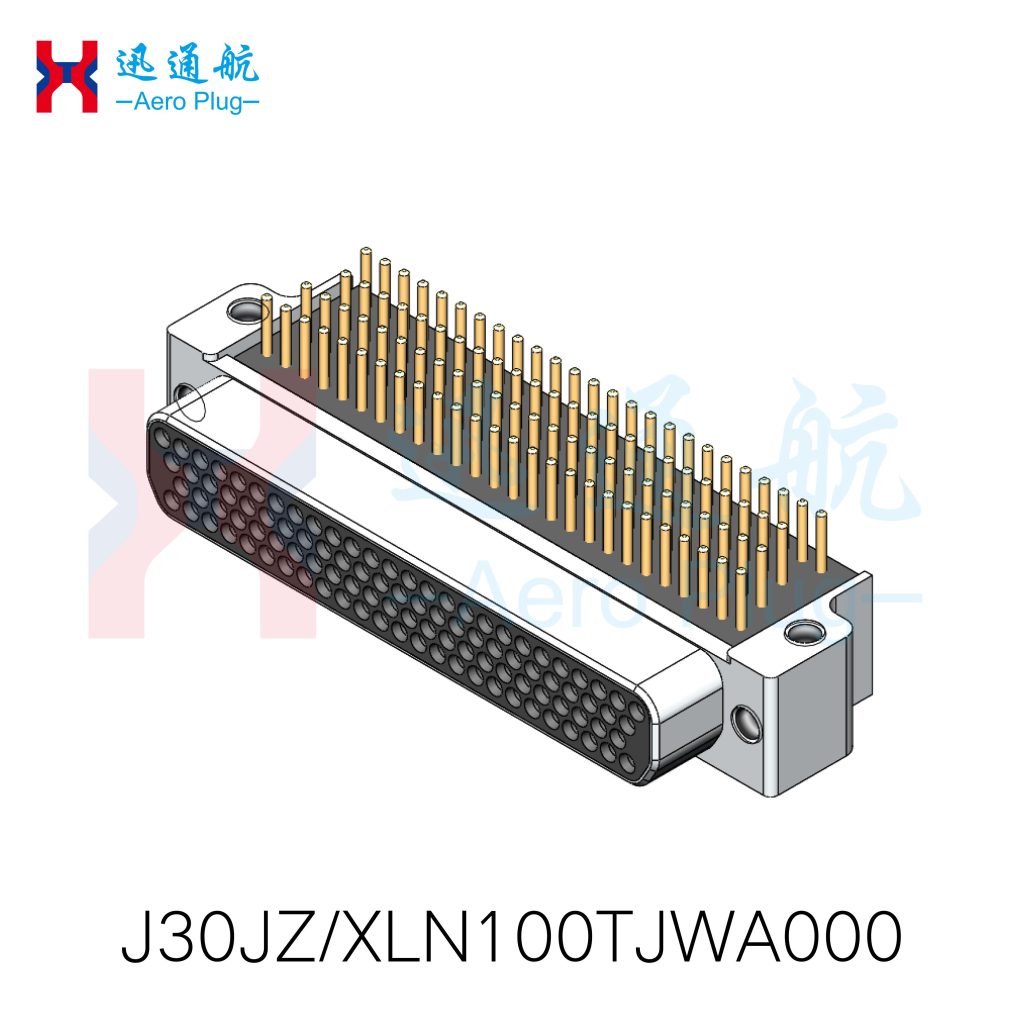

Product Stereogram

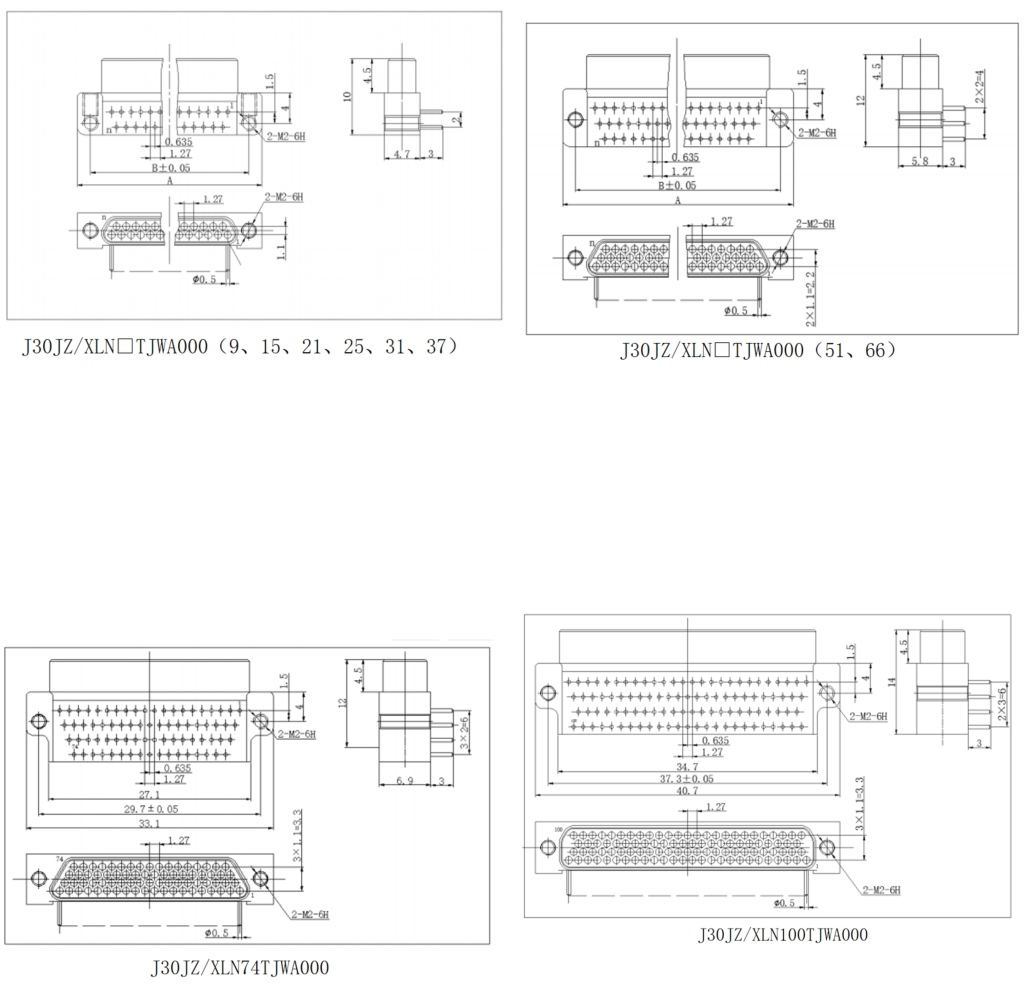

Product Outline Dimension Drawing
| Order Mark | A | B | n |
| J30JZ/XLN9TJWA000 | 14 | 10.6 | 9 |
| J30JZ/XLN15TJWA000 | 17.8 | 14.4 | 15 |
| J30JZ/XLN21TJWA000 | 21.6 | 18.2 | 21 |
| J30JZ/XLN25TJWA000 | 24.2 | 20.8 | 25 |
| J30JZ/XLN31TJWA000 | 28 | 24.6 | 31 |
| J30JZ/XLN37TJWA000 | 31.8 | 28.4 | 37 |
| J30JZ/XLN51TJWA000 | 30.5 | 27.1 | 51 |
Please contact us for more information about this product.
