J30JB-□TJ-Q41/J30JB-□TJ-Q24-2
J30JB-9、15、21、25、31、37TJ-Q41-1 J30J-9、15、21、25、31、37TJ-Q42-2 (Plug)

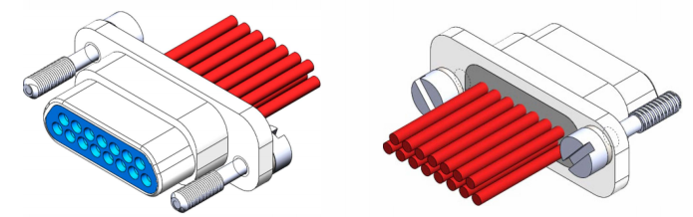

Product Stereogram

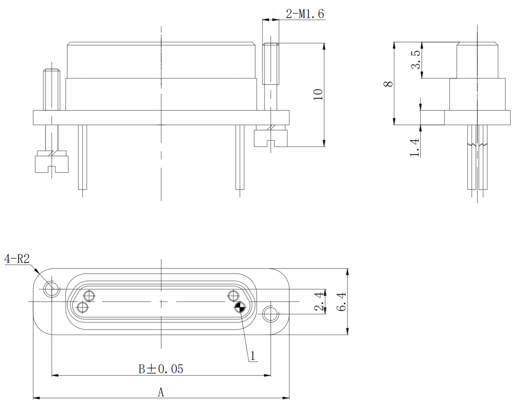

Product Model Dimensional Drawing
| Product Model | A | B | Matched Socket Model |
| J30JB-9TJ-Q24-1J30J-9TJ-Q24-2 | 14.7 | 11 | J30JMI-9ZKH3-Q6 |
| J30JB-15TJ-Q24-1J30J-15TJ-Q24-2 | 18.45 | 14.85 | J30JMI-15ZKH3-Q6 |
| J30JB-21TJ-Q24-1J30J-21TJ-Q24-2 | 22.3 | 18.7 | J30JMI-21ZKH3-Q6 |
| J30JB-25TJ-Q24-1J30J-25TJ-Q24-2 | 24.8 | 21.2 | J30JMI-25ZKH3-Q6 |
| J30JB-31TJ-Q24-1J30J-31TJ-Q24-2 | 28.6 | 25 | J30JMI-31ZKH3-Q6 |
| J30JB-37TJ-Q24-1J30J-37TJ-Q24-2 | 32.4 | 28.8 | J30JMI-37ZKH3-Q6 |
Please contact us for more information about this product.
