Type: J30J Right-Angle PCB Type W-J

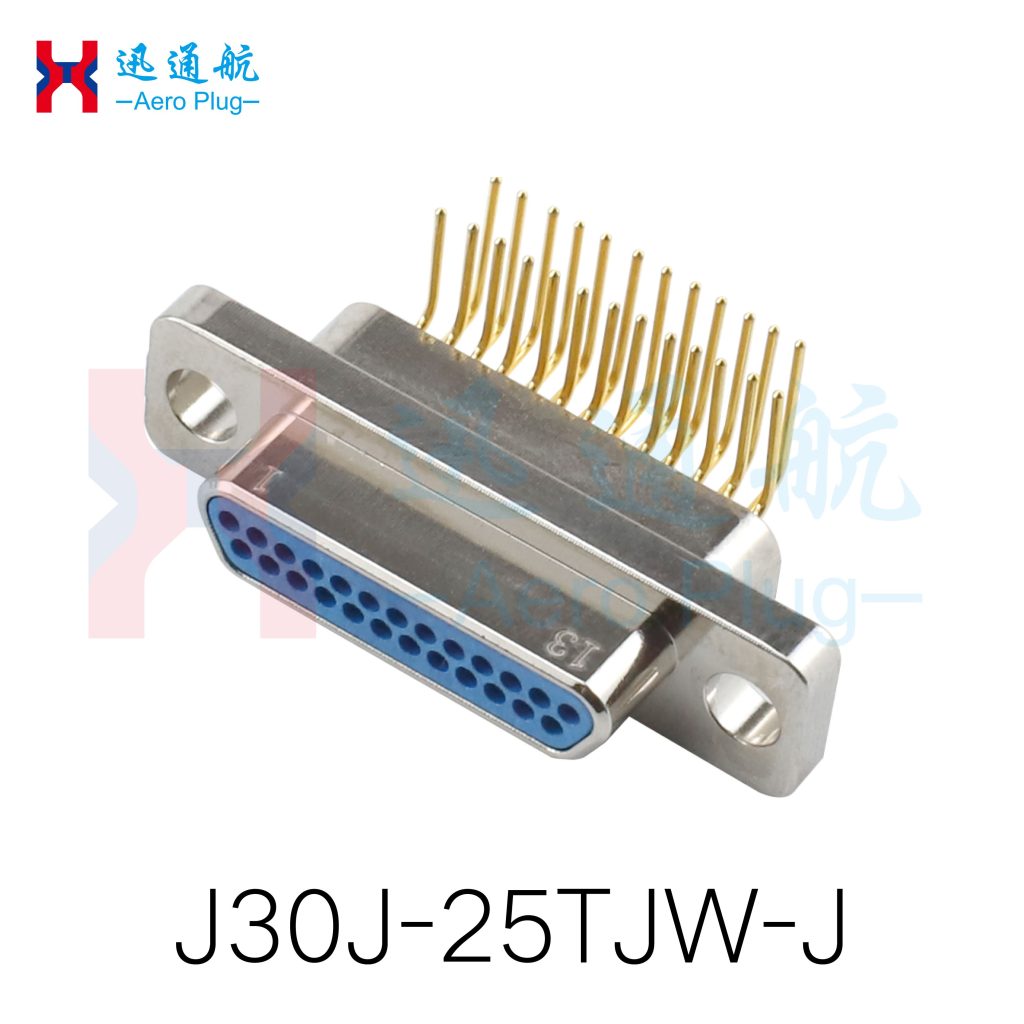

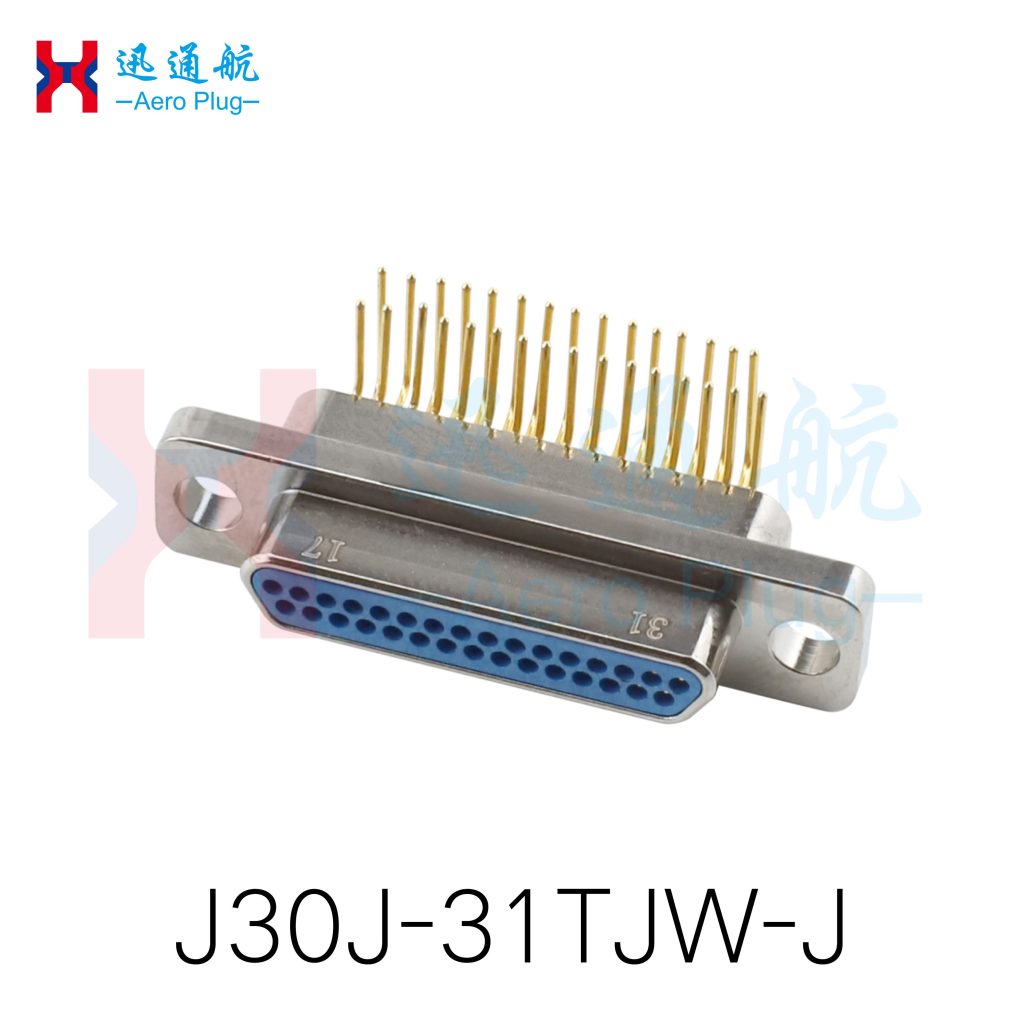

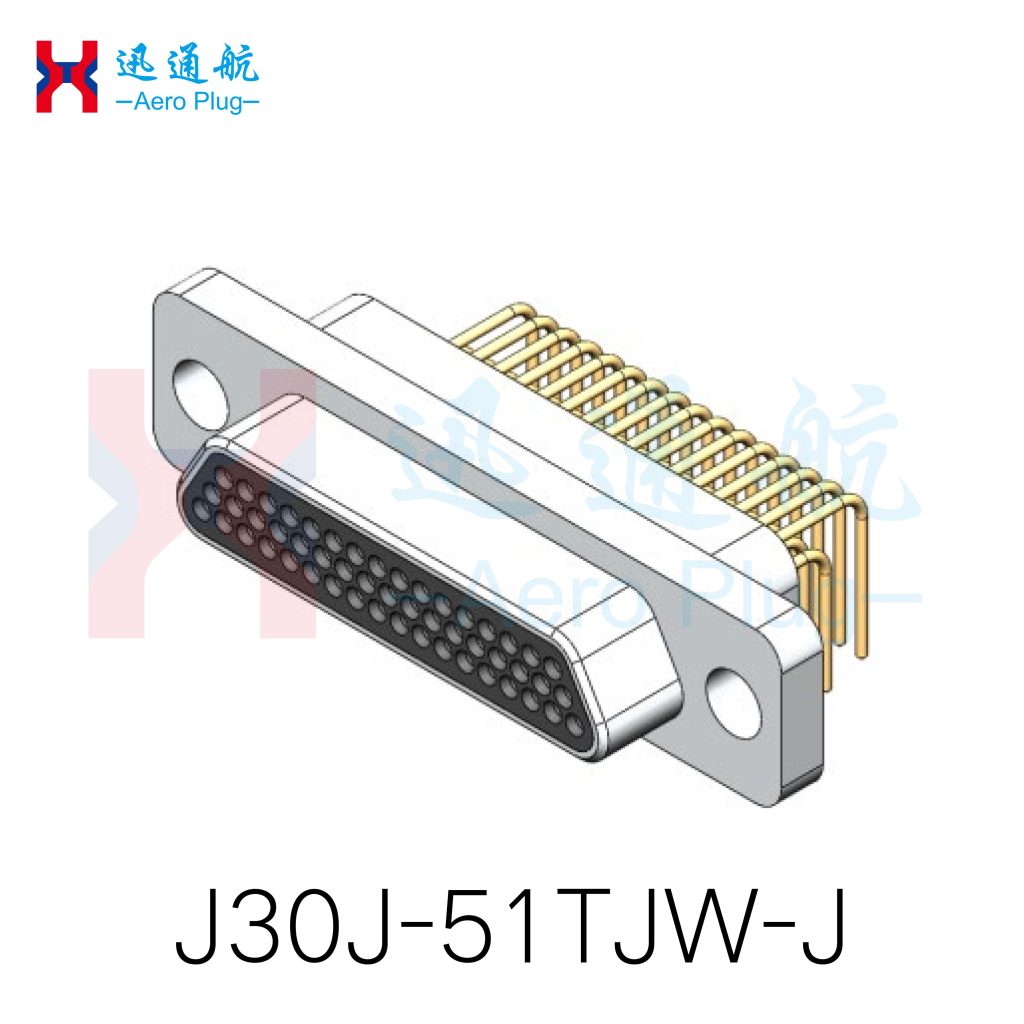

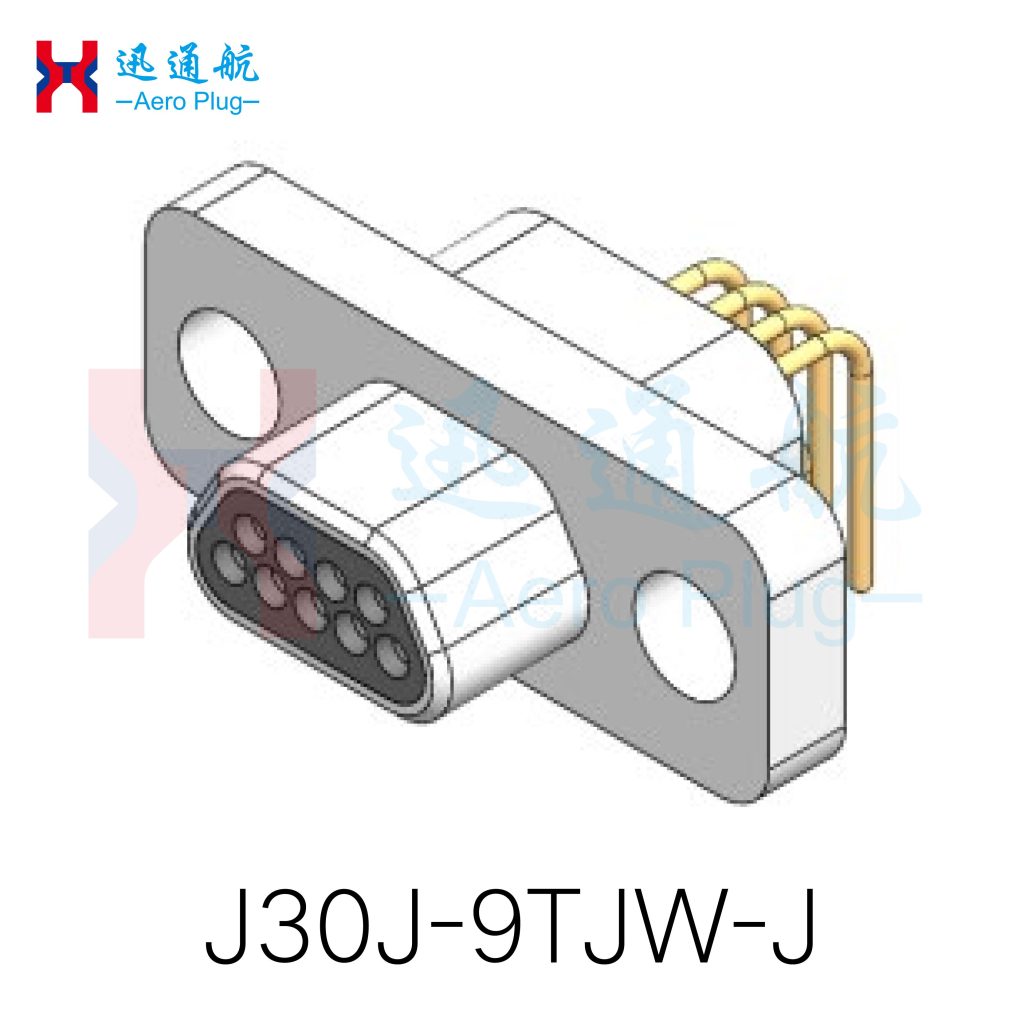

J30J-9、15、21、25、31、37、51TJW-J (Plug)

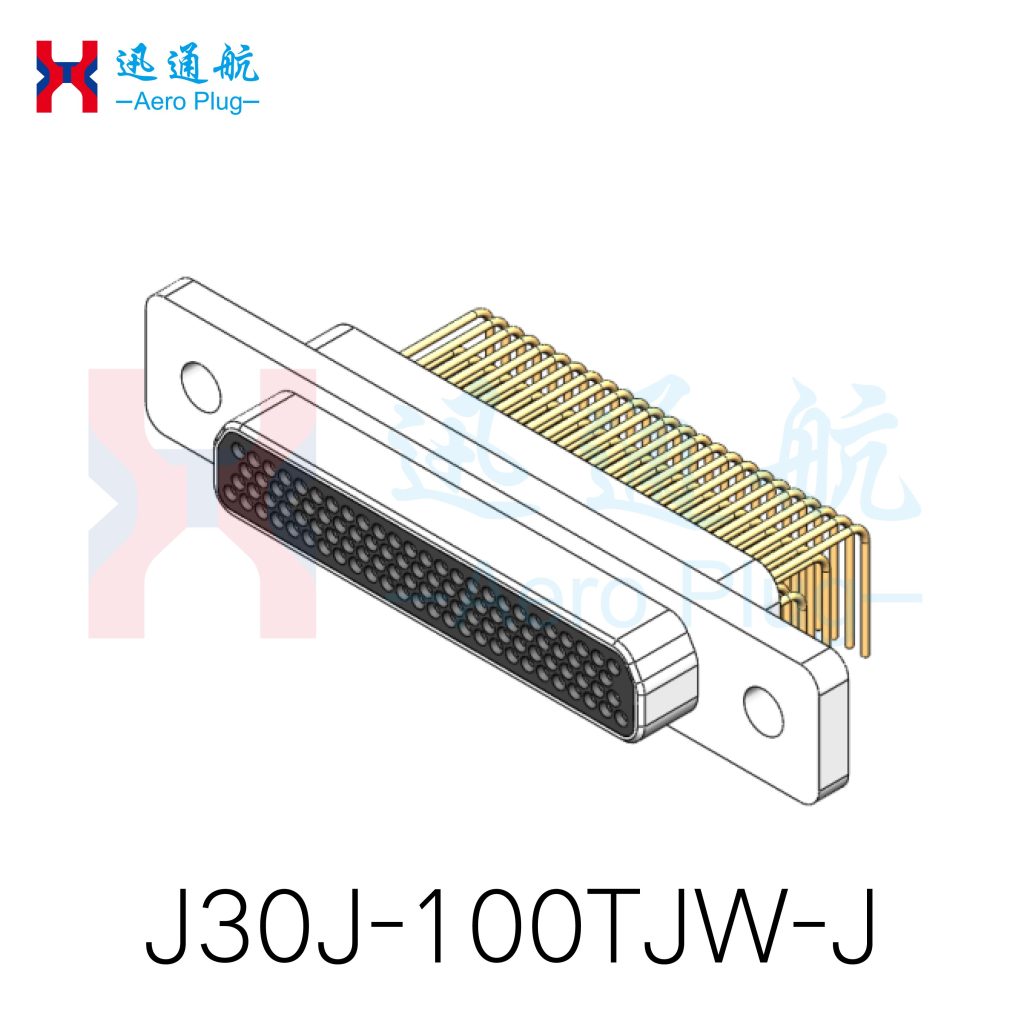

Left Views of Plug Assemblies with Various Contact Counts for J30J-9～100TJW-J
J30J Right-Angle Insertion PCB W-J Type J30J-TJW-J
| Order mark | A | B | C | D | E |
| J30J-9TJW-J | 19.6 | 14.3 | 7.6 | 8.3(TJN-J) | 9.9 |
| J30J-15TJW-J | 23.5 | 18.2 | 7.6 | 12.3(TJN-J) | 13.8 |
| J30J-21TJW-J | 27.4 | 22 | 7.6 | 16(TJN-J) | 17.6 |
| J30J-25TJW-J | 29.8 | 24.5 | 7.6 | 18.6(TJN-J) | 20.2 |
| J30J-31TJW-J | 33.6 | 28.3 | 7.6 | 22.4(TJN-J) | 24 |
| J30J-37TJW-J | 37.4 | 32.2 | 7.6 | 26.3(TJN-J) | 27.8 |
| J30J-51TJW-J | 36.4 | 30.86 | 8.7 | 25(TJN-J) | 26.6 |
| J30J-66TJW-J | 42.9 | 37.3 | 8.7 | 31.4(TJN-J) | 33 |
| J30J-74TJW-J | 38.8 | 33.5 | 9.7 | 27.5(TJN-J) | 29.1 |
| J30J-100TJW-J | 54.7 | 45.7 | 9.7 | 35(TJN-J) | 36.6 |

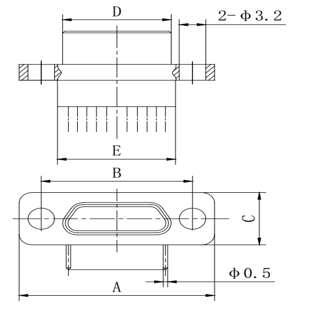

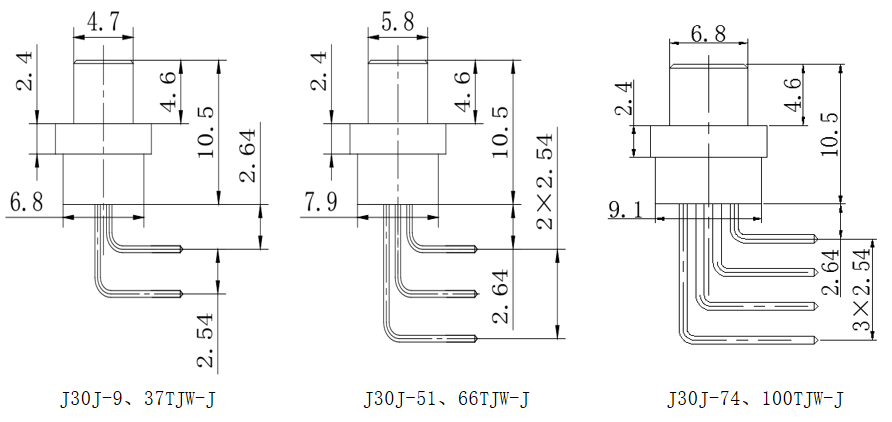

Product external dimensions
Please contact us for more information about this product.
