Type: J30J Direct PCB Type N-J

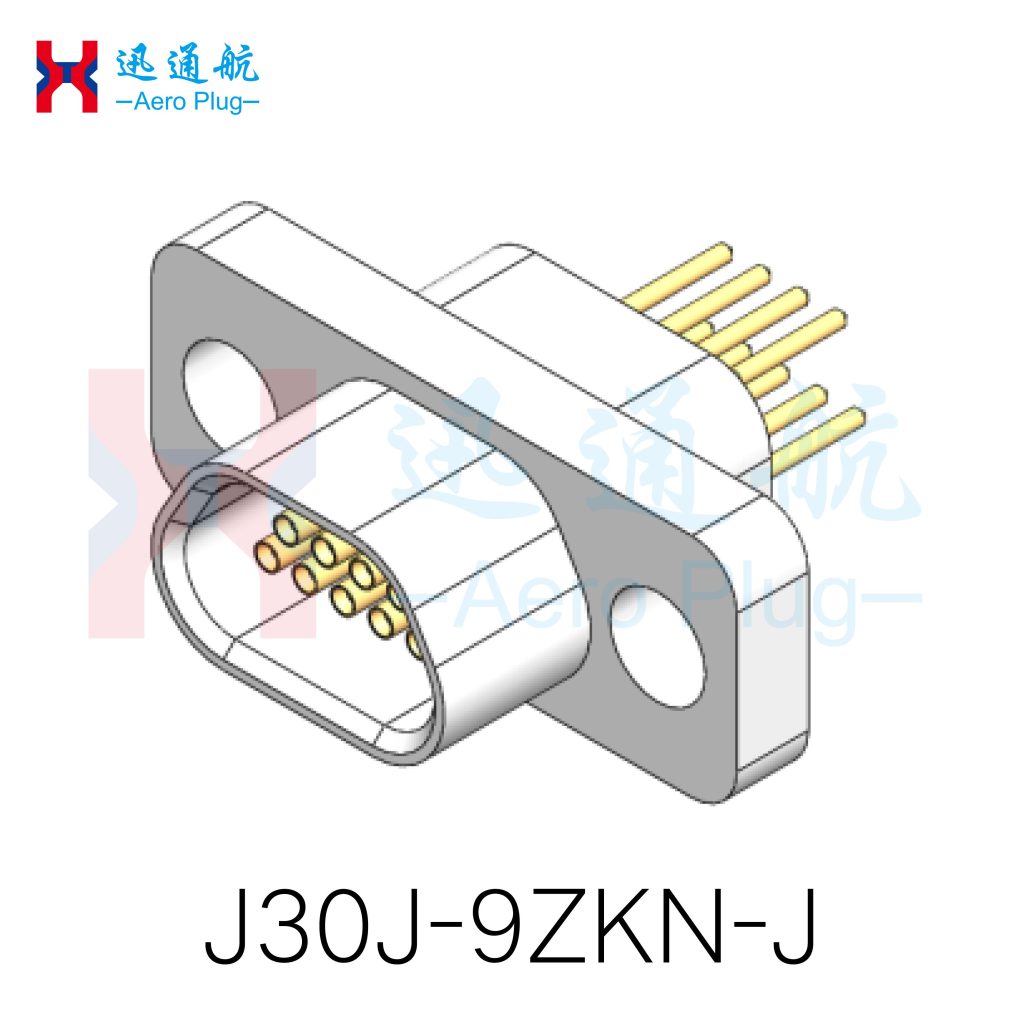

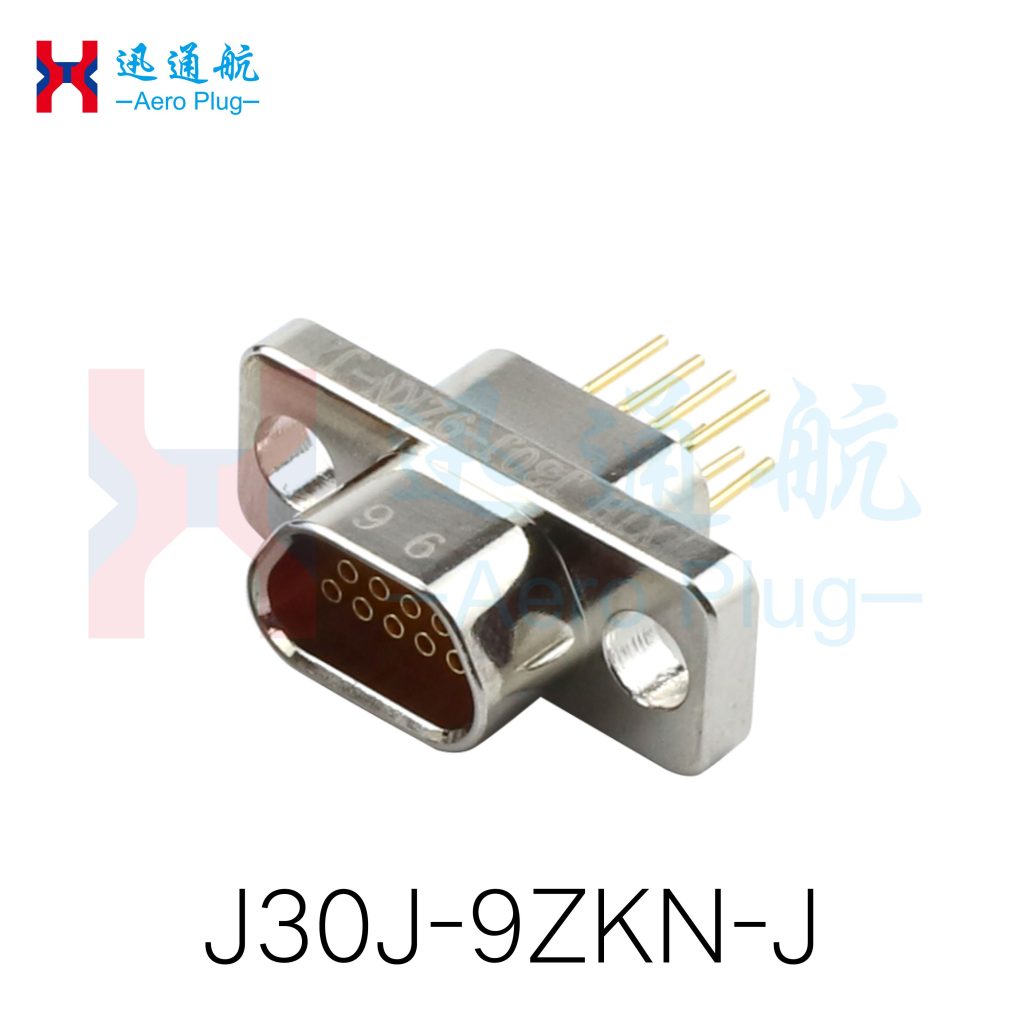

J30J-9 、15、21、25、31 、37、51ZKN-J (Socket)

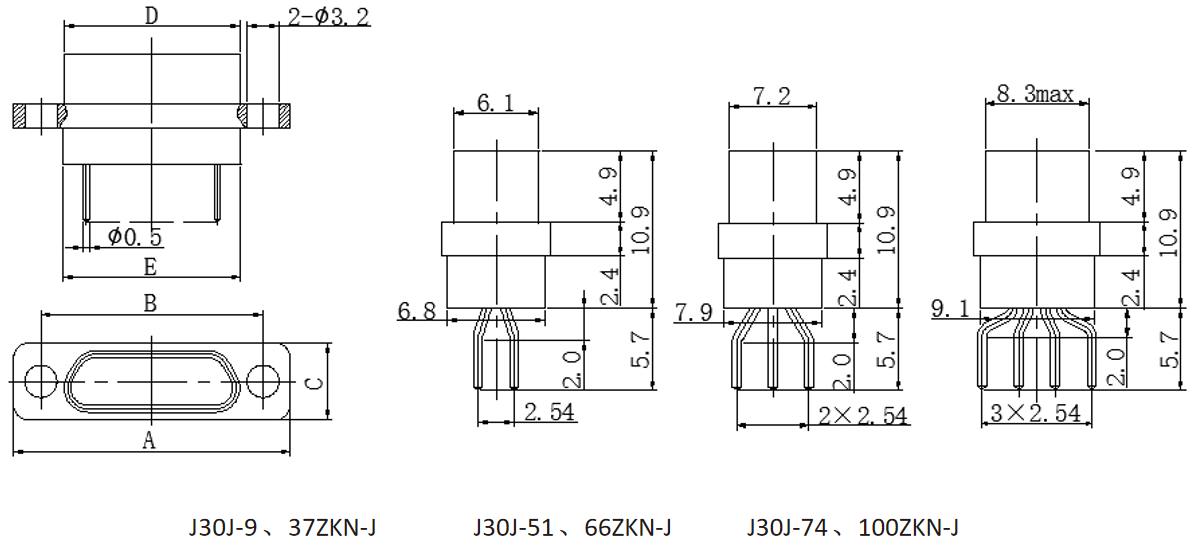

Product Overall Dimensions and Left Views of Sockets with Various Contact Counts
J30J Through-Hole PCB N-J Type J30J-ZKN-J
| Order mark | A | B | C | D | E |
| J30J-9ZKN-J | 19.6 | 14.3 | 7.6 | 9.8（ZKN-J） | 9.9 |
| J30J-15ZKN-J | 23.5 | 18.2 | 7.6 | 13.7（ZKN-J） | 13.8 |
| J30J-21ZKN-J | 27.4 | 22 | 7.6 | 17.4（ZKN-J） | 17.6 |
| J30J-25ZKN-J | 29.8 | 24.5 | 7.6 | 20（ZKN-J） | 20.2 |
| J30J-31ZKN-J | 33.6 | 28.3 | 7.6 | 23.8（ZKN-J） | 24 |
| J30J-37ZKN-J | 37.4 | 32.2 | 7.6 | 27.7（ZKN-J） | 27.8 |

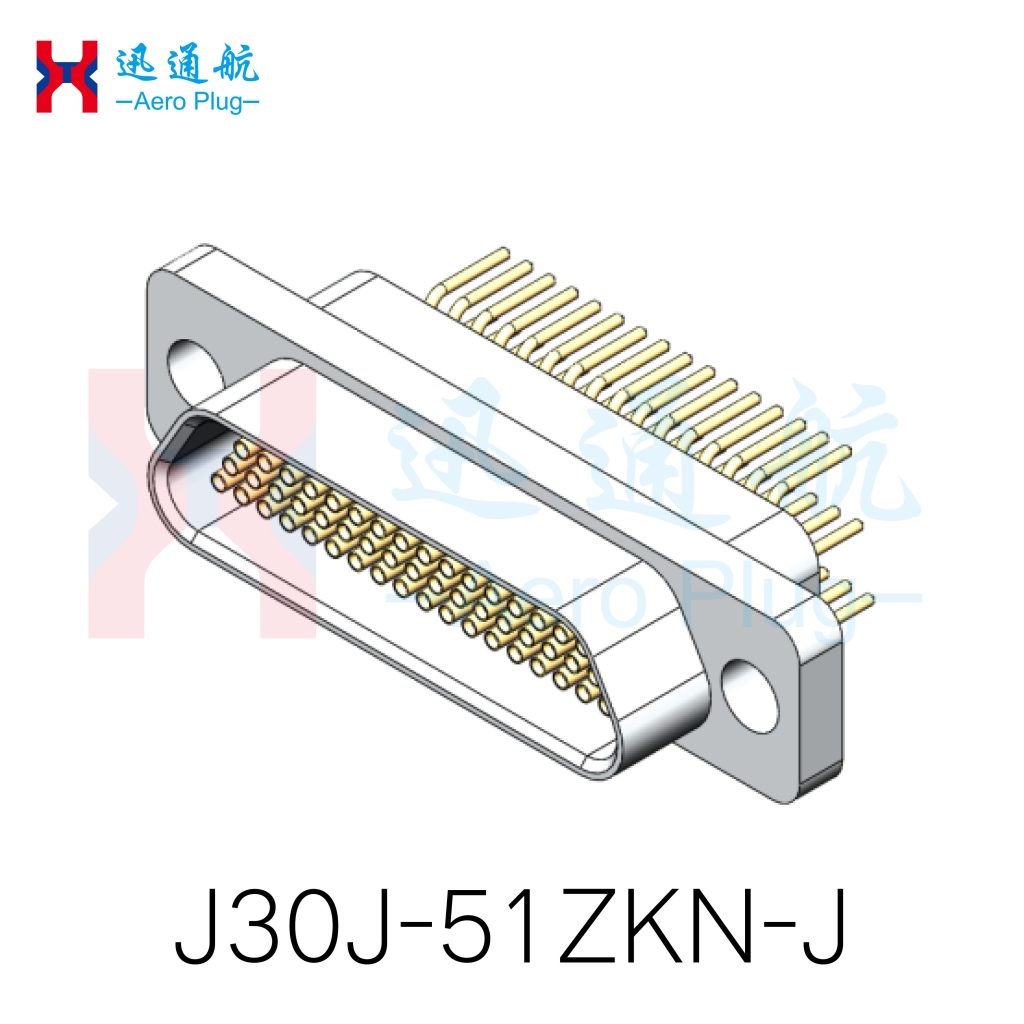

| J30J-51ZKN-J | 36.4 | 30.86 | 8.7 | 26.5（ZKN-J） | 26.6 |
| J30J-66ZKN-J | 42.9 | 37.3 | 8.7 | 32.9(ZKN-J) | 33 |
| J30J-74ZKN-J | 38.8 | 33.5 | 9.7 | 29(ZKN-J) | 29.1 |

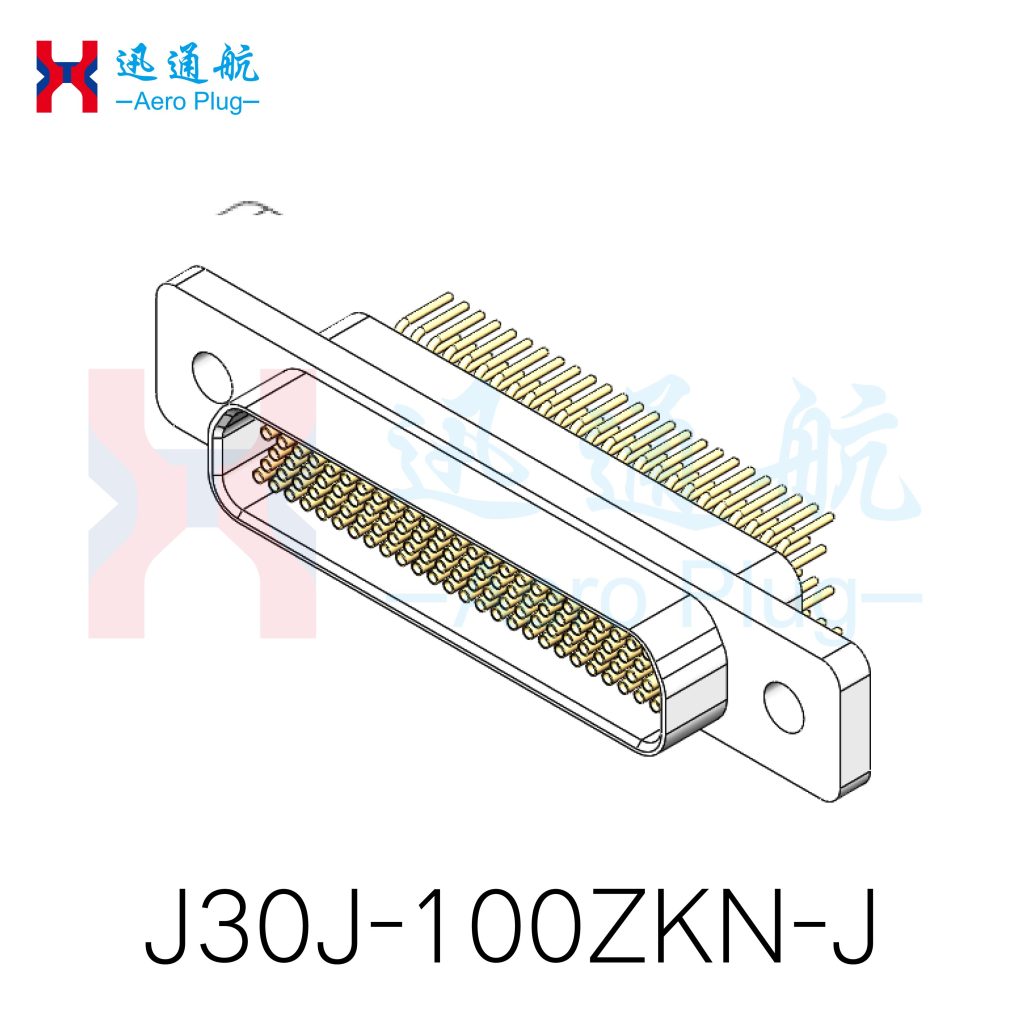

| J30J-100ZKN-J | 54.7 | 45.7 | 9.7 | 36.6(ZKN-J) | 36.6 |
Please contact us for more information about this product.
