Type:Straight PCB Mount Type
Category:
J30J口口P口口口S口口口N10000 (Plug)

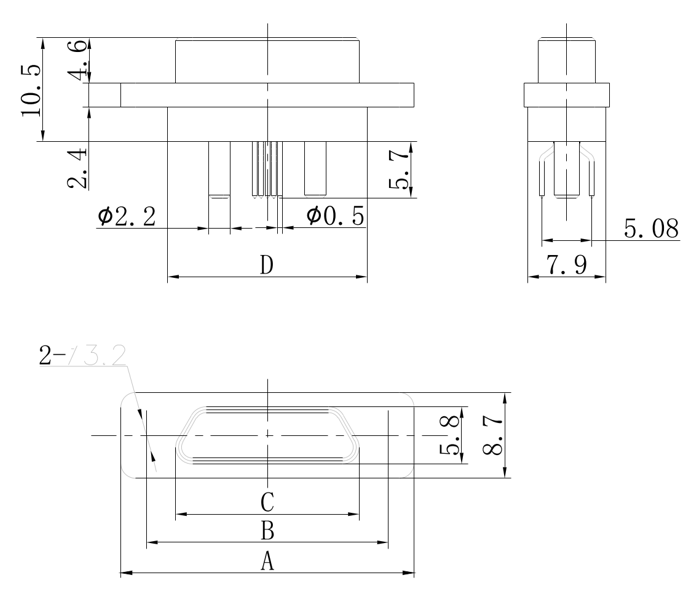

Product external dimensions:
| Plug Model | Dimensions | |||
| A | B | C | D | |
| J30J02P020S000N10000 | 23.2 | 18.8 | 12.9 | 14.5 |
| J30J03P030S000N10000 | 27.3 | 22.9 | 17 | 18.6 |

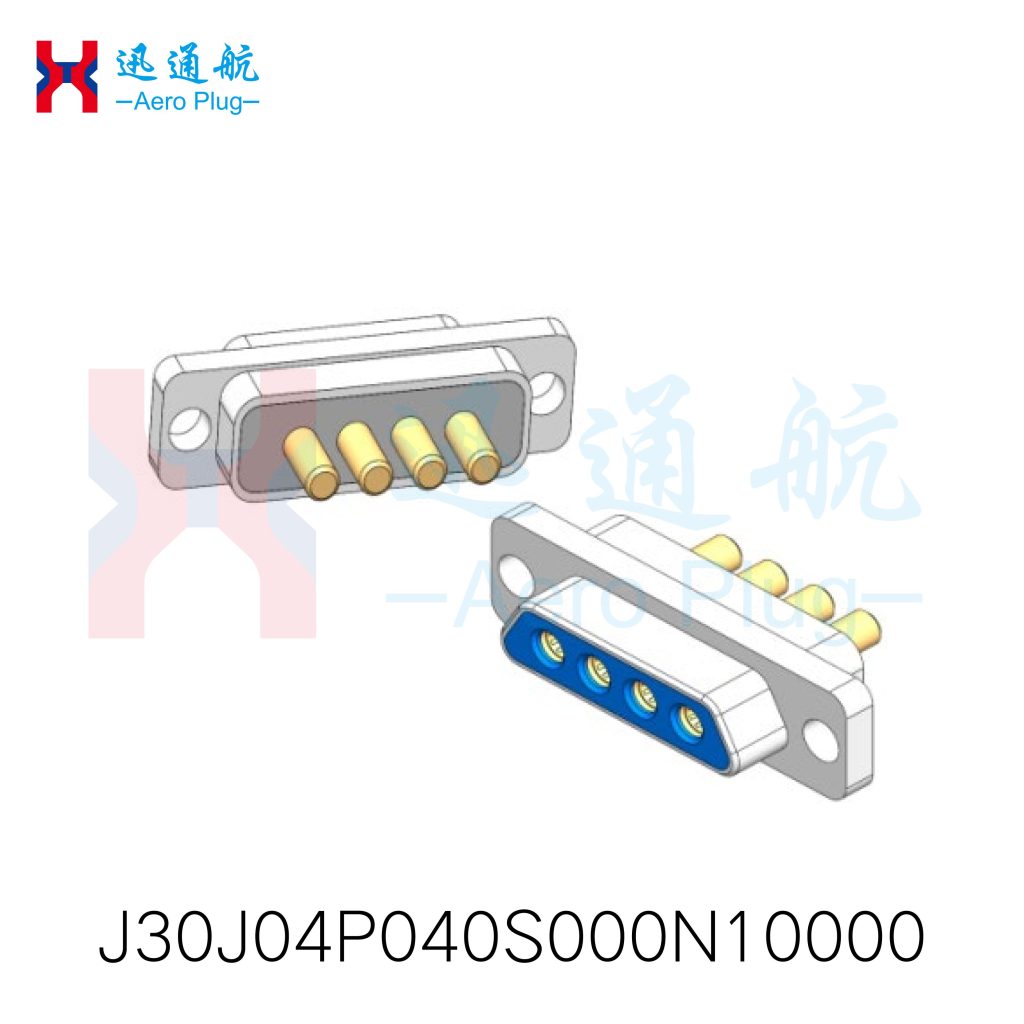

| J30J04P040S000N10000 | 31.4 | 27 | 21.1 | 22.7 |
| J30J05P050S000N10000 | 36.3 | 30.9 | 25 | 26.6 |
| J30J06P060S000N10000 | 39.6 | 35.2 | 29.3 | 30.9 |
| J30J07P070S000N10000 | 43.7 | 39.3 | 33.4 | 35 |
| J30J08P080S000N10000 | 47.8 | 43.4 | 37.5 | 39.1 |
| J30J09P090S000N10000 | 51.9 | 47.5 | 41.6 | 43.2 |
| J30J10P100S000N10000 | 56 | 51.6 | 45.7 | 47.3 |

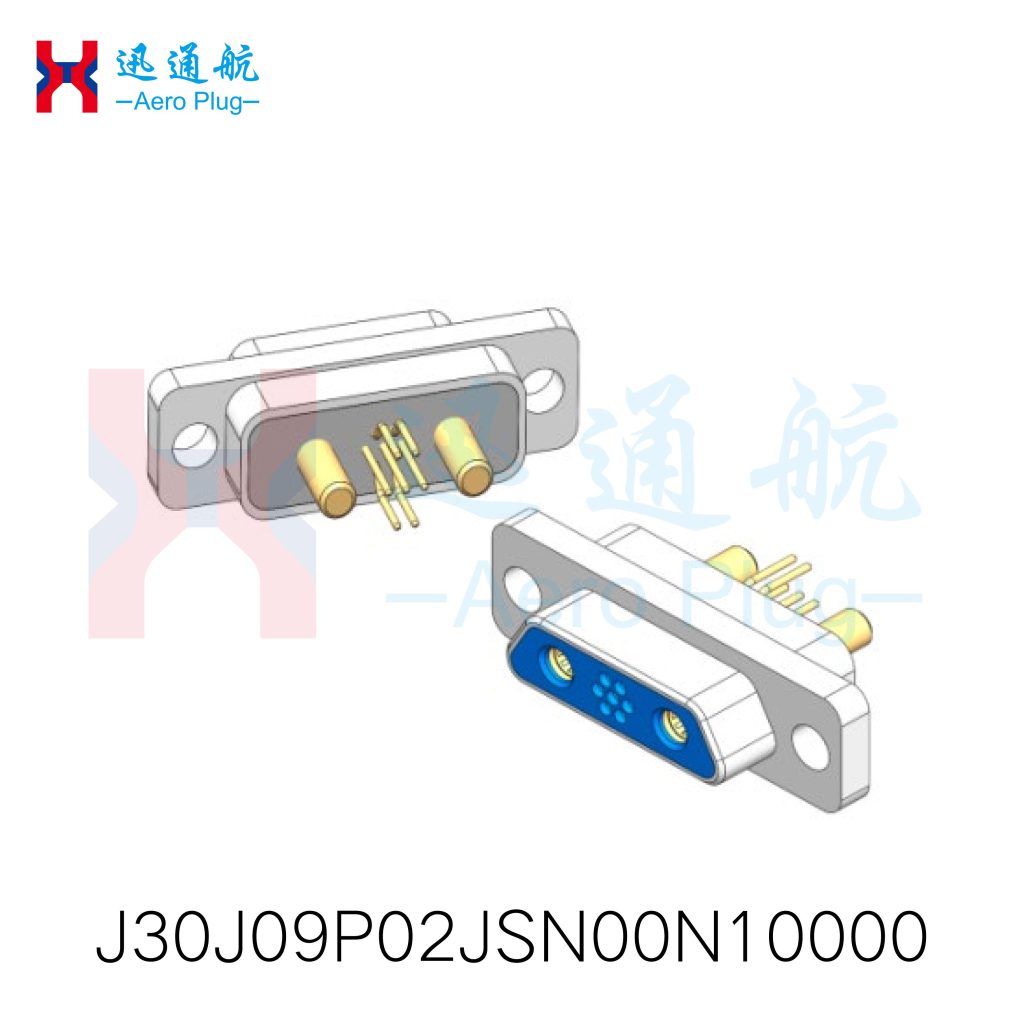

| J30J09P02JSN01N10000 | 29.7 | 24.5 | 18.6 | 20.2 |
| J30J11P04JSN01N10000 | 36.3 | 30.9 | 25 | 26.6 |
| J30J21P02JSN01N10000 | 36.3 | 30.9 | 25 | 26.6 |
| J30J25P02JSN01N10000 | 36.3 | 30.9 | 25 | 26.6 |
| J30J27P02JSN01N10000 | 36.3 | 30.9 | 25 | 26.6 |
| J30J39P02JSN01N10000 | 42.8 | 37.3 | 31.4 | 33 |
