J30J-9、15、21、25、31、37、51、66、74、100TJ-C (Plug)

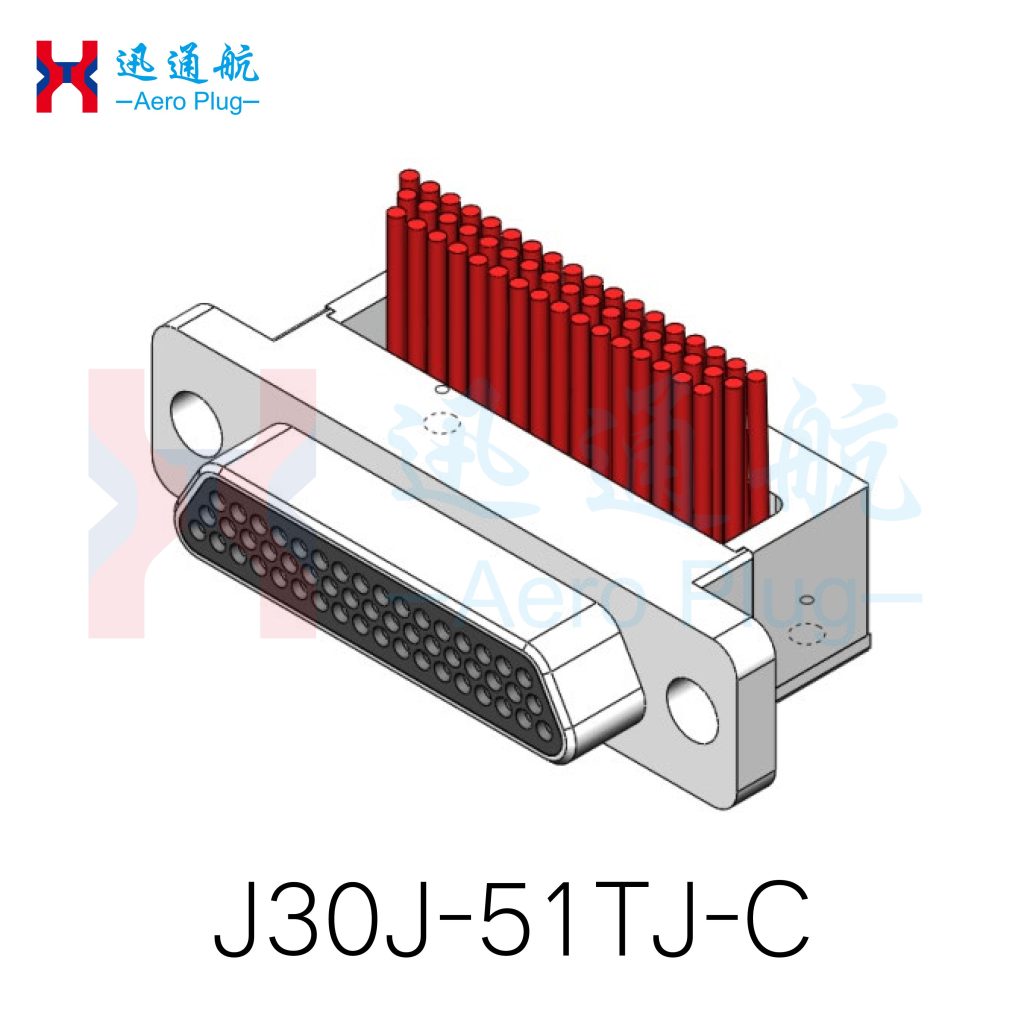

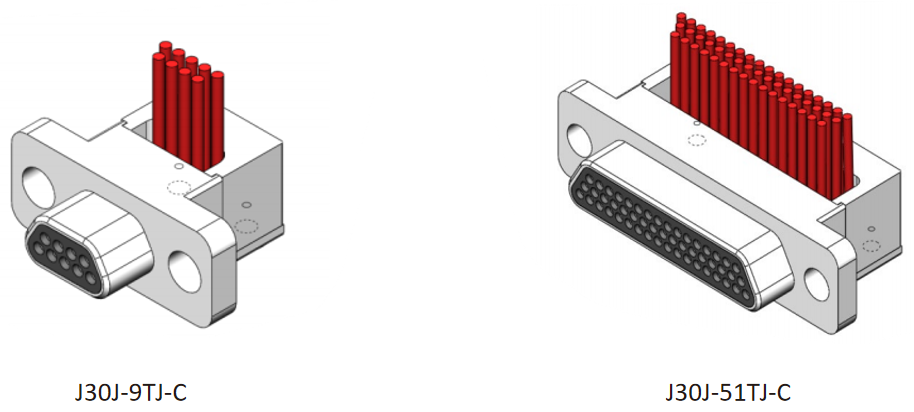

Product Stereogram
Product Overall Dimensions
J30J-TJ-C
| Order mark | A | B | C | D | E | H |
| J30J-9TJ-C | 19.6 | 14.3 | 8.3 | 9.9 | 8 | 16.5 |
| J30J-15TJ-C | 23.5 | 18.2 | 12.3 | 13.8 | 8 | 16.5 |
| J30J-21TJ-C | 27.4 | 22 | 16 | 17.6 | 8 | 16.5 |
| J30J-25TJ-C | 29.8 | 24.5 | 18.6 | 20.2 | 8 | 16.5 |
| J30J-31TJ-C | 33.6 | 28.3 | 22.4 | 24 | 8 | 16.5 |
| J30J-37TJ-C | 37.4 | 32.2 | 26.3 | 27.8 | 8 | 16.5 |
| J30J-51TJ-C | 36.4 | 30.86 | 25 | 26.6 | 9 | 17.8 |
| J30J-66TJ-C | 42.9 | 37.3 | 31.4 | 33 | 9 | 17.8 |
| J30J-74TJ-C | 38.8 | 33.5 | 27.5 | 29.1 | 11 | 19.4 |
| J30J-100TJ-C | 54.7 | 45.7 | 35 | 36.8 | 11 | 19.4 |
Please contact us for more information about this product.
