J30 PCB Mount Basic Type\J30 Straight PCB Mount Type N

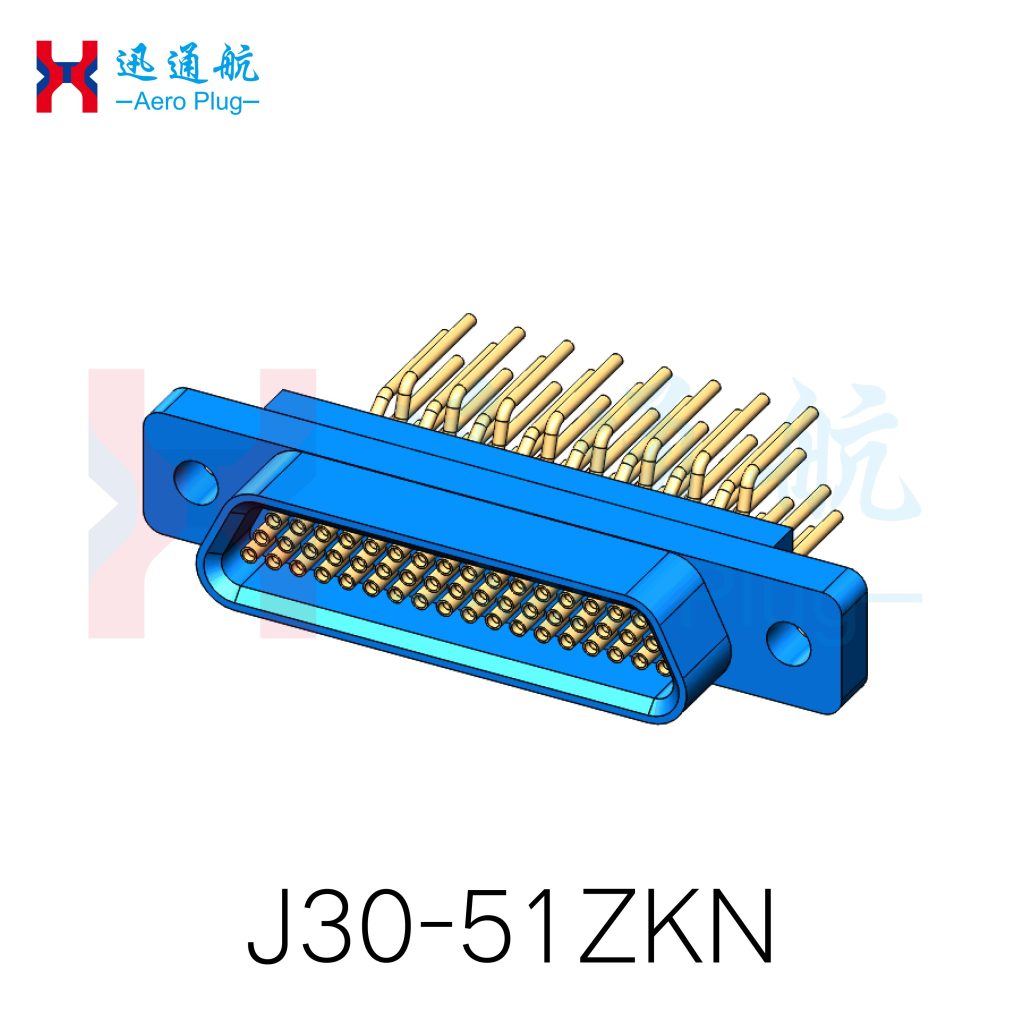

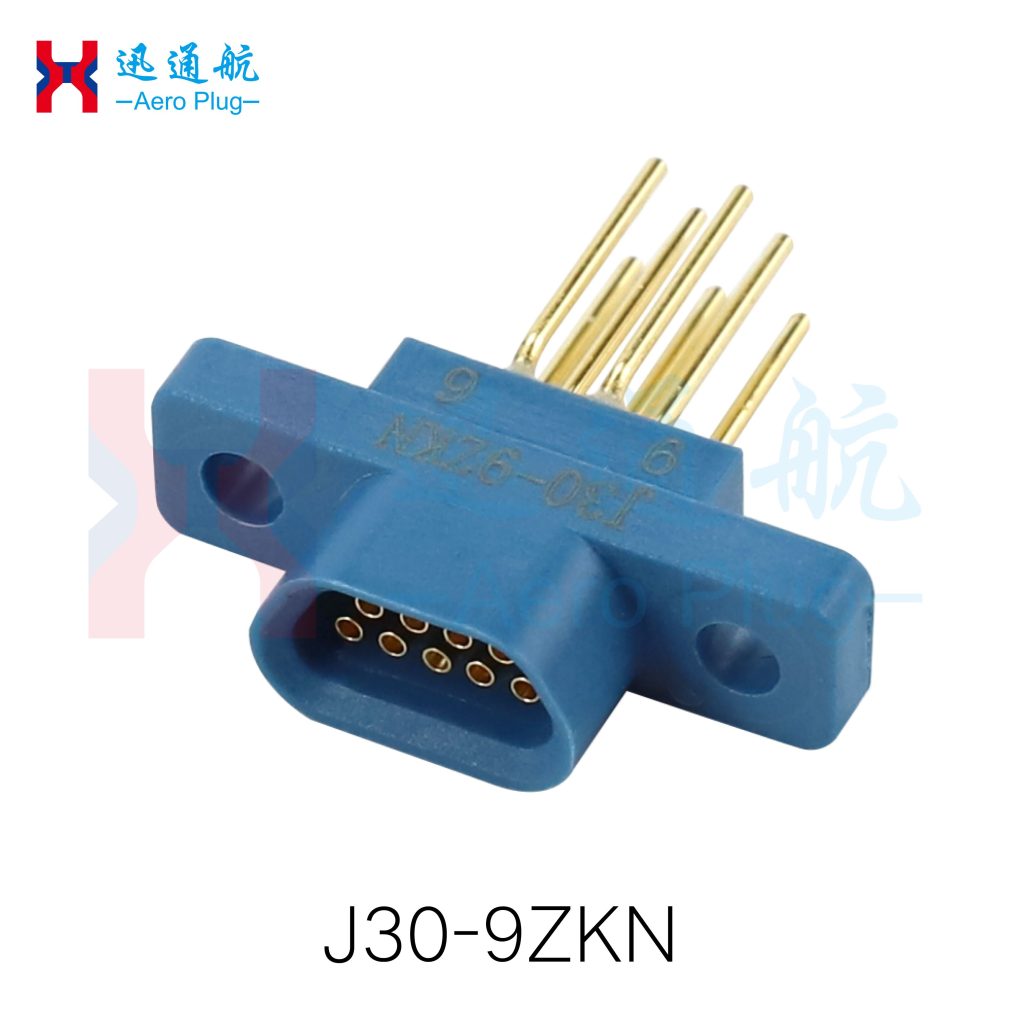

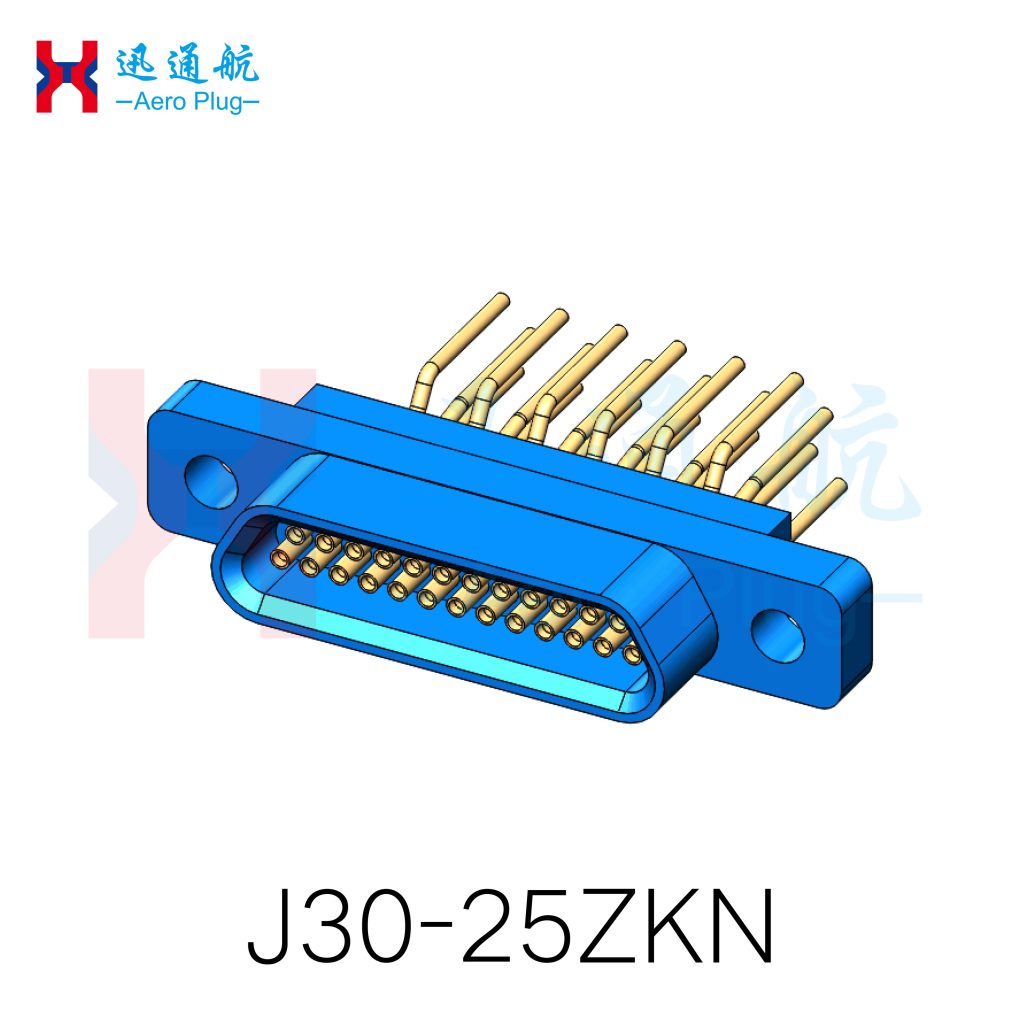

J30-9、15、21、25、31、37、51ZKN (Socket)

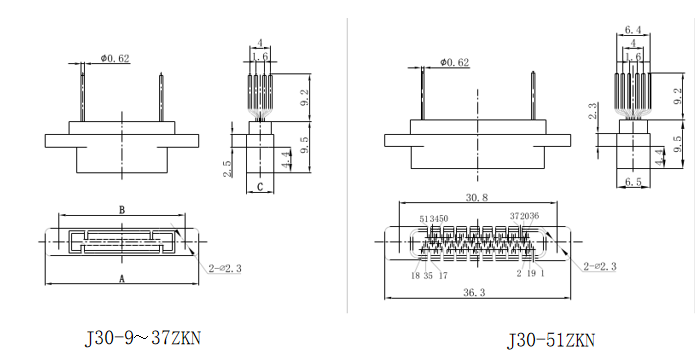

Product Overall Dimensions
J30-ZKN
| Order mark | A | B | C |
| J30-9ZKN | 19.8 | 14.3 | 5.4 |
| J30-15ZKN | 23.6 | 18.2 | 5.4 |
| J30-21ZKN | 27.5 | 22 | 5.4 |
| J30-25ZKN | 30 | 24.5 | 5.4 |
| J30-31ZKN | 33.7 | 28.3 | 5.4 |
| J30-37ZKN | 37.5 | 32.2 | 5.4 |
Please contact us for more information about this product.
