J29A Standard Type/ Right-Angle PCB Mount W1 Series
J29A-9、15、21、25、31、37、51、66TJW1 (Plug)
Feature: PCB hole spacing: 3.82×2.54

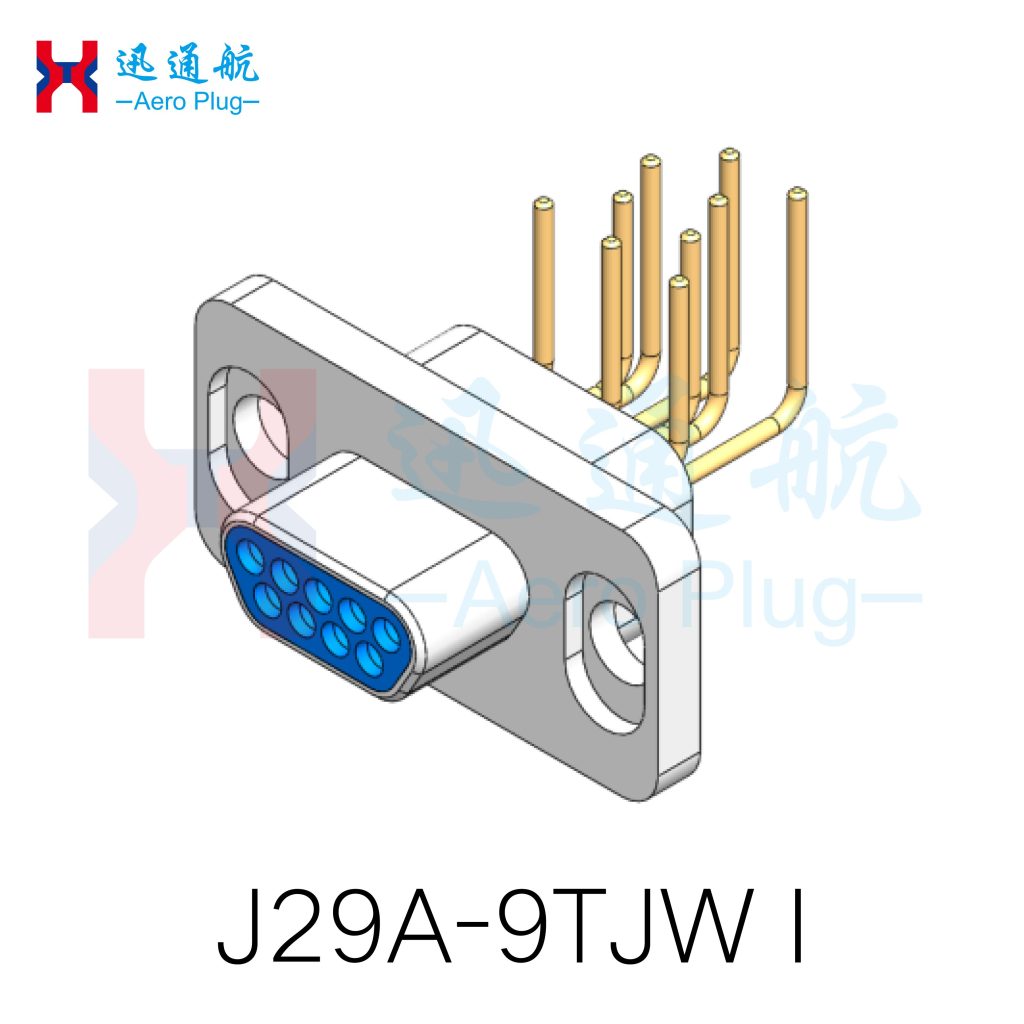

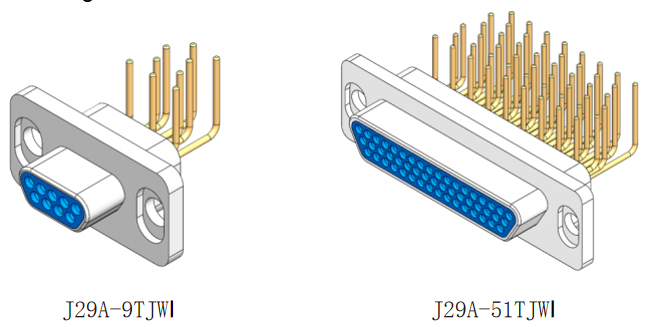

Product Stereogram

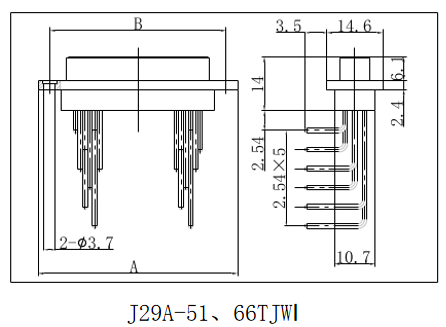

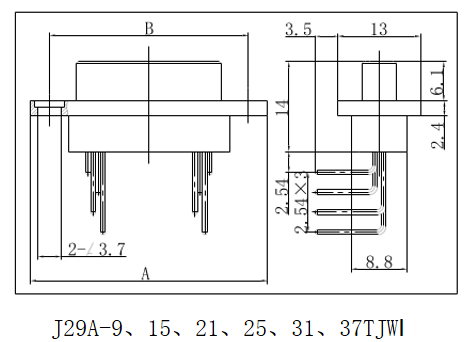

Product Outline Dimension Drawing
Product Outline Dimension Drawing
| series spectrum | A | B |
J29A-9TJWΙ | 26.1 | 20.1 |
J29A-15TJWΙ | 31.6 | 25.6 |
J29A-21TJWΙ | 37.3 | 31.3 |
J29A-25TJWΙ | 42 | 36 |
J29A-31TJWΙ | 47.8 | 41.8 |
J29A-37TJWΙ | 53.5 | 47.5 |
J29A-51TJWΙ | 52 | 46 |
J29A-66TJWΙ | 61.5 | 55.5 |
Please contact us for more information about this product.
