J29A Standard Type/ Straight PCB Mount N Series
J29A-9、15、21、25、31、37、51、66TJN (Plug)
Features: PCB pad spacing: 1.91×1.65 grid (column × row)

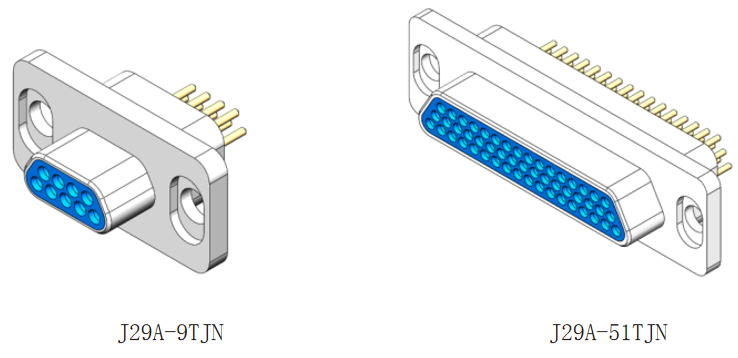

Product Stereogram

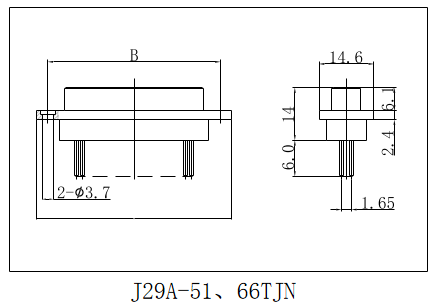

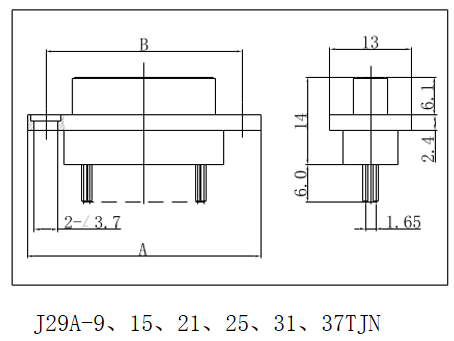

Product Outline Dimension Drawing
Product Outline Dimension Drawing
| series spectrum | A | B |
J29A-9TJN | 26.1 | 20.1 |
J29A-15TJN | 31.6 | 25.6 |
J29A-21TJN | 37.3 | 31.3 |
J29A-25TJN | 42 | 36 |
J29A-31TJN | 47.8 | 41.8 |
J29A-37TJN | 53.5 | 47.5 |
J29A-51TJN | 52 | 46 |
J29A-66TJN | 61.5 | 55.5 |
