J29A Standard Type/ J29A-A Right-Angle PCB Mount W Series
J29A-9、15、21、25、31、37、51、66TJW-A (Plug)
PCB hole pitch: 1.91×2.54 mm，Product housing modified; the width of the housing flange is flush with the tail end.

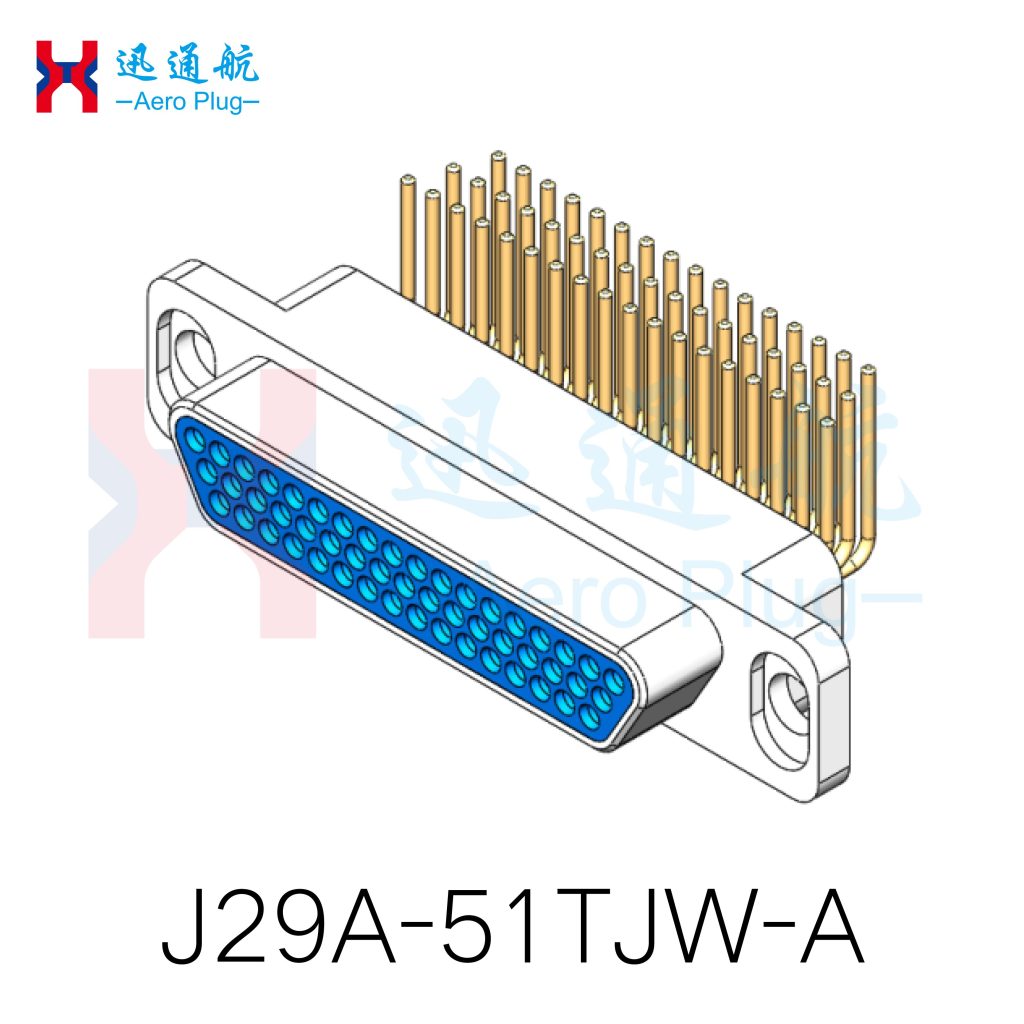

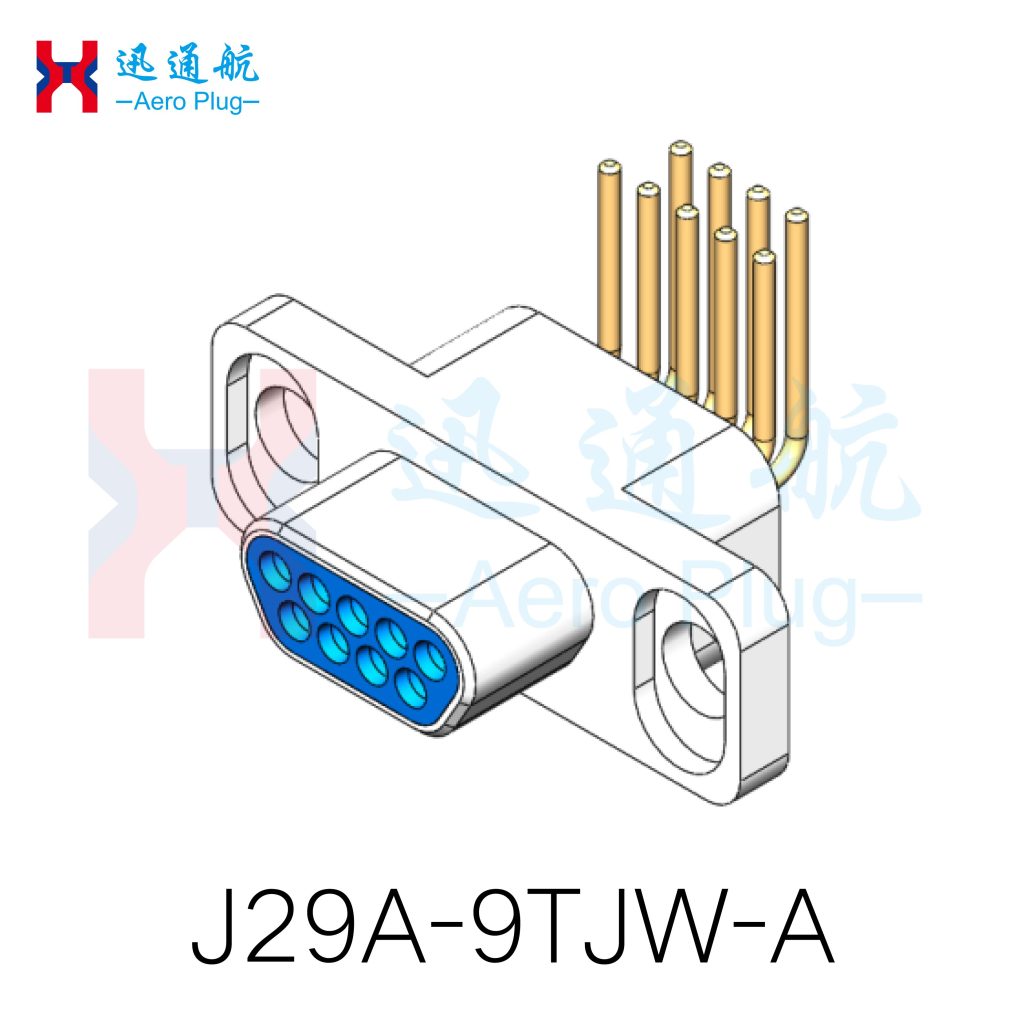

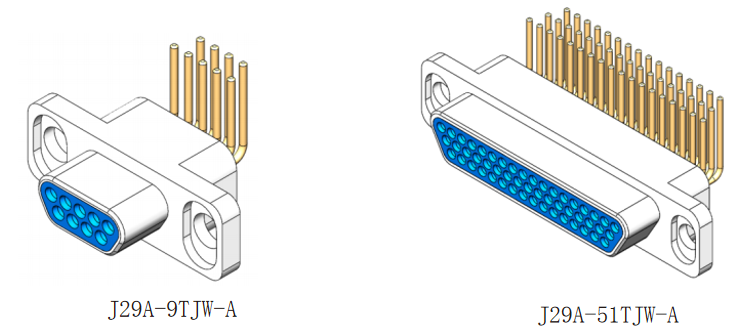

Product Stereogram
Product Outline Dimension

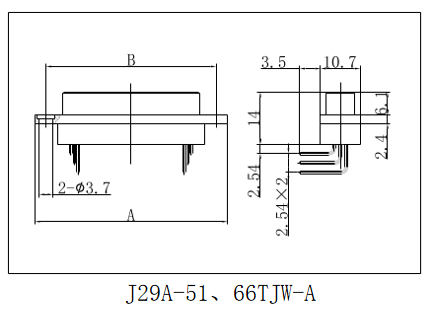

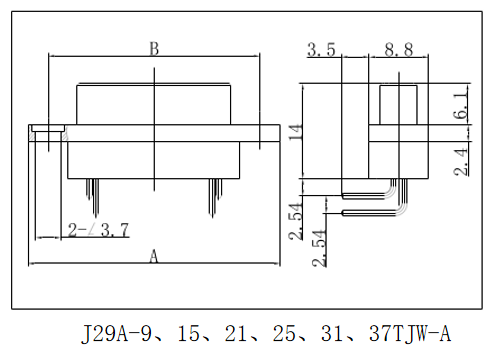

Product Outline Dimension Drawing
| series spectrum | A | B |
J29A-9TJW-A | 26.1 | 20.1 |
J29A-15TJW-A | 31.6 | 25.6 |
J29A-21TJW-A | 37.3 | 31.3 |
J29A-25TJW-A | 42 | 36 |
J29A-31TJW-A | 47.8 | 41.8 |
J29A-37TJW-A | 53.5 | 47.5 |
J29A-51TJW-A | 52 | 46 |
J29A-66TJW-A | 61.5 | 55.5 |
Please contact us for more information about this product.
