J29M Standard Type/ J29M Crimp Series
J29M-9、15、21、25、31、37、51、66TJ (Plug)
The only difference between the sealed type and the standard type lies in the height of the potting cavity at the tail end; the contact tail end adopts a crimp termination.

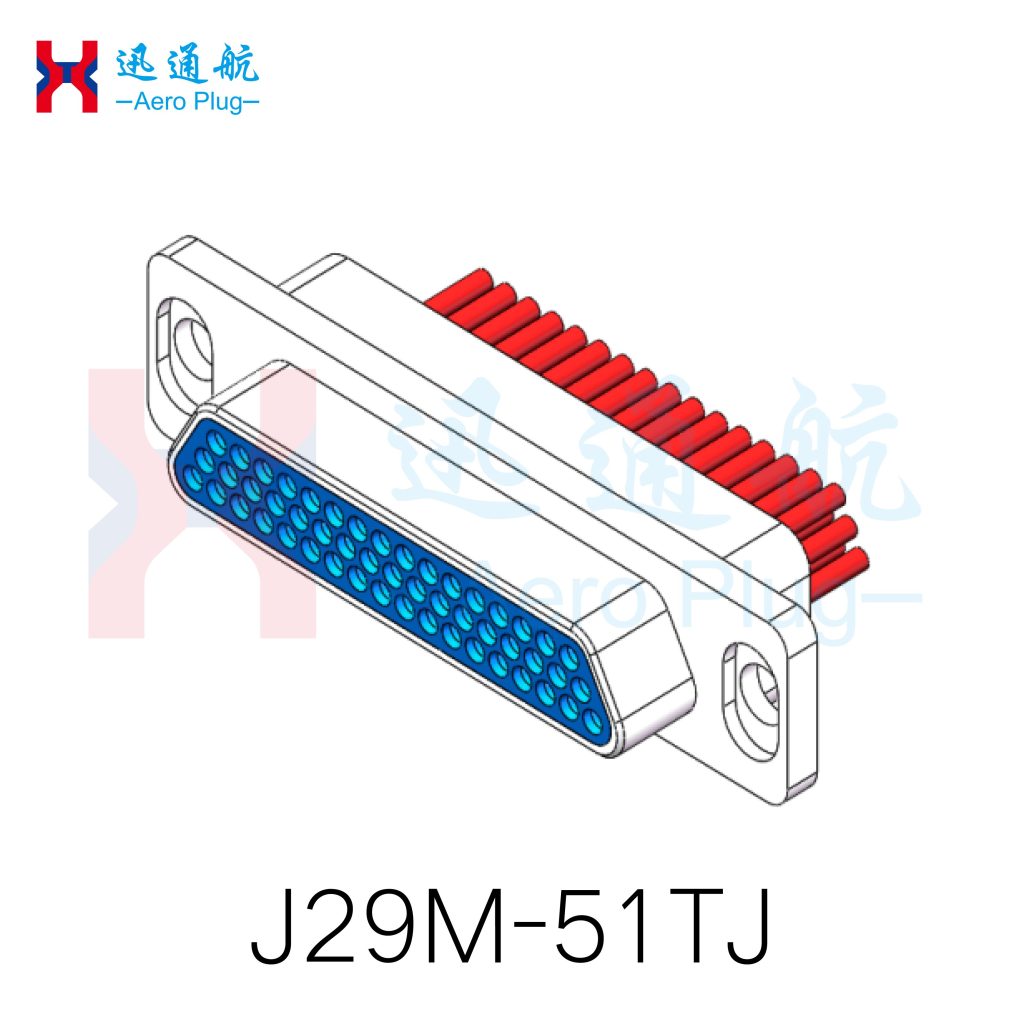

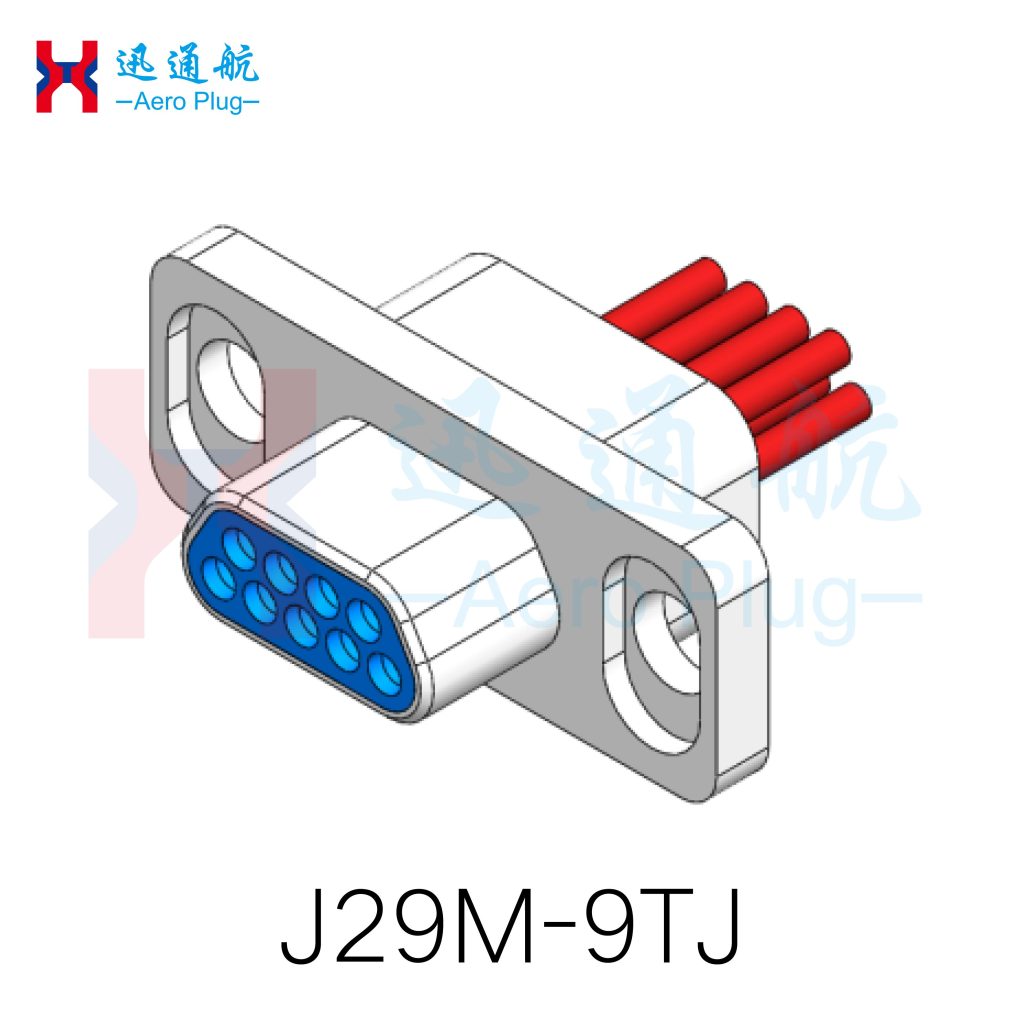

Product Stereogram

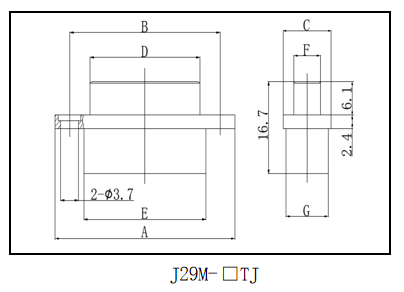

Product Outline Dimension Drawing
J29M-TJ
Ordering Code | A | B | C | D | E | F | G |
J29M-9TJ | 26.1 | 20.1 | 13 | 11.6 | 14.2 | 5.5 | 8.8 |
J29M-15TJ | 31.6 | 25.6 | 13 | 17.1 | 19.7 | 5.5 | 8.8 |
J29M-21TJ | 37.3 | 31.3 | 13 | 22.8 | 25.4 | 5.5 | 8.8 |
J29M-25TJ | 42 | 36 | 13 | 27.1 | 29.9 | 6 | 8.8 |
J29M-31TJ | 47.8 | 41.8 | 13 | 32.9 | 35.7 | 6 | 8.8 |
J29M-37TJ | 53.5 | 47.5 | 13 | 38.6 | 41.4 | 6 | 8.8 |
J29M-51TJ | 52 | 46 | 14.6 | 37.1 | 39.9 | 7.7 | 10.7 |
J29M-66TJ | 61.5 | 55.5 | 14.6 | 46.6 | 49.4 | 7.7 | 10.7 |
Outline Drawing of Mated Products
Please contact us for more information about this product.
