J29A Standard Type/ J29A-A Soldered H Series

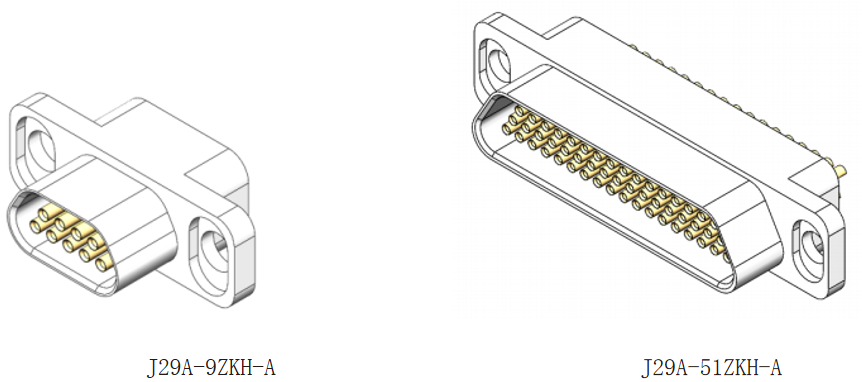

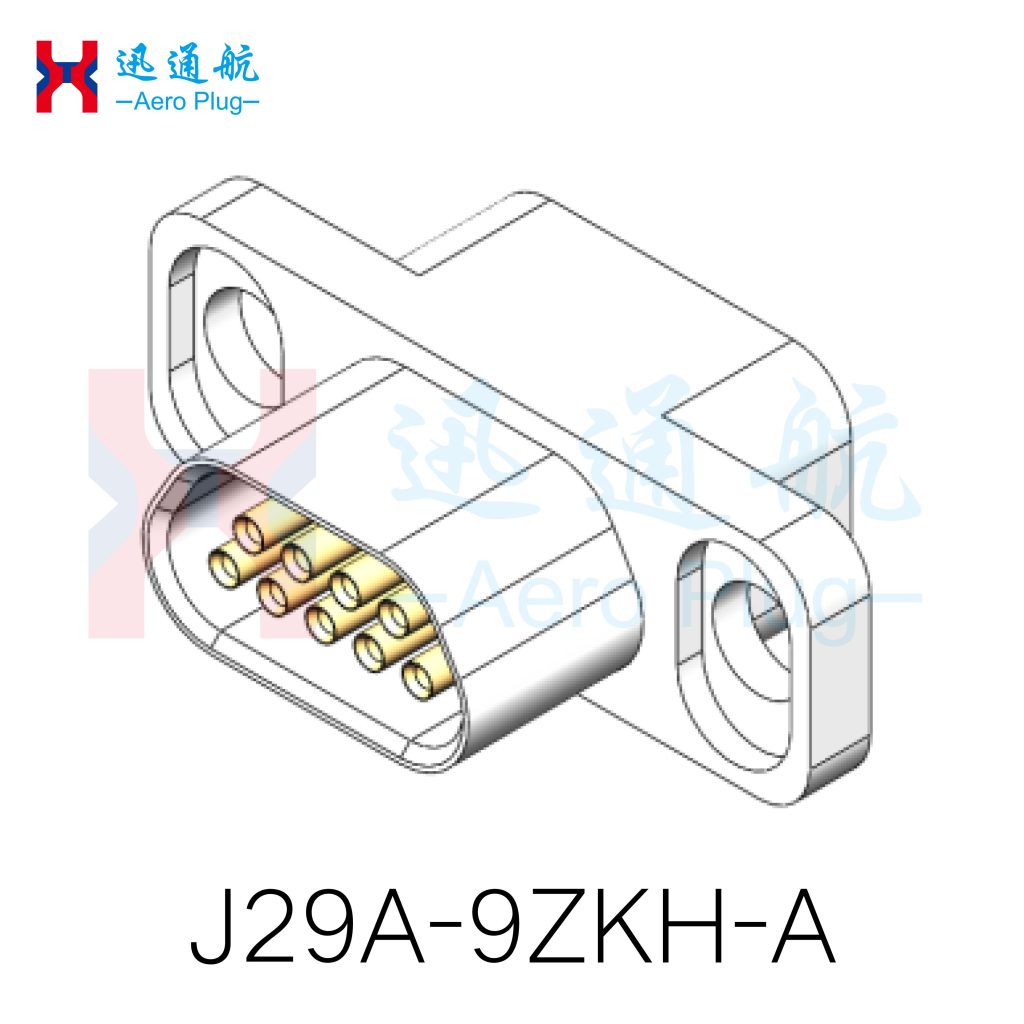

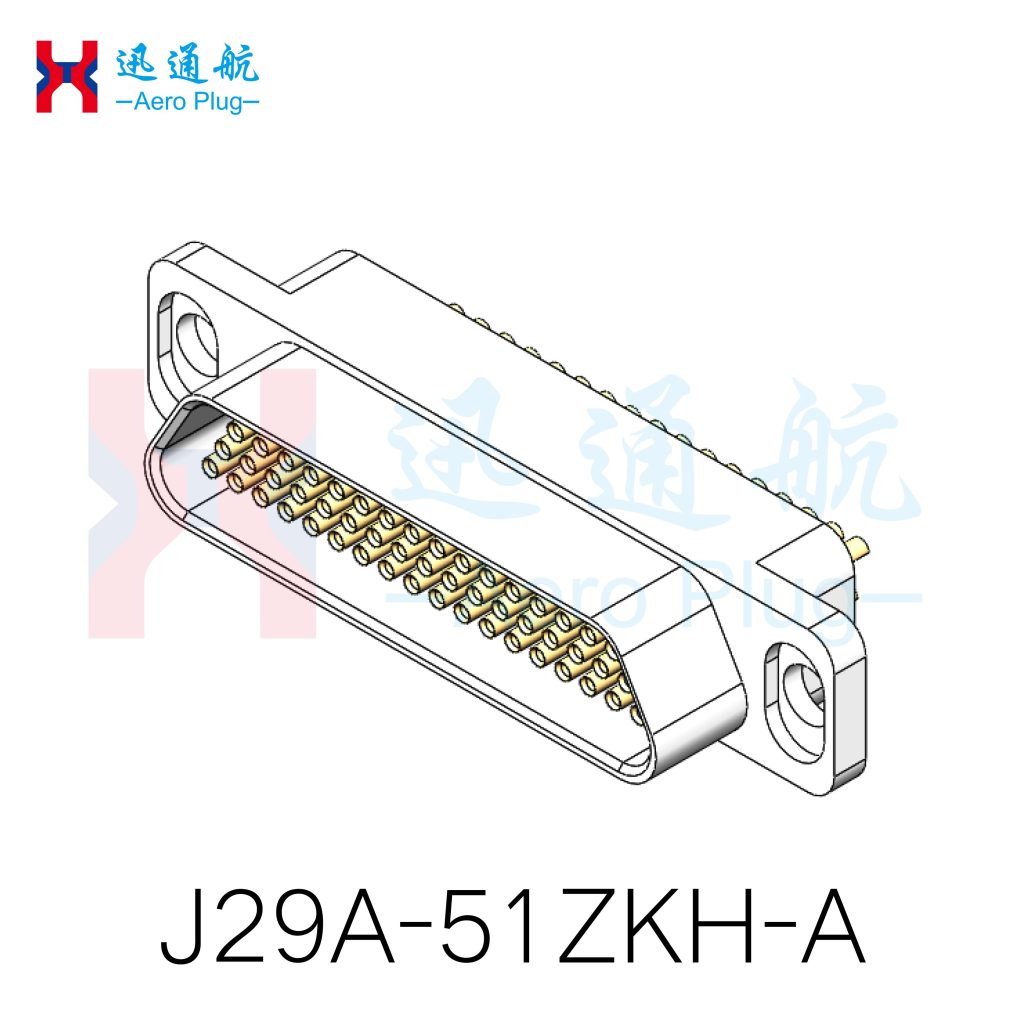

J29A-9、15、21、25、31、37、51、66ZKH-A (Socket)
Feature: Modified product housing; the width of the housing flange is equal to that of the tail end.
Product Outline Dimension Drawing
Product Outline Dimension Drawing
| series spectrum | A | B |
J29M-9ZKH | 26.1 | 20.1 |
J29M-15ZKH | 31.6 | 25.6 |
J29M-21ZKH | 37.3 | 31.3 |
J29M-25ZKH | 42 | 36 |
J29M-31ZKH | 47.8 | 41.8 |
J29M-37ZKH | 53.5 | 47.5 |
J29M-51ZKH | 52 | 46 |
J29M-66ZKH | 61.5 | 55.5 |
Please contact us for more information about this product.
