J29A Standard Type/ J29A-A Soldered H Series

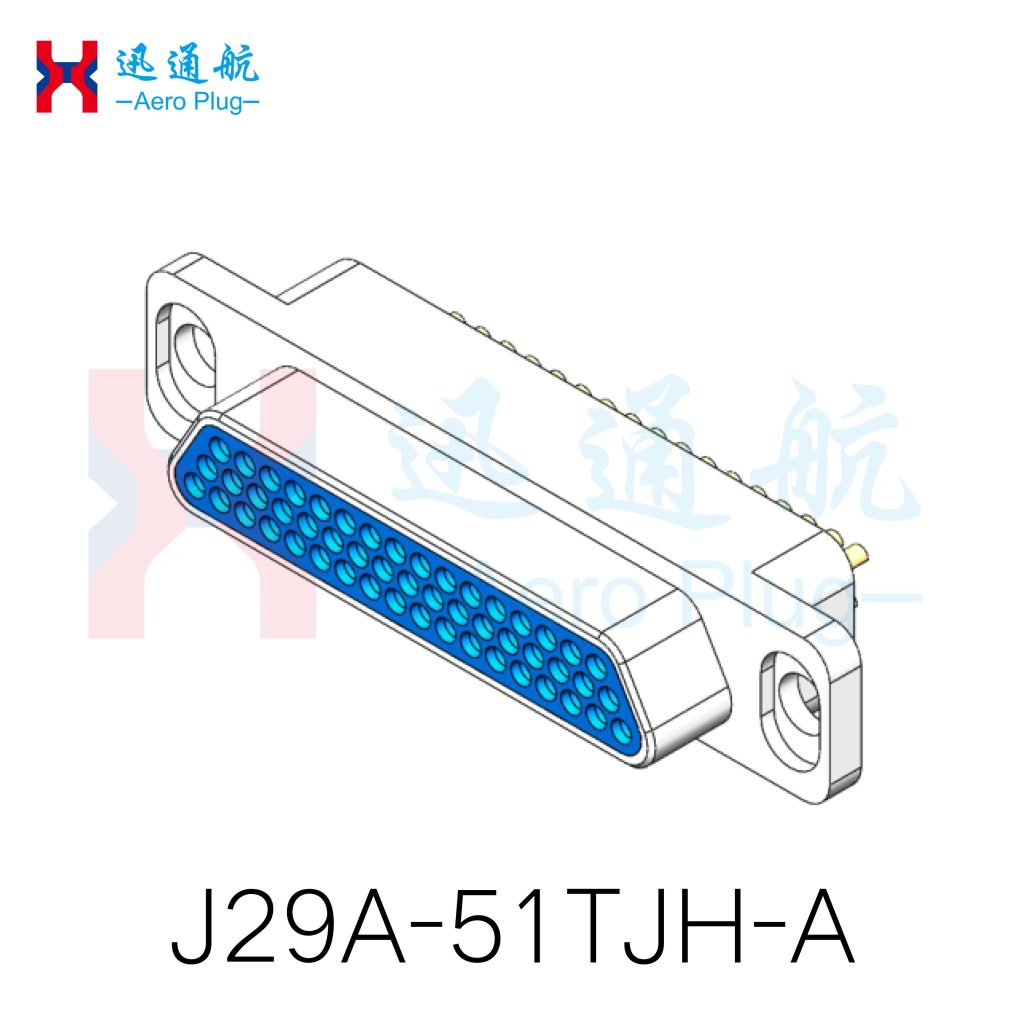

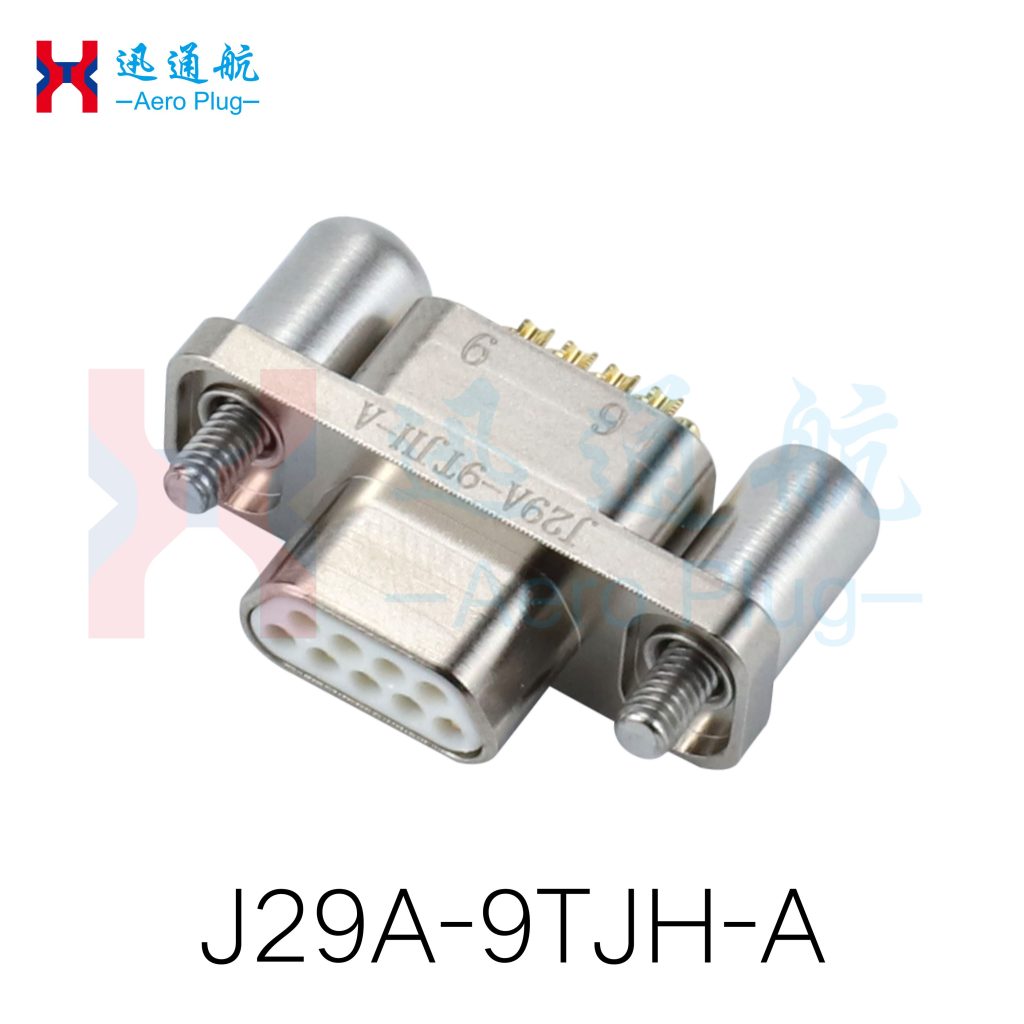

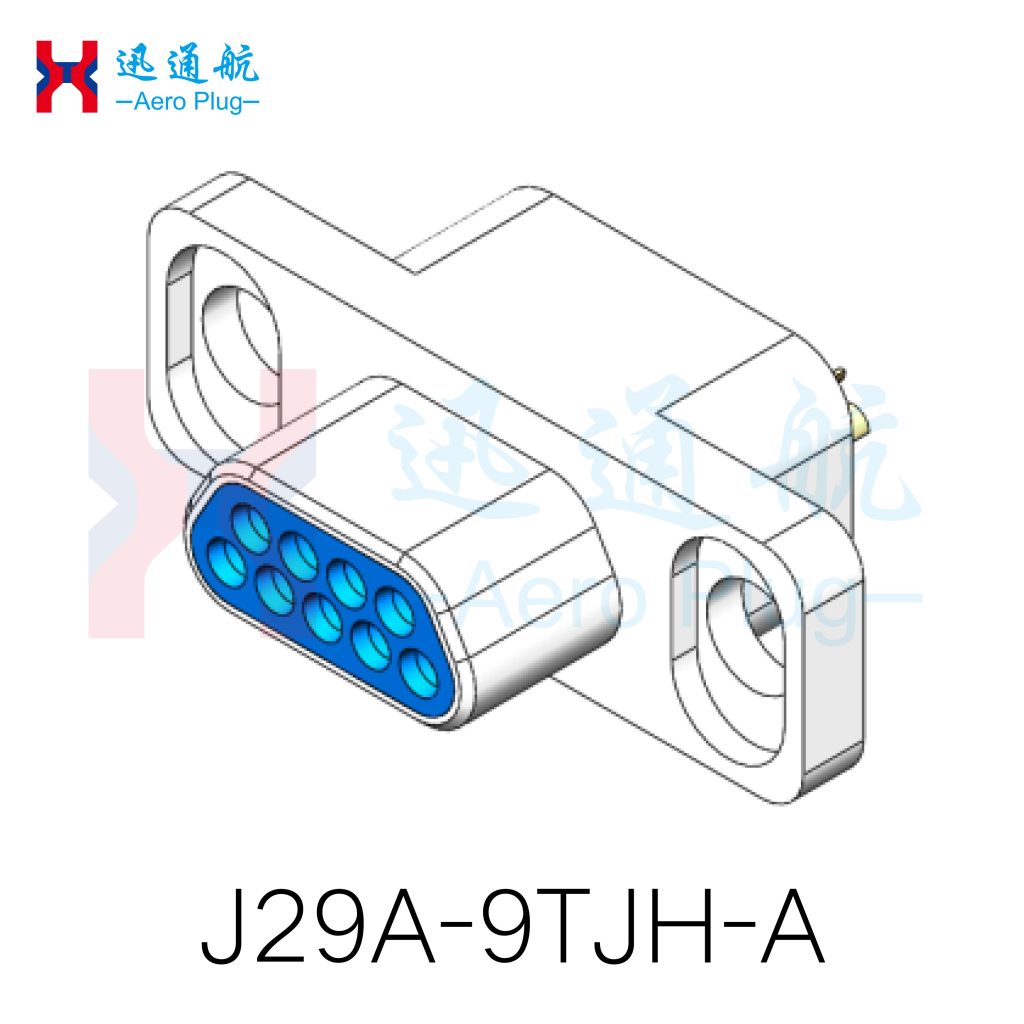

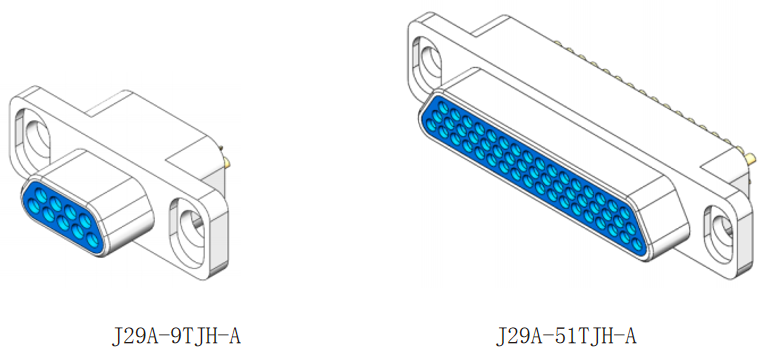

J29A-9、15、21、25、31、37、51、66TJH-A (Plug)
Feature: Modified product housing; the width of the housing flange is equal to that of the tail end.

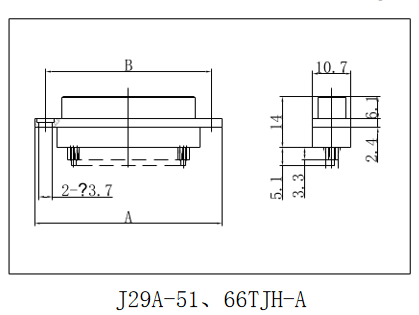

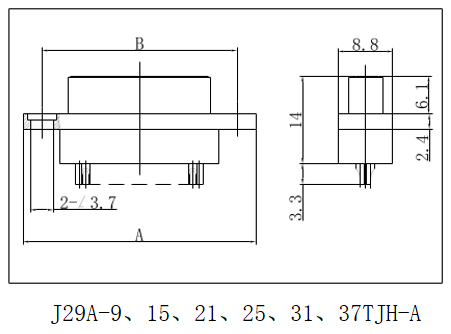

Product Outline Dimension Drawing
Product Outline Dimension Drawing
| series spectrum | A | B |
J29M-9TJH | 26.1 | 20.1 |
J29M-15TJH | 31.6 | 25.6 |
J29M-21TJH | 37.3 | 31.3 |
J29M-25TJH | 42 | 36 |
J29M-31TJH | 47.8 | 41.8 |
J29M-37TJH | 53.5 | 47.5 |
J29M-51TJH | 52 | 46 |
J29M-66TJH | 61.5 | 55.5 |
