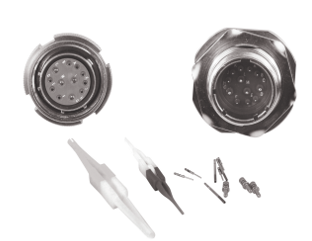

Receptacle with PCB-Type Contacts
J599/24 Socket
J599/20 Socket
| Specifications of Printed Circuit Board (PCB) Contacts | L1 | A | |
| 22D# | Long-Type Printed Circuit Board (PCB) Contacts | 8.5 | 0.7 |
| Short-Type Printed Circuit Board (PCB) Contacts | 4.0 | ||
| 20# | Long-Type Printed Circuit Board (PCB) Contacts | 8.5 | 0.7 |
| Short-Type Printed Circuit Board (PCB) Contacts | 5.1 | ||
| 16# | Long-Type Printed Circuit Board (PCB) Contacts | 8.5 | 1.15 |
| Short-Type Printed Circuit Board (PCB) Contacts | 5.1 | ||
| Dimensions for Mounting Contacts of Different Specifications | Shell Size09-11 | Shell Size13-15-17-19-21-23-25 | ||
| L2 | When Mounting 22D# Pins | Minimum | 10.52 | 10.34 |
| Maximum | 11.46 | 11.28 | ||
| When Mounting 22D# Sockets | Minimum | 10.19 | 10.01 | |
| Maximum | 11.46 | 11.28 | ||
| When Mounting 20# or 16# Pins or Sockets | Minimum | 10.69 | 10.51 | |
| Maximum | 11.63 | 11.45 | ||
| L3 | When Mounting 22# Pins | Minimum | 9.48 | 9.48 |
| Maximum | 10.58 | 10.58 | ||
| When Mounting 22D# Sockets | Minimum | 9.15 | 9.15 | |
| Maximum | 10.58 | 10.58 | ||
| When Mounting 20# or 16# Pins or Sockets | Minimum | 9.65 | 9.65 | |
| Maximum | 10.75 | 10.75 | ||
