JY27474 Nut-Mounted Receptacle
Available in Type T and Type E (Threadless, Customized per Customer Request)

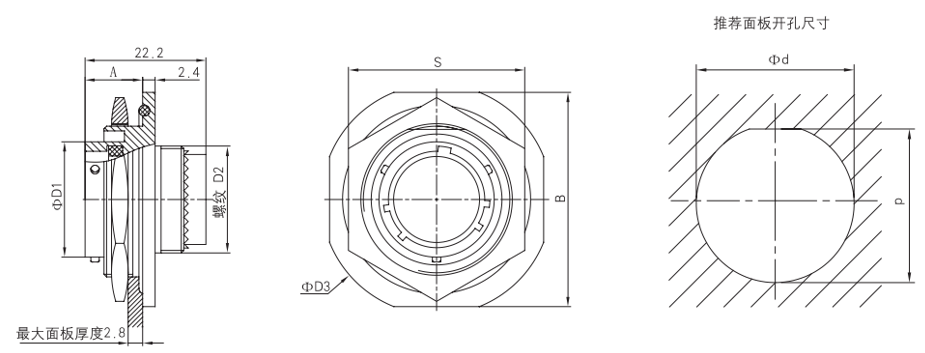

Nut-Mounted Receptacle JY27474
| Shell Size | D1 | Thread D2 UNE F-2A | D3 | A | B | S | d | P |
| 08 | 12.00 | 0.4375-28 | 34.95 | 11.1 | 31.75 | 27.40 | 22.46 | 21.08 |
| 10 | 15.00 | 0.5625-24 | 38.10 | 11.1 | 34.95 | 30.61 | 25.58 | 24.26 |
| 12 | 19.05 | 0.6875-24 | 41.28 | 11.1 | 38.10 | 33.75 | 28.80 | 27.53 |
| 14 | 22.23 | 0.8125-20 | 44.45 | 11.1 | 41.28 | 36.96 | 31.98 | 30.68 |
| 16 | 25.40 | 0.9375-20 | 49.23 | 11.1 | 45.24 | 40.10 | 35.15 | 33.86 |
| 18 | 28.58 | 1.0625-18 | 51.21 | 11.1 | 48.00 | 43.30 | 38.28 | 37.06 |
| 20 | 31.75 | 1.1875-18 | 54.38 | 11.8 | 51.21 | 46.45 | 41.50 | 40.03 |
| 22 | 34.93 | 1.3125-18 | 57.53 | 11.8 | 54.36 | 51.23 | 44.68 | 43.21 |
| 24 | 38.10 | 1.4375-18 | 60.71 | 11.8 | 57.53 | 54.41 | 47.85 | 46.38 |
Please contact us for more information about this product.
