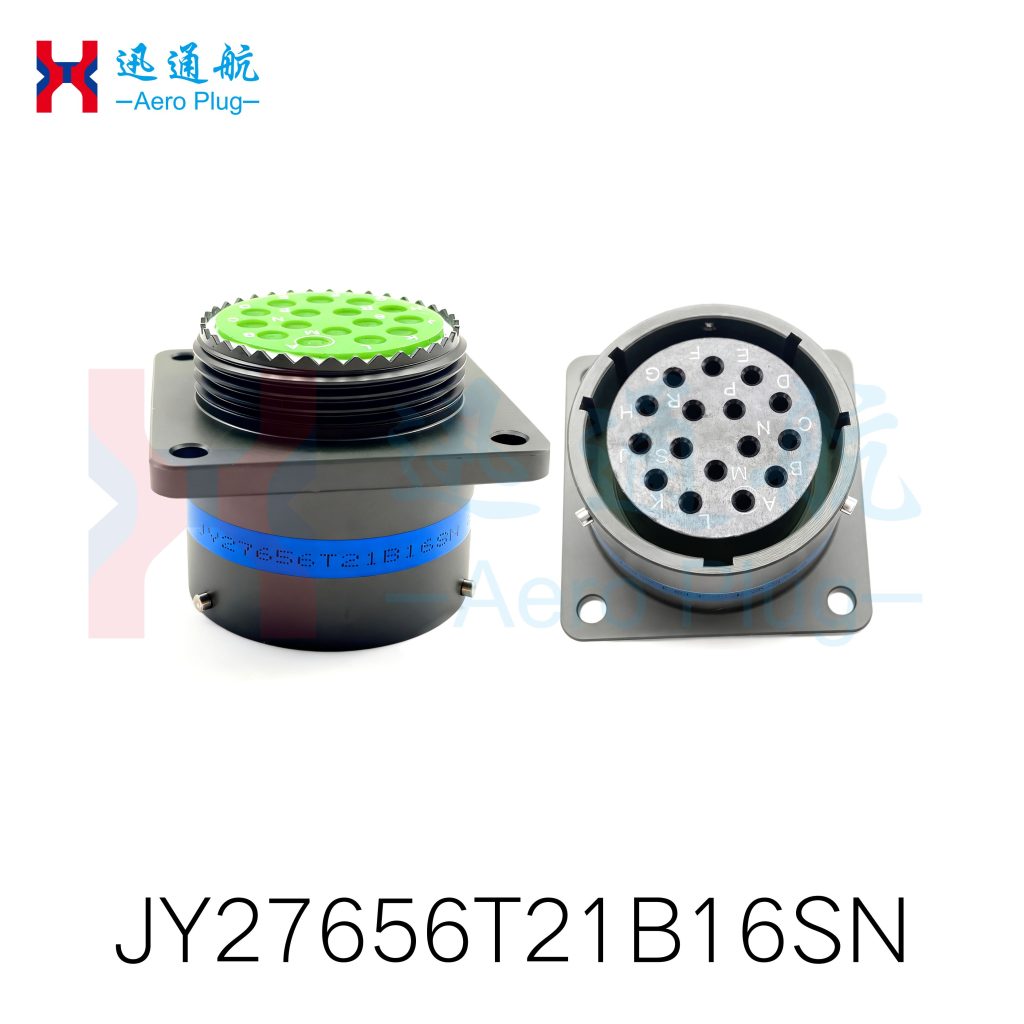

JY27656 Wall-Mounted Square Flange Rear-Mounted Receptacle
Only Type T

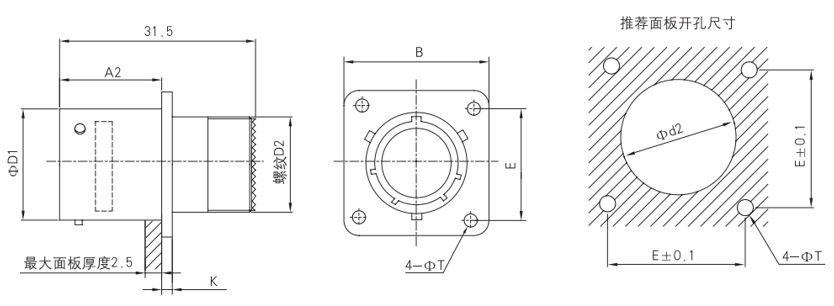

Wall-Mounted Square Panel Rear-Mounted Socket (JY27656)
| Shell Size | D1 | Thread D2UNE F-2A | A2 | K | B | E | T | d1 | d2 |
| 09 | 14.6 | 0.4375-28 | 20.9 | 2.4 | 23.8 | 18.26 | 3.2 | 12.5 | 16.7 |
| 11 | 17.8 | 0.5625-24 | 20.9 | 2.4 | 26.2 | 20.62 | 3.2 | 15.5 | 20.2 |
| 13 | 21.6 | 0.6875-24 | 20.9 | 2.4 | 28.6 | 23.02 | 3.2 | 19.5 | 24. 5 |
| 15 | 24.8 | 0.8125-20 | 20.9 | 2.4 | 31.0 | 24.62 | 3.2 | 21.5 | 27.7 |
| 17 | 28.0 | 0.9375-20 | 20.9 | 2.4 | 33.3 | 26.98 | 3.2 | 25.0 | 30.9 |
| 19 | 30.7 | 1.0625-1 8 | 20.9 | 2.4 | 36.5 | 29.36 | 3.2 | 28.0 | 32.9 |
| 21 | 33.8 | 1.1875-18 | 20.1 | 3.1 | 39.7 | 31.76 | 3.2 | 31.5 | 36.2 |
| 23 | 37.0 | 1.3125-1 8 | 20.1 | 3.1 | 42.9 | 34.92 | 3.7 | 34.5 | 39.3 |
| 25 | 40.2 | 1.4375-1 8 | 20.1 | 3.1 | 46.0 | 38.10 | 3.7 | 37.5 | 42.5 |
Please contact us for more information about this product.
