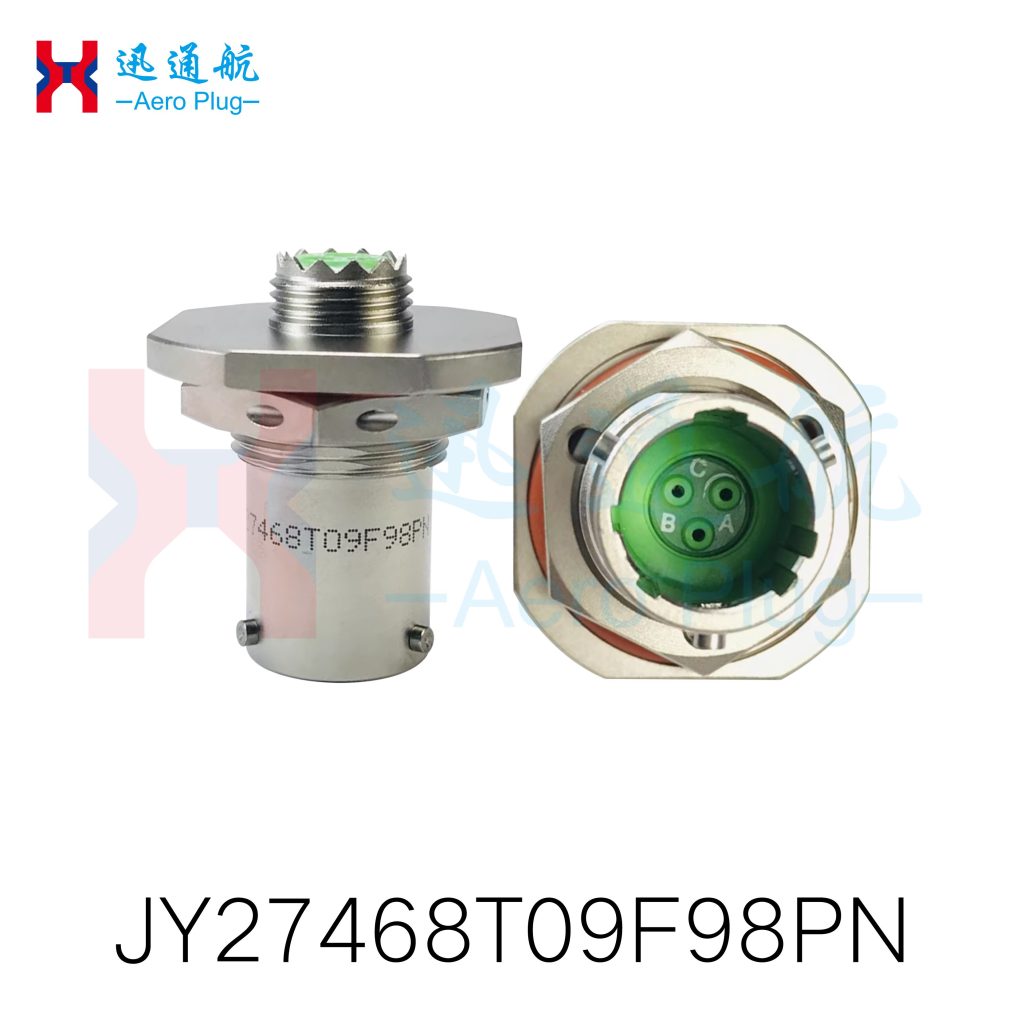

JY27468 Nut-Mounted Receptacle
Only Type T
Nut-Mounted Socket JY27468

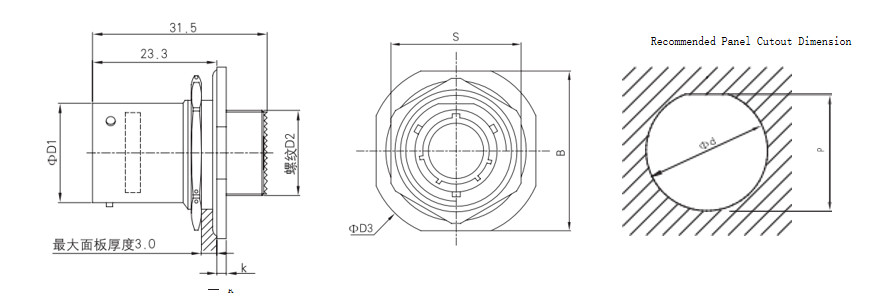

| Shell Size | D1 | Thread D2UNEF-2A | D3 | K | B | S | d | P |
| 09 | 14.5 | 0.4375-28 | 30.2 | 2.4 | 27.0 | 22.3 | 7.7 | 17.0 |
| 11 | 17.8 | 0.5625-24 | 35.0 | 2.4 | 31.8 | 25.5 | 21.0 | 19.6 |
| 13 | 21.6 | 0.6875-24 | 38.1 | 2.8 | 35.0 | 30.2 | 25.6 | 24.3 |
| 15 | 24.8 | 0.8125-20 | 41.3 | 2.8 | 38.1 | 33.4 | 28.8 | 27.3 |
| 17 | 27.9 | 0.9375-20 | 44.5 | 2.8 | 41.3 | 36.6 | 32.0 | 30.7 |
| 19 | 30.7 | 1.0625-18 | 49.3 | 3.6 | 46.0 | 39.7 | 35.2 | 33.8 |
| 21 | 33.8 | 1.1875-18 | 52.4 | 3.6 | 49.2 | 42.9 | 38.3 | 37.1 |
| 23 | 37.0 | 1.3125-18 | 55.6 | 3.6 | 52.4 | 46.1 | 41.5 | 40.0 |
| 25 | 40.1 | 1.4375-18 | 58.8 | 3.6 | 55.6 | 50.8 | 44.7 | 43.4 |
Please contact us for more information about this product.
