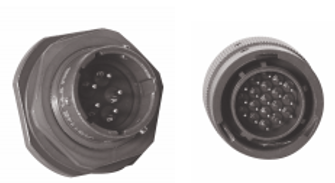

3117 Wall-Mounted Square Flange Through-Wall Receptacle
Available in Type P

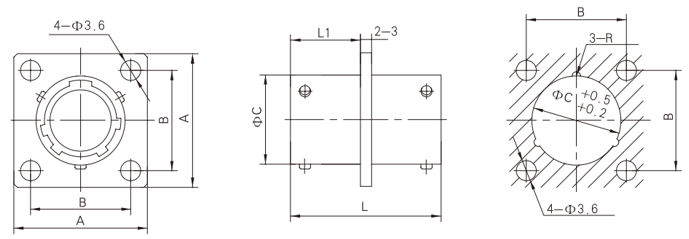

Outline Installation Dimensions of Through-Wall Receptacle (Square Flange Type) (Type P)
JY3117P
| Shell Size | A | B | ΦC | L | L1 | R |
| 8 | 20.60 | 15.09 | 12.00 | 33.5 | 14.5 | 1.5 |
| 10 | 23.80 | 18.30 | 15.00 | 33.5 | 14.5 | 1.5 |
| 12 | 26.20 | 20.60 | 19.10 | 33.5 | 14.5 | 1.5 |
| 14 | 30.00 | 23.00 | 22.20 | 33.5 | 14.5 | 1.5 |
| 16 | 31.00 | 24.60 | 25.40 | 33.5 | 14.5 | 1.5 |
| 18 | 33.30 | 27.00 | 28.60 | 33.5 | 14.5 | 1.5 |
| 20 | 36.50 | 29.36 | 31.78 | 36.0 | 16.5 | 1.5 |
| 22 | 40.00 | 32.00 | 34.95 | 36.0 | 16.5 | 1.5 |
| 24 | 42.90 | 34.93 | 38.10 | 36.0 | 16.5 | 2.0 |

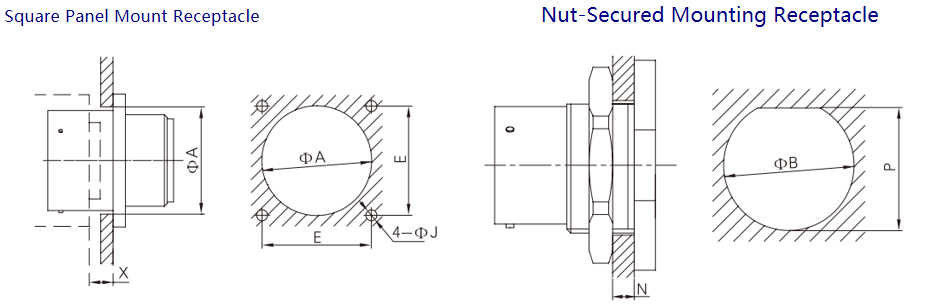

Recommended Panel Cutout Dimensions for Receptacle
