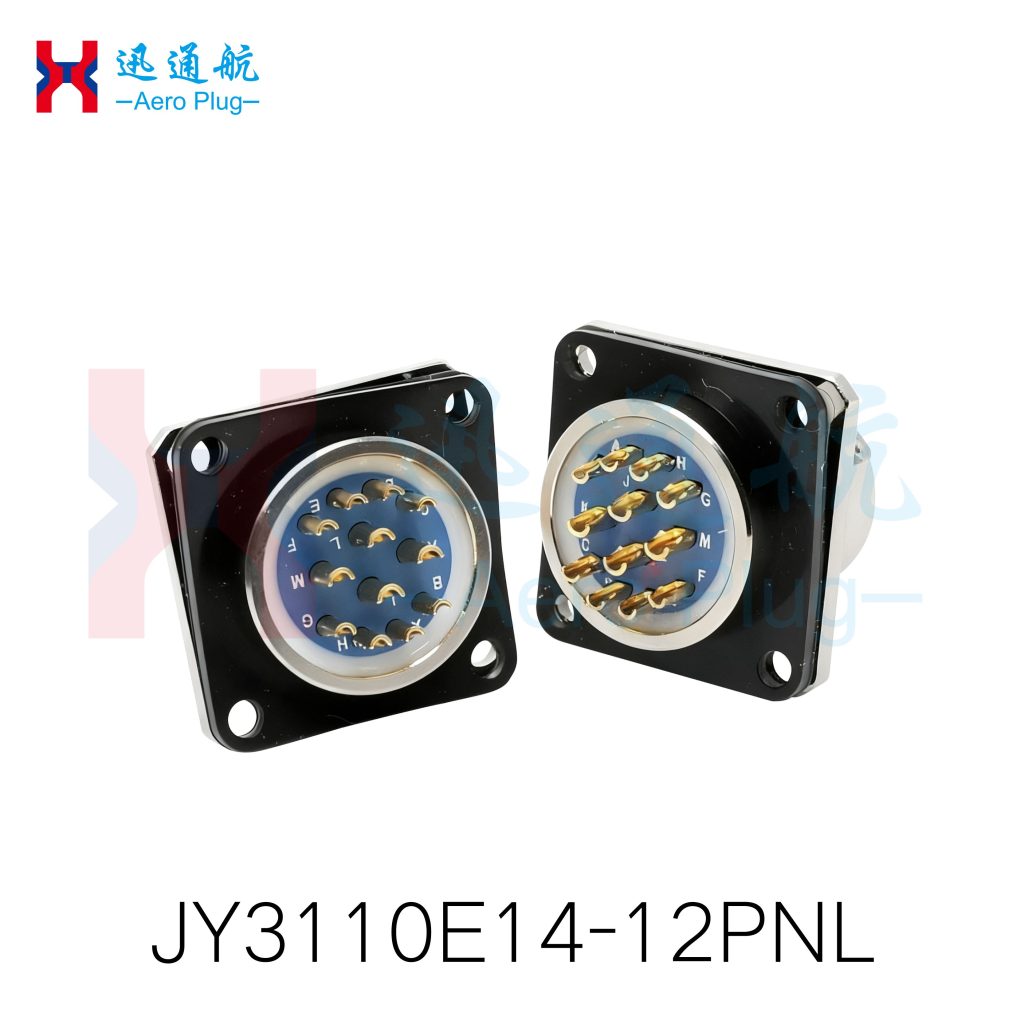

3110 Wall-Mounted Square Flange Mounting Receptacle
Available in Types R, E, F, P, and J
JY3110EWall-Mounted Square Panel Mount Receptacle (Type E): JY3110E
| Shell Size | L(Max) | A | B(Max) | C(Max) | D(Max) | E | F(Max) | J |
| 8 | 32.7 | 12.04 | 11.7 | 1.7 | 13.5 | 15.09 | 20.99 | 3.2 |
| 10 | 32.7 | 15.0 | 11.7 | 1.7 | 16.7 | 18.26 | 24.19 | 3.2 |
| 12 | 32.7 | 19.07 | 11.7 | 1.7 | 19.9 | 20.62 | 26.54 | 3.2 |
| 14 | 32.7 | 22.25 | 11.7 | 1.7 | 23.4 | 23.0 | 28.89 | 3.2 |
| 16 | 32.7 | 25.43 | 11.7 | 1.7 | 26.6 | 24.61 | 31.29 | 3.2 |
| 18 | 32.7 | 28.6 | 11.7 | 1.7 | 29.5 | 26.97 | 33.69 | 3.2 |
| 20 | 34.5 | 31.78 | 14.3 | 2.5 | 32.7 | 29.36 | 36.89 | 3.2 |
| 22 | 34.5 | 34.95 | 14.3 | 2.5 | 36.0 | 31.75 | 39.99 | 3.2 |
| 24 | 34.5 | 38.13 | 15.2 | 2.5 | 39.1 | 34.92 | 43.15 | 3.8 |
