3110 Wall-Mounted Square Flange Mounting Receptacle
Available in Types R, E, F, P, and J

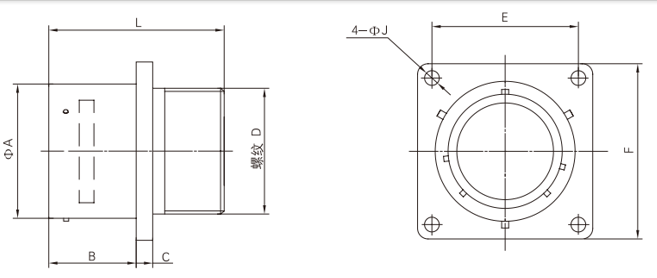

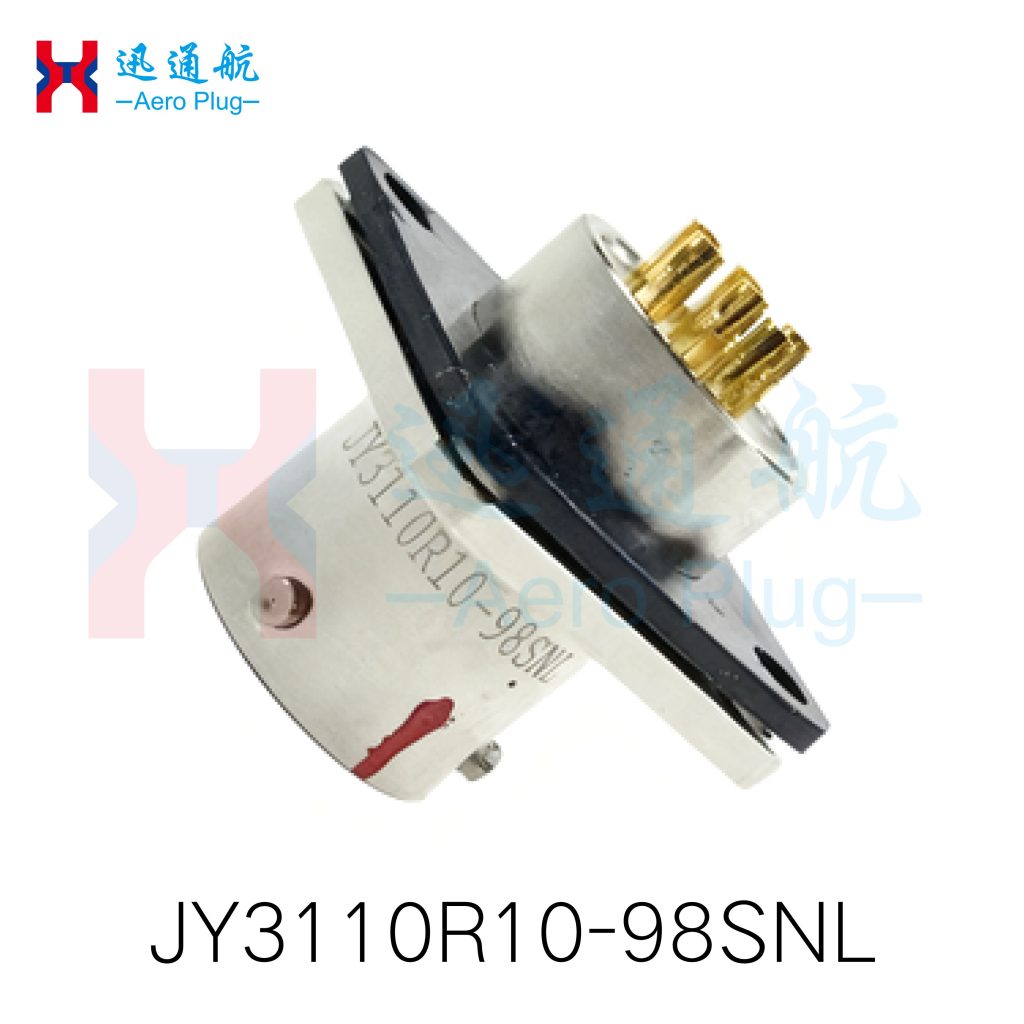

Wall-Mounted Square Panel Mount Receptacle (Type R): JY3110R
| Shell Size | L(Max) | A | B(Max) | C(Max) | E | F(Max) | J | Thread DUNEF一2A |
| 8 | 21 | 12.04 | 11.7 | 1.7 | 15.09 | 20.99 | 3.2 | 0.4375-28 |
| 10 | 21 | 15.0 | 11.7 | 1.7 | 18.26 | 24.19 | 3.2 | 0.5625-24 |
| 12 | 21 | 19.07 | 11.7 | 1.7 | 20.62 | 26.54 | 3.2 | 0.6875-24 |
| 14 | 21 | 22.25 | 11.7 | 1.7 | 23.0 | 28.89 | 3.2 | 0.8125-20 |
| 16 | 21 | 25.43 | 11.7 | 1.7 | 24.61 | 31.29 | 3.2 | 0.9375-20 |
| 18 | 21 | 28.6 | 11.7 | 1.7 | 26.97 | 33.69 | 3.2 | 1.0625-18 |
| 20 | 23 | 31.78 | 14.3 | 2.5 | 29.36 | 36.89 | 3.2 | 1.1875-1 |
| 22 | 23 | 34.95 | 14.3 | 2.5 | 31.75 | 39.99 | 3.2 | 1.3125-18 |
| 24 | 23 | 38.13 | 15.2 | 2.5 | 34.92 | 43.15 | 3.8 | 1.4375-1 |
Please contact us for more information about this product.
