XCM Series

XCM Series Circular Electrical Connectors
This series of electrical connectors complies with the GJB2889 standard. Adopting a bayonet-type quick connection and disconnection method, it features convenient operation, reliable connection, vibration resistance, and impact resistance. The shell is made of high-strength high-quality aluminum alloy, and the contacts are of soldered type, with sockets being wire spring sockets. It offers characteristics such as smooth mating and unmating, low contact resistance, moisture resistance, salt spray resistance, mold resistance, and rain resistance. Widely used in military fields including aerospace, ordnance, ships, and field communications, it is also applied to connections in post and telecommunications, railway command systems, computers, marine navigation, and various instruments.

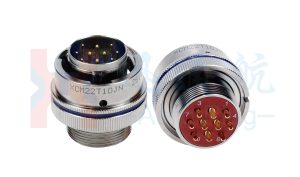

plug

14、18、22、24、27、30、33、36、39

XCM Series Circular Electrical Connectors

plug
View Details

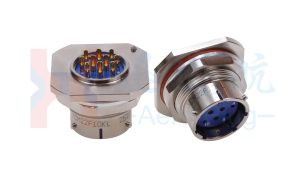

socket

14、18、22、24、27、30、33、36、39

XCM Series Circular Electrical Connectors

socket
View Details

Product Designation Code

XTH XCM 14 Z/T 4 Z/K L  W
  ①     ②    ③ ④   ⑤ ⑥  ⑦ ⑧

1—Enterprise Designation of Shenzhen Xuntonghang Electronic Technology Co., Ltd.
2—Main Designation Code for Circular Electrical Connectors
3—Shell Size: 14, 18, 22, 24, 27, 30, 33, 36, 39
4—Connector Type: T-Plug; Z-Receptacle
5—Number of Contact Pairs: 1～62 Contacts
6—Contact Type: J-Gold-Plated Pin; K-Gold-Plated Socket
7—Receptacle Mounting Method: F-Square Flange Mounting; L-Nut Mounting
8—Anti-Misinsertion Index Number: N, W, X, Y, Z; (N may be unmarked; Refer to Anti-Misinsertion Key Positions)
Notes:
1. To ensure compatibility with various specifications of cables, a variety of dedicated cable clamps are available for selection. For detailed information, refer to "General Accessories for XC and Its Extended Series Electrical Connectors".
2. This product is also equipped with dedicated cable accessories. When required, mark "+XCM30FJ-φ" after the electrical connector model, where Φ indicates the cable outlet diameter of the accessory.
