Product Designation Code

XTH XC 14 F/T 1 Z/K HP W
  ①  ②   ③ ④   ⑤ ⑥   ⑦ ⑧

1—Enterprise Designation of Shenzhen Xuntonghang Electronic Technology Co., Ltd.
2—Main Designation Code for Circular Electrical Connectors
3—Shell Size: 14, 18, 22, 24, 27, 30, 33, 36, 39

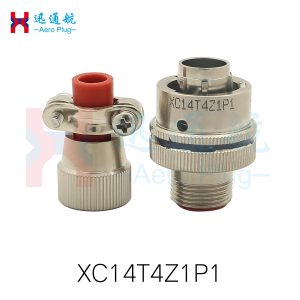

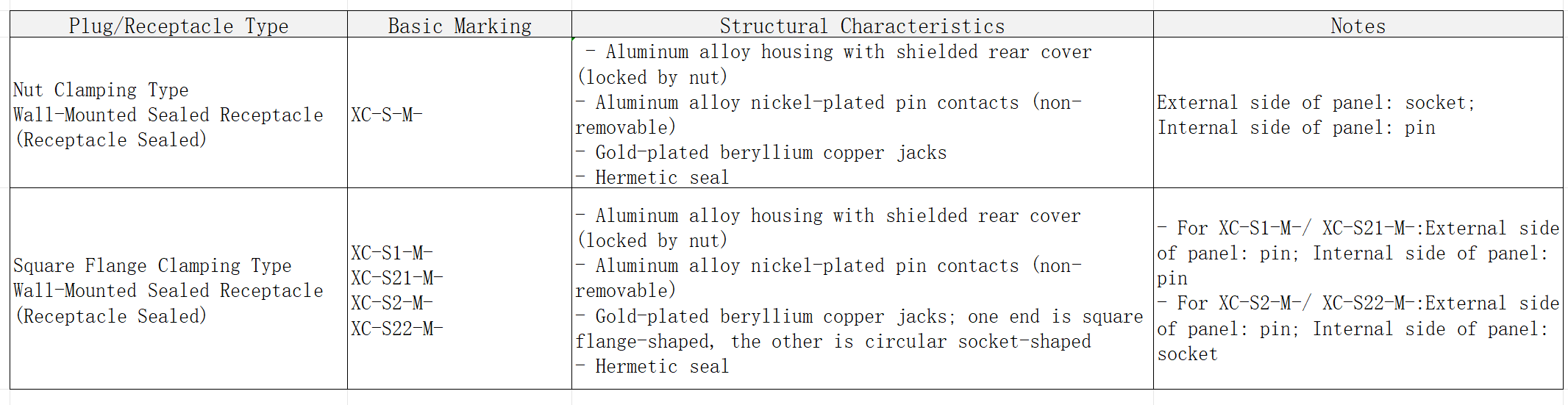

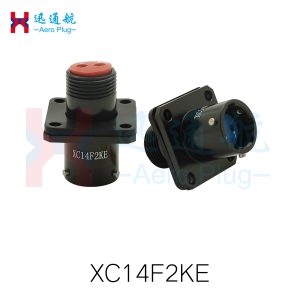

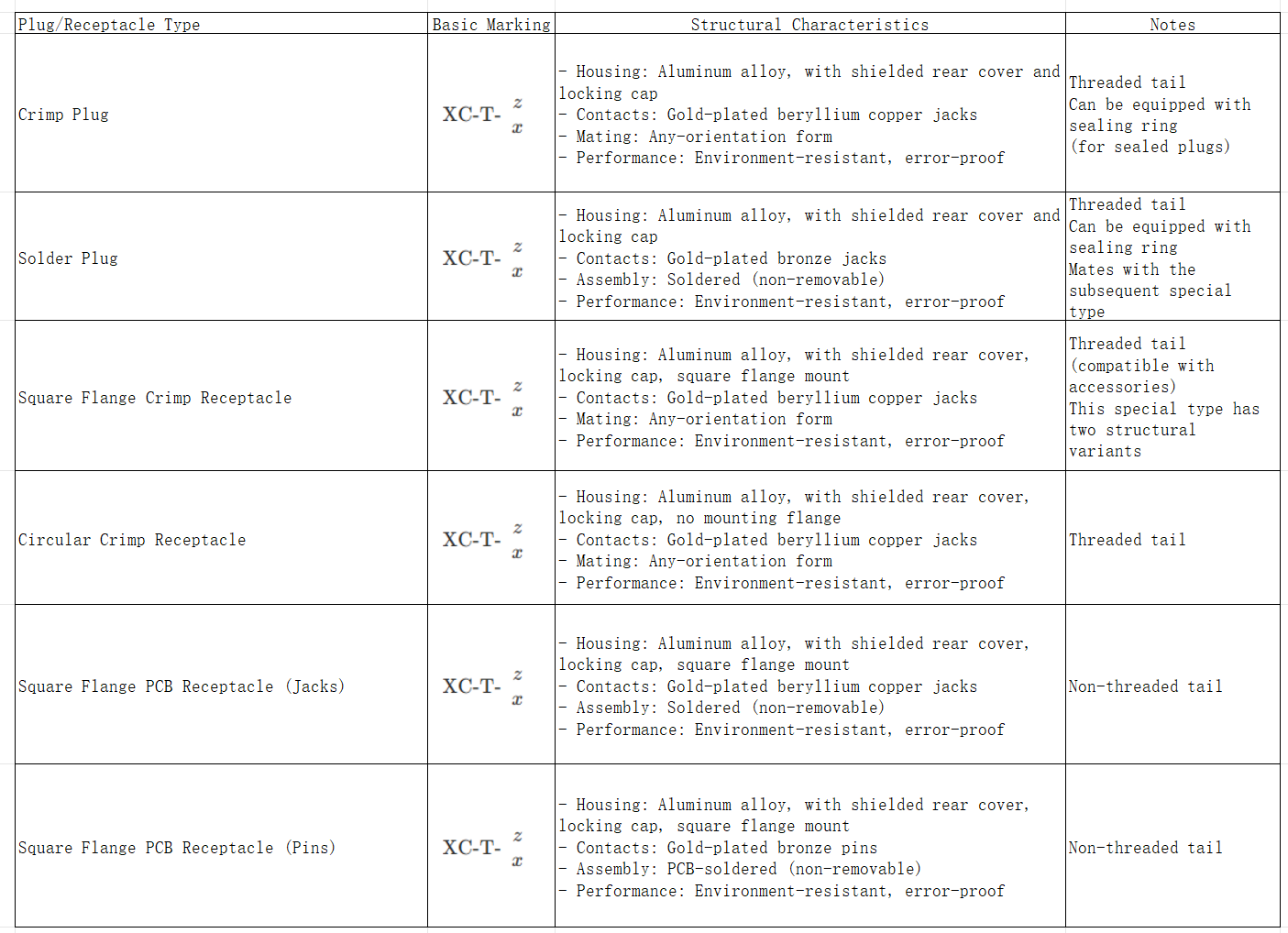

4—Connector Type: See Table
5—Number of Contact Pairs: 1～62 Contacts
6—Contact Type: Z-Silver-Plated Pin; Z1-Gold-Plated Pin
K-Silver-Plated Socket; K1-Gold-Plated Socket
M-Silver-Plated Contacts for Hermetically Sealed Receptacles;
M1-Gold-Plated Contacts for Hermetically Sealed Receptacles

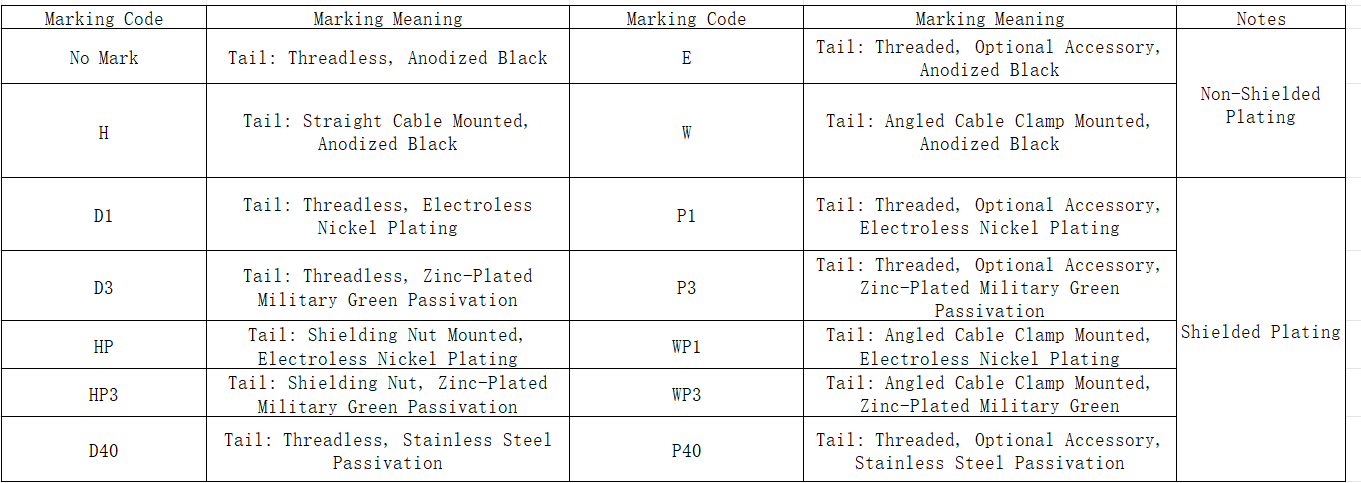

7—Shell Plating and Cable Clamp: See Table 2 for Details
8—Anti-Misinsertion Index Number: N, W, X, Y,
Z; (N may be unmarked; Refer to Anti-Misinsertion Key Positions)
Notes:
1. To ensure compatibility with various specifications of cables, a variety of dedicated cable clamps are available for selection. For detailed information, refer to "General Accessories for XC and Its Extended Series Electrical Connectors".
2. For those requiring Type B crimp contacts, mark "B" at the end of the model. Unmarked models are Type A crimp contacts by default, as specified in the Crimp Contacts Table for XC Series.
