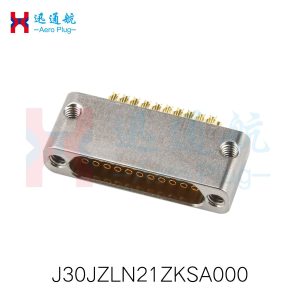

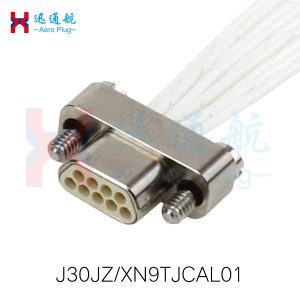

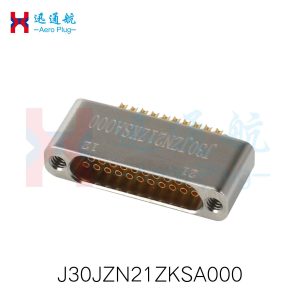

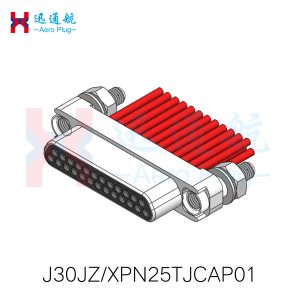

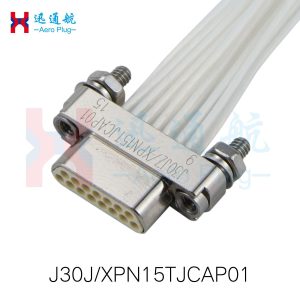

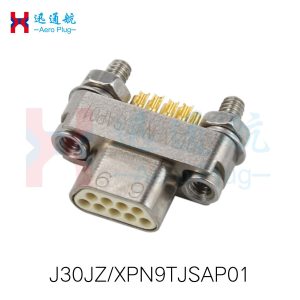

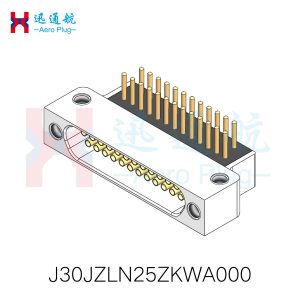

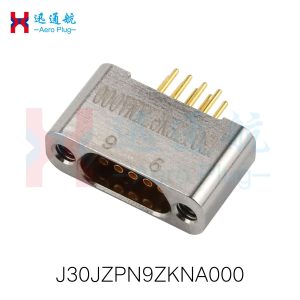

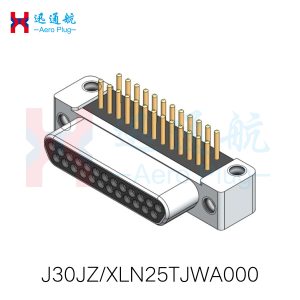

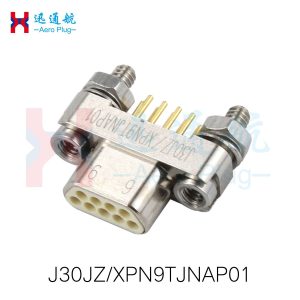

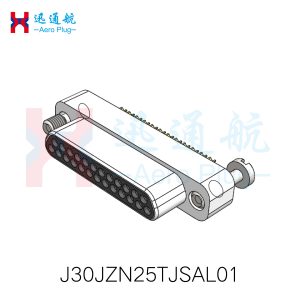

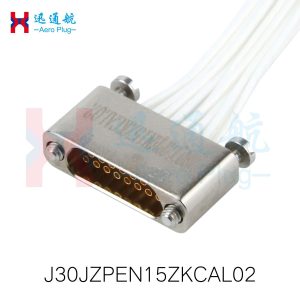

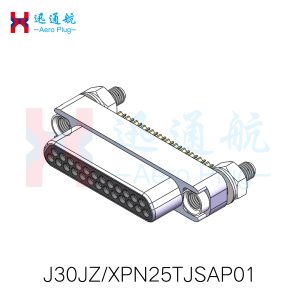

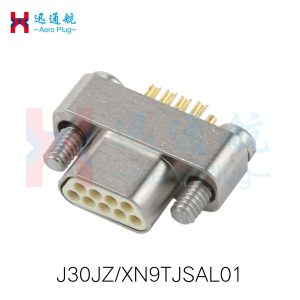

J30JZ Series Micro-Rectangular Electrical Connectors
The J30JZ series connectors offer modular, ergonomic, robust, and reliable circular multi-pole connectors, suitable for applications requiring quick and secure push-pull latching. The Series B spring technology connectors are widely used in medical, broadcast, industrial, research, motorsport, test and measurement, military and aerospace, machinery and robotics, information and networking, energy and infrastructure, and other fields. Additionally, they feature excellent compatibility with many leading suppliers.
Product Features:
■ Specifications: 10 types with 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 contacts
■ Contact grid (viewed from the mating end face): pitch 1.27mm, row spacing 1.1mm
■ Plug: Stranded elastic twisted wire pins with low insertion/extraction force, featuring low mating force, high contact reliability, and long mechanical life
■ Suitable conductor cross-sectional area: 0.1mm²~0.15mm²
■ Compared with standard J30J products of the same specification, this series has smaller external dimensions: length reduced by at least 5mm, width reduced by at least 2.9mm, height reduced by at least 2mm. Its volume is only about 40% of standard J30J products, making it a micro-rectangular electrical connector with reasonable and reliable structure.
■ For applications requiring higher thread strength and shell strength, corresponding products with stainless steel shell material can be selected according to the naming rules.
■ Product performance complies with GJB2446 requirements, equivalent to U.S. Military Standard MIL-DTL-83513
■ Executive Standard: Q/DJ-004-2017 Detailed Specification for J30JZ Series Micro-Rectangular Electrical Connectors
