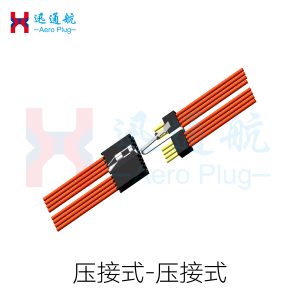

Single-Row Side-Locking Electrical Connector
Additional Notes)
J103 - × × × × SY×
① ② ③ ④ ⑤ ⑥
① Main Designation: J103
② Number of Contacts: 2～18
③ Connector Type: T - Plug; Z - Socket
④ Contact Category: J - Pin; K - Jack (TJ and ZK are fixed mating pairs)
⑤ Contact Form: N - Straight PCB Mount; W - Right-Angle PCB Mount; H - Soldered; No marking - Crimped
⑥ Mounting Position of Locking Accessories:
Note: Supplementary Explanation - Supplementary explanation is not part of the ordering mark. When selecting, customers shall indicate crimped wire requirements in parentheses (e.g., conductor cross-sectional area, length, color, etc.); provide a wiring diagram if the wiring relationship is complex.
Marking Example: J103-6TJSY4 (Wire: AFR-250-0.12mm², Length: 500mm)
This marking indicates a single-row side-locking electrical connector plug with 6 contacts, pin-type contacts, locking accessories mounted at Hole No.4, and crimped termination; the required wire specification is AFR-250, conductor cross-sectional area is 0.12mm², and the lead wire length shall not be less than 500mm.

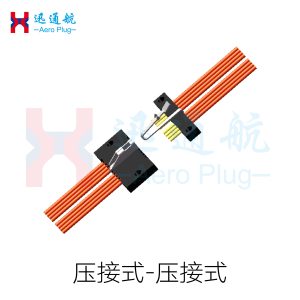

Single-Row Side-Locking Electrical Connector with Mounting Holes.
(Additional Notes)
J103K - × × × × SY×
① ② ③ ④ ⑤ ⑥
① Main Designation: J103K
② Number of Contacts: 2～18
③ Connector Type: T - Plug; Z - Socket
④ Contact Category: J - Pin; K - Jack (TJ and ZK are fixed mating pairs)
⑤ Contact Form: N - Straight PCB Mount; W - Right-Angle PCB Mount; H - Soldered; No marking - Crimped
⑥ Mounting Position of Locking Accessories:
Note: Supplementary Explanation - Supplementary explanation is not part of the ordering mark. When selecting, customers shall indicate crimped wire requirements in parentheses (e.g., conductor cross-sectional area, length, color, etc.); provide a wiring diagram if the wiring relationship is complex.
Marking Example: J103K-6TJSY4 (Wire: AFR-250-0.12mm², Length: 500mm)
This marking indicates a single-row side-locking electrical connector plug with mounting holes, featuring 6 contacts, pin-type contacts, locking accessories mounted at Hole No.4, and crimped termination; the required wire specification is AFR-250, conductor cross-sectional area is 0.12mm², and the lead wire length shall not be less than 500mm.

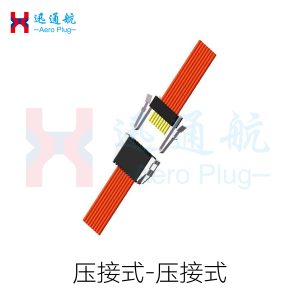

Single-Row Double-End-Locking Electrical Connector
(Additional Notes)
J103B - × × × × ×
① ② ③ ④ ⑤ ⑥
① Main Designation: J103B
② Number of Contacts: 2～18
③ Connector Type: T - Plug; Z - Socket
④ Contact Category: J - Pin; K - Jack (TJ and ZK are fixed mating pairs)
⑤ Contact Form: N - Straight PCB Mount; W - Right-Angle PCB Mount; H - Soldered; No marking - Crimped
⑥ Mounting Position of Locking Accessories: Note: Supplementary explanation - Supplementary explanation is not part of the ordering mark. When selecting, customers shall indicate crimped wire requirements in parentheses (e.g., conductor cross-sectional area, length, color, etc.); provide a wiring diagram if the wiring relationship is complex.Marking Example:
J103B-6TJS (Wire: AFR-250-0.12mm², Length: 500mm)Explanation of the Marking: This marking indicates a single-row double-end-locking electrical connector plug with 6 contacts, pin-type contacts, locking accessories mounted at both ends of the base, and crimped termination; the required wire specification is AFR-250, conductor cross-sectional area is 0.12mm², and the lead wire length shall not be less than 500mm.

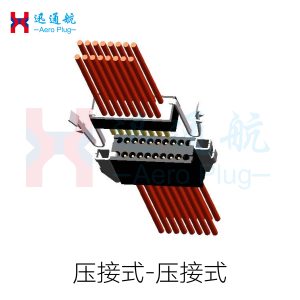

Double-Row Double-End-Locking Electrical Connector
Additional Notes
J103D - × × × × ×
① ② ③ ④ ⑤ ⑥
① Main Designation: J103D
② Number of Contacts: 2～18
③ Connector Type: T - Plug; Z - Socket
④ Contact Category: J - Pin; K - Jack (TJ and ZK are fixed mating pairs)
⑤ Contact Form: N - Straight PCB Mount; W - Right-Angle PCB Mount; H - Soldered; No marking - Crimped
⑥ Mounting Position of Locking Accessories:
S1: Positioned at the head and tail holes of Row 1;
S2: Positioned at the head and tail holes of the other row; S3: Positioned at the No.1 and last holes;
S4: Positioned at the No.1, last holes and the head hole of the other row
Note: Supplementary Explanation - Supplementary explanation is not part of the ordering mark. When selecting, customers shall indicate crimped wire requirements in parentheses (e.g., conductor cross-sectional area, length, color, etc.); provide a wiring diagram if the wiring relationship is complex.
Marking Example: J103D-6TJS1 (Wire: AFR-250-0.12mm², Length: 500mm)Explanation of the Marking: This marking indicates a double-row double-end-locking electrical connector plug with 6 contacts, pin-type contacts, locking accessories mounted at the head and tail holes of Row 1, and crimped termination; the required wire specification is AFR-250, conductor cross-sectional area is 0.12mm², and the lead wire length shall not be less than 500mm.
