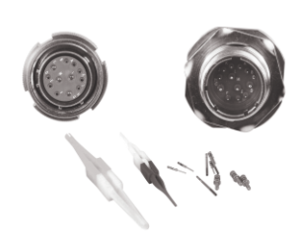

Product Designation Code

XTH J599/ 20 W B 35  P N
 ①      ②     ③ ④ ⑤ ⑥ ⑦ ⑧

1—Enterprise Designation of Shenzhen Xuntonghang Electronic Technology Co., Ltd.
2—Basic Serial Number
3—Shell Type:

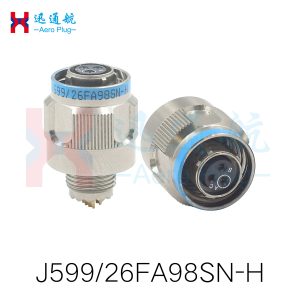

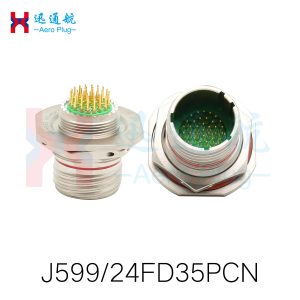

20-Square Flange Receptacle; 24-Nut-Secured Receptacle; 26-Shielded Plug
4—Plating:
W-Cadmium Plated (Military Green); F-Electroless Nickel Plated; S-Copper-Nickel Plated; K-Stainless Steel Passivated

5—Shell Size: A-J 09 11 13 15 17 19 21 23 25
                             A   B   C   D  E   F   G   H  J

6—Contact Arrangement: See "Contact Arrangement Diagram" for details

7—P-Crimp Pin (500 Mating Cycles); PH-Soldered Pin; PC-Short PCB Pin; PL-Long PCB Pin;
H-Crimp Pin (1500 Mating Cycles); HH-Soldered Pin; HC-Short PCB Pin; HL-Long PCB Pin;
S-Crimp Socket (500 Mating Cycles); SH-Soldered Socket; SC-Short PCB Socket; SL-Long PCB Socket;
J-Crimp Socket (1500 Mating Cycles); JH-Soldered Socket; JC-Short PCB Socket; L-Long PCB Socket;
CD-External Pin/Internal Socket, Flange Outside Cabin (Feedthrough Receptacle);
DC-External Socket/Internal Pin, Flange Outside Cabin (Feedthrough Receptacle)
8—Keying: N-Standard Keyway (A, B, C, D); E-Alternate Keyway
9—T-Represents Nut-Tightened Receptacle with Double Flat Milling (Not Marked for Standard Models)
Notes: 1. Except for the different main designations, the model naming of GJB599A (National Military Standard) and MIL-DTL-38999K (U.S. Military Standard) is identical. The main designation of GJB599A is "JY", and that of MIL-DTL-38999K is "MS"; the two are interchangeable and compatible.
2. Identification Numbers A and B indicate that the electrical connector uses non-standard contacts different from GJB1611 (such as shielded, coaxial, fiber optic contacts, etc.). Such contacts need to be ordered separately; specific models and specifications are shown in "Special Contacts for GJB599 Series III".
3. For information on compatible sealing caps, rear accessories, and square flange gaskets of this series, see Pages 71-84.
